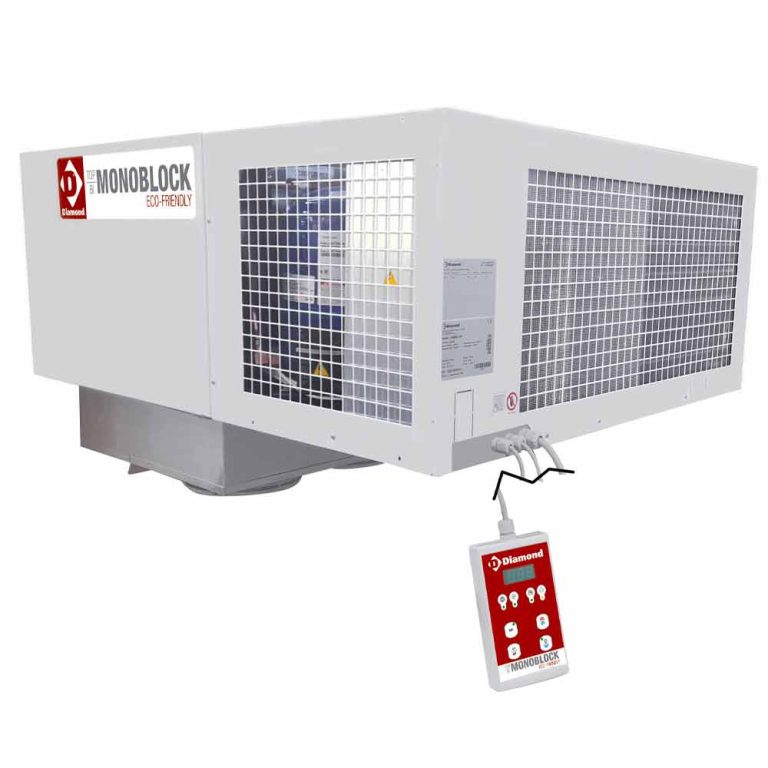

CEILING COLD GROUP SN170M-2L
- Cooling capacity 895 (W/f) for chamber volume 5,7 m³ / 5700 Lit (T° internal -20° C & T° external +32° C).
- Refrigerant expansion by thermostatic valve.
- Supplied with a cable for the connection of the door heater.
- Ceiling” refrigeration units.
- All units are supplied as standard with a high pressure switch and KVL valve as well as cables for door and light micro-switches.
- Separate control panel, connected to the unit by a 5m cable, control of the functions by microprocessor with touch-sensitive keys.
- Automatic hot gas defrosting with self-evaporation, as well as an overflow, water drain located below the evaporator. The evaporator drain pipe is equipped with a resistance to prevent ice formation.
- Unit certified in climatic class 5 (40°C Temperature – 40% Humidity).
- Refrigerant gas R452a.
- Window lights delivered as standard with a micro-switch for the door.
INFO:
- Attention: As standard, the ideal ambient operating temperature must not be lower than 10°C.
- If this is not the case, the following must be provided: compressor preheating (S-PR-R), a pressure switch for the condenser fan (S-PVC-R) and a heated electrical panel (S-TEC-R).
- In this case, the operating temperature cannot be lower than -5°C.
- The unit must be protected from the weather when installed outdoors.
PLUS:
- “Extra-flat” unit for easy installation.
- Easily removable panels for easy access in case of intervention.
- All units are supplied with a high pressure switch as standard. The negative groups are equipped with a thermostatic valve.
