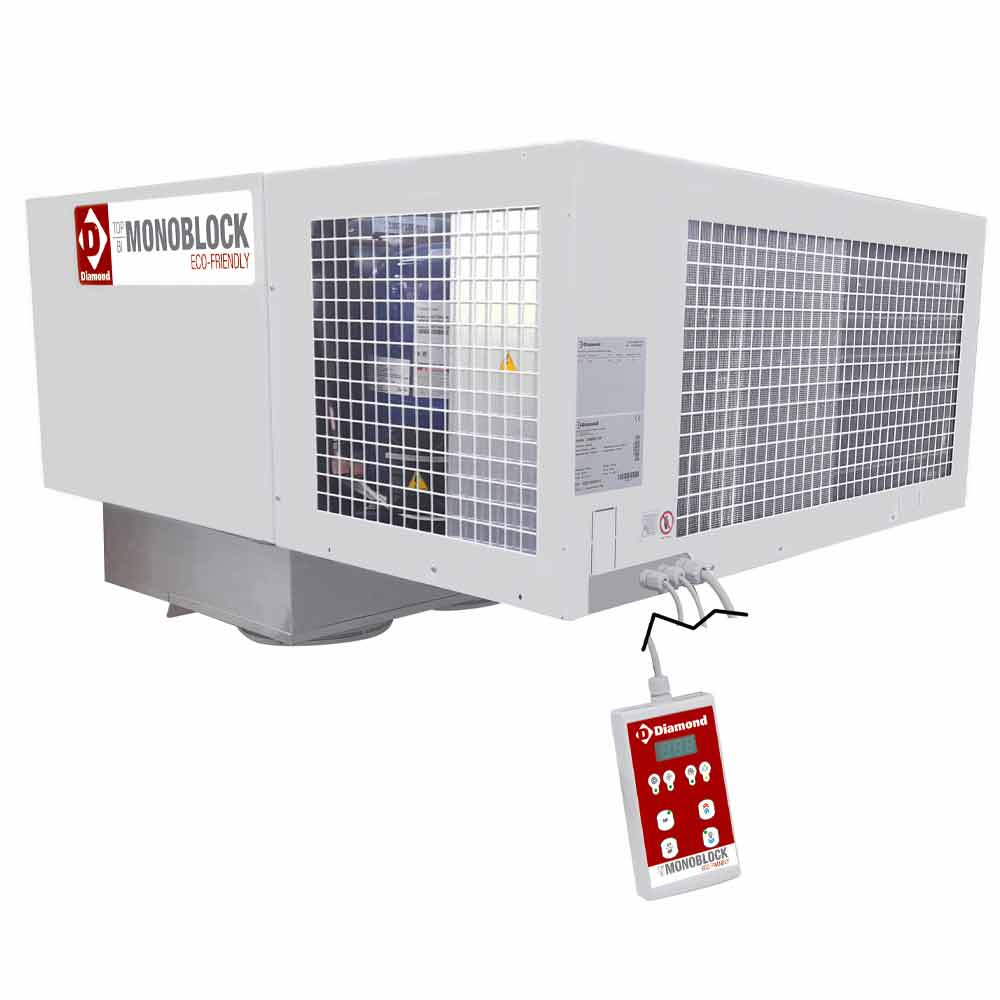

CEILING COLD GROUP SP122M-3H

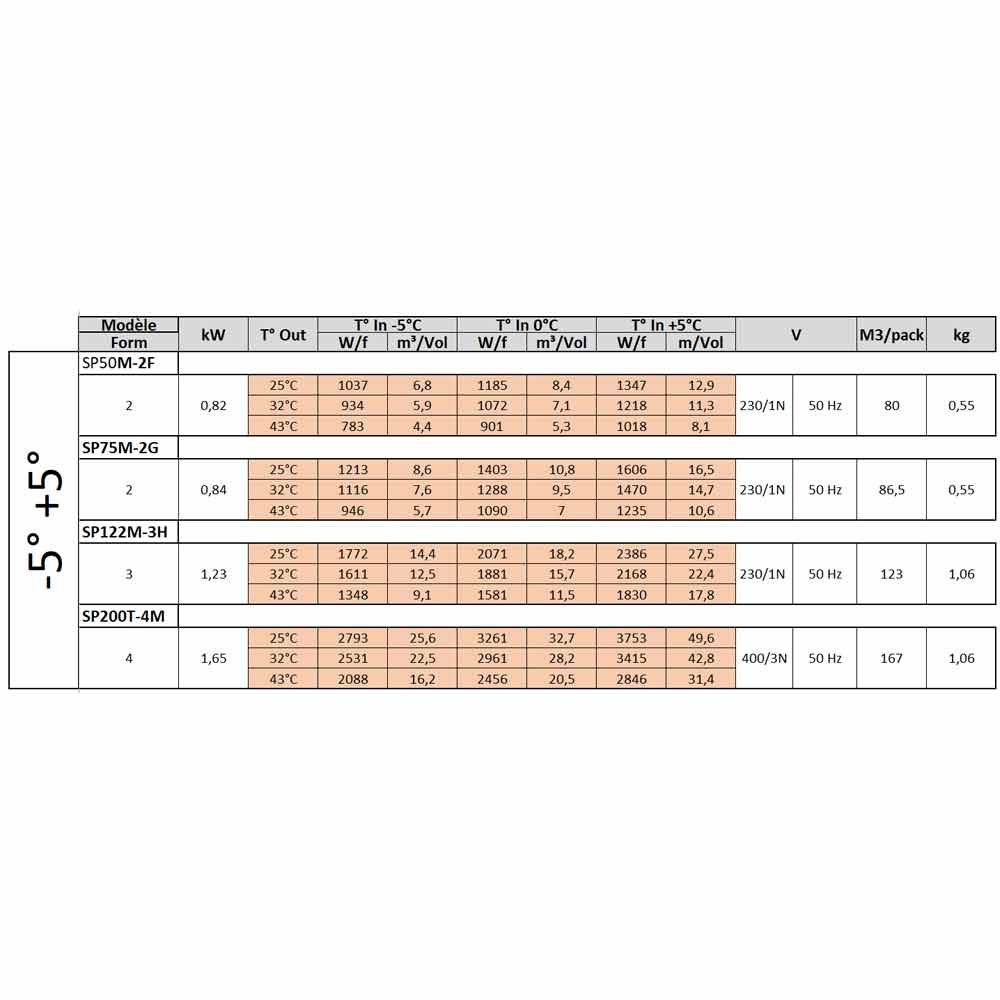

- Cooling capacity rendered 1881 (W/f) for chamber volume 15,7 m³ / 15 700 Lit. (T° internal 0° C & T° external +32° C).
- Refrigerant expansion by capillary.
- Ceiling” refrigeration units.
- All units are supplied as standard with a high pressure switch and KVL valve as well as cables for door and light micro-switches.
- Separate control panel, connected to the unit by a 5m cable, control of the functions by microprocessor with touch-sensitive keys.
- Automatic hot gas defrosting with self-evaporation, as well as an overflow, water drain located below the evaporator.
- The evaporator drain pipe is equipped with a resistance to prevent ice formation.
- Unit certified in climatic class 5 (40°C Temperature – 40% Humidity).
- Refrigerant gas R452a.
- Window lights delivered as standard with a micro-switch for the door.
INFO:
- Attention: As standard, the ideal ambient operating temperature must not be lower than 10°C.
- If this is not the case, the following must be provided: compressor preheating (S-PR-R), a pressure switch for the condenser fan (S-PVC-R) and a heated electrical panel (S-TEC-R). In this case, the operating temperature cannot be lower than -5°C.
- The unit must be protected from the weather when installed outdoors.
PLUS:

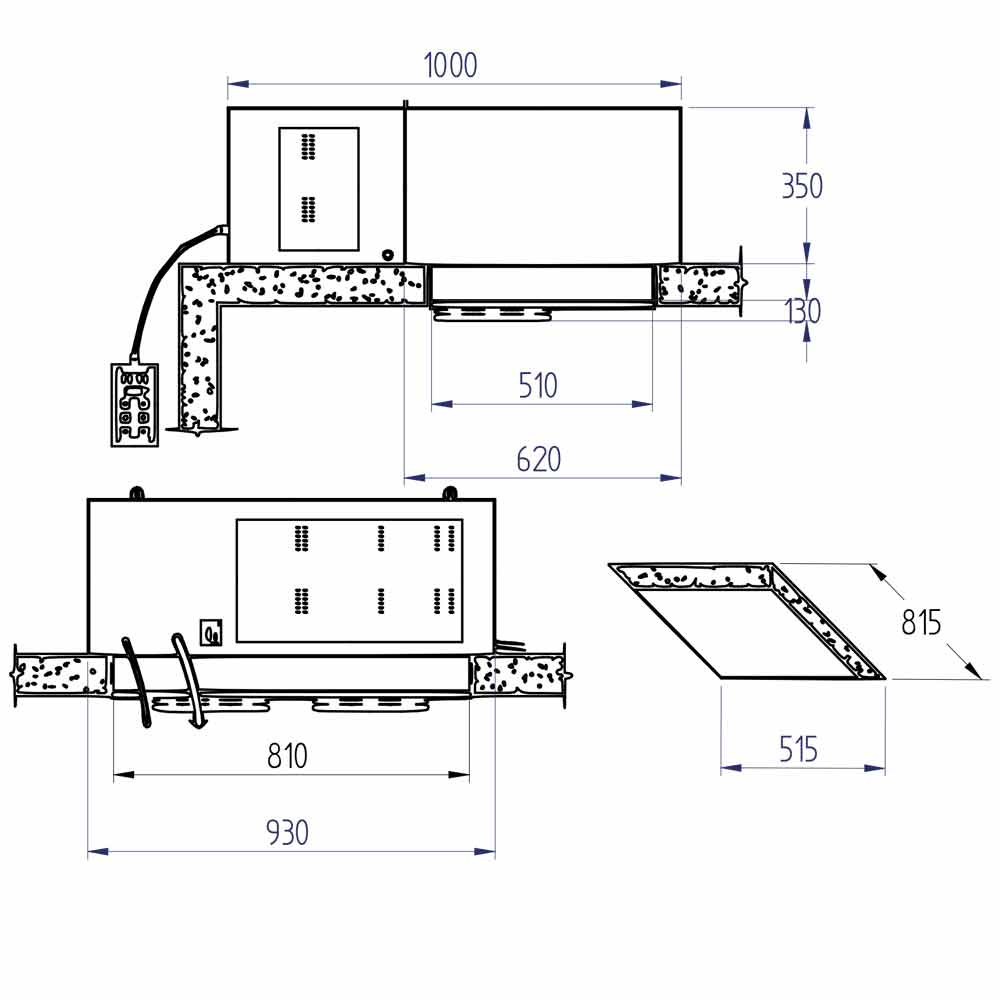

- “Extra-flat” unit for easy installation.
- Easily removable panels for easy access in case of intervention.
- All units are supplied with a high pressure switch as standard.
- The negative groups are equipped with a thermostatic valve.
