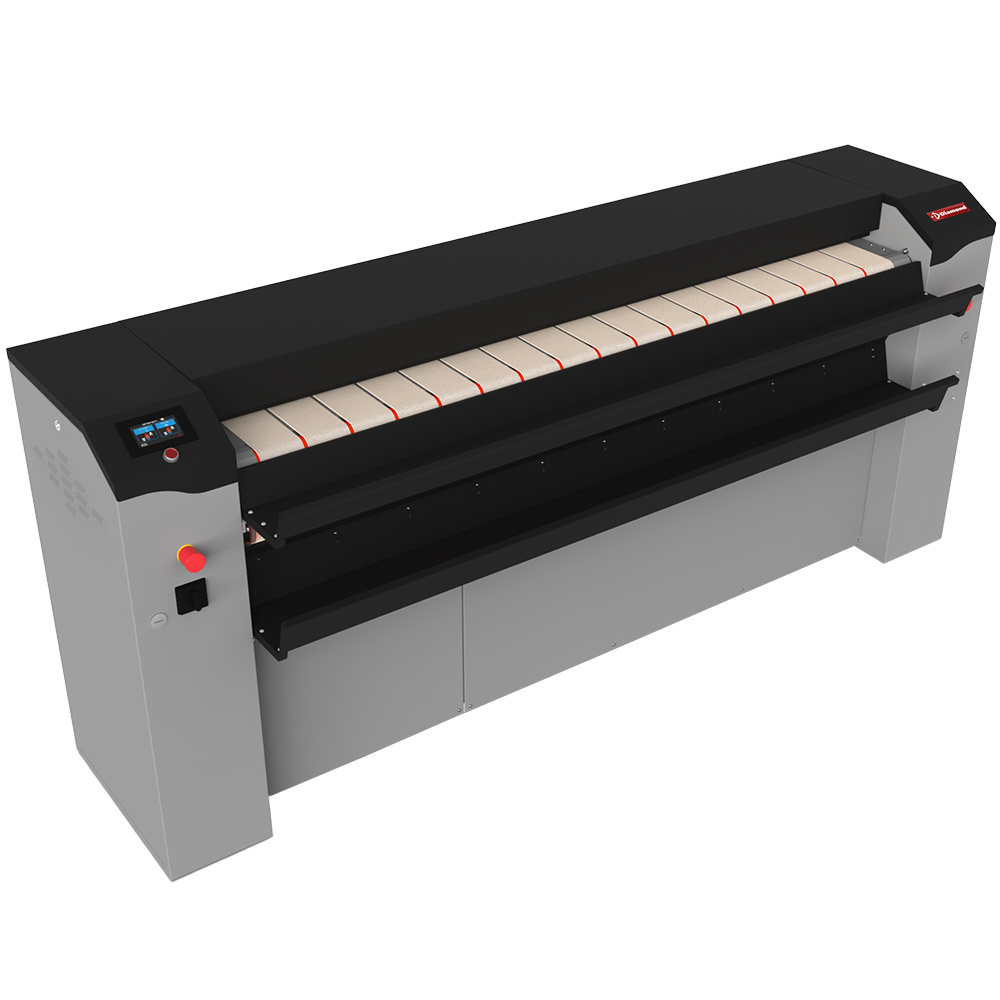

DRYER-IRONER + ASPIRATION DSR154/33A-TS/N
- Professional dryer-ironer designed to dry and iron damp laundry in a single operating cycle.
- Working width of 1504 mm and main cylinder diameter of 330 mm.
- Hourly output of 34 kg with laundry at 50% residual moisture and the entire working width of the cylinder in use.
- Maximum water evaporation capacity of 17 L/h.
- Integrated aspiration system efficiently removes moist air generated during drying and ironing.
- Electrically heated main cylinder made of chrome-plated steel ensures efficient heat transfer and consistent results.
- Nomex ironing belts offer excellent resistance to high temperatures, flames, chemicals, and long-term mechanical stress.
- Laundry remains in contact with the heated cylinder across 84% of its circumference, increasing drying and ironing efficiency.
- 4.3″ touchscreen control panel.
- Clear function display and multilingual menu.
- Memory for 15 editable programs.
- Operating parameters can also be adjusted during an active cycle.
- Electronic ironing speed control via frequency inverter.
- Automatic speed adjustment according to cylinder temperature and residual moisture of the laundry.
- Continuously adjustable ironing speed from 1 to 6 m/min.
- “Cool Down” system gradually cools the cylinder, reduces energy consumption, and protects the ironing belts against premature wear.
- Finger safety guard for safe stopping of the cylinder.
- Two mushroom-type emergency stop buttons positioned on the left and right sides of the machine.
- Safety bar for immediate machine shutdown included as standard.
- Removable cover provides easy access for cleaning and regular maintenance.
- Robust steel frame with a durable epoxy coating.
- Optional Wi-Fi connectivity for remote control via SR-COM accessory.
- Machine manufactured in compliance with all applicable EU standards.
PLUS:
- Working width: 1504 mm.
- Cylinder diameter: 330 mm.
- Hourly output: 34 kg/h.
- Maximum water evaporation capacity: 17 L/h.
- Ironing speed: 1–6 m/min.
- Maximum residual moisture of laundry: 50%.
- Laundry contact with cylinder: 84% of circumference.
- Moist air exhaust diameter: 100 mm.
- Moist air flow rate: 350 m³/h.
- Maximum counterpressure at moist air exhaust: 15 m.
- Noise level: 55 dB(A).
- Heat loss: 3%.
- Electric heating output: 20.7 kW.
- Total electrical input: 21.7 kW.
- Hourly energy consumption: 17.1 kWh.
- Power supply: 400/3N 50–60 Hz.
- Professional DIAMOND dryer-ironers dry and iron damp laundry in a single operating cycle.
- Processing laundry with residual moisture of up to 50% eliminates the need for complete pre-drying and helps streamline professional laundry operations.
- Heated chrome-plated steel cylinder combined with Nomex ironing belts ensures efficient heat transfer, high evaporation capacity, and consistent results.
- Large contact surface, with laundry wrapping around 84% of the cylinder circumference, extends heat exposure and increases drying and ironing efficiency.
- Automatic speed adjustment according to temperature and moisture adapts the operating process to current conditions and helps maintain consistent results.
- Touchscreen controls, editable programs, and the ability to change parameters during a cycle allow precise adjustment according to the type and moisture level of the laundry.
- “Cool Down” system saves energy and protects the ironing belts against damage caused by excessive residual heat.
- Integrated aspiration removes moisture from the working area and contributes to more efficient and comfortable laundry operation.
- Machine is suitable for professional laundries, hotels, guesthouses, resorts, hospitals, healthcare facilities, social care facilities, restaurants, and catering operations.
