ELECTRIC FRY TOP RIBBED E7/PR4T-N

Ribbed plate. Useful dimensions of the cooking surface 330 x 540 mm, 17.85 dm2.
Made of stainless steel AISI 304, adjustable jacks. Deep-drawn top (15/10 mm) in stainless steel AISI 304, waterproof “IPX5”.

Manufacturer:

Available in

2-3 days

Dimensions (mm)

400 x 700(730) x 250/320

Power (kW)

5

Power supply

400-230/3N 50-60Hz

Weight (kg)

36

Volume (m3)

0,19

Series

Diamond Silver

Quality class

Top class

Packaging of goods

On a pallet with cardboard cover

Warranty

12 months

Country of origin

Italy

HS code:
84198998

1 405

excluding VAT

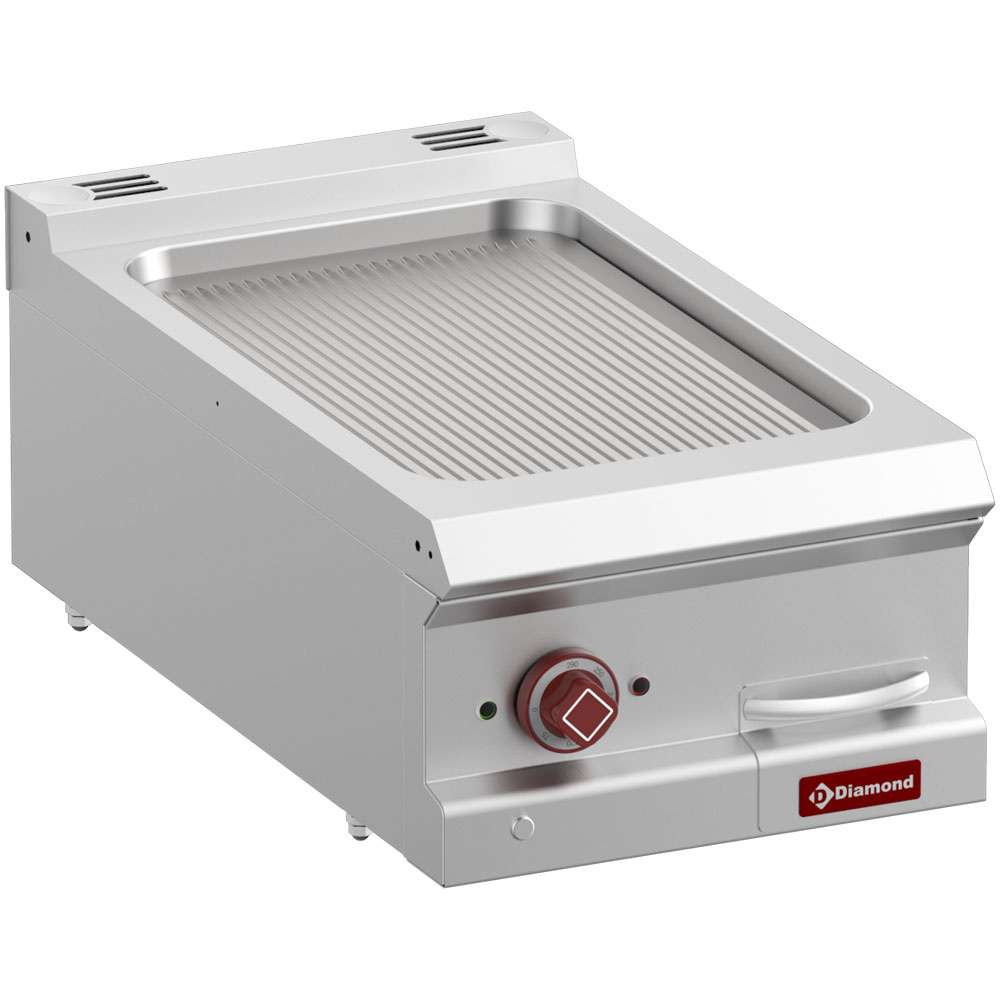

ELECTRIC FRY TOP RIBBED   E7/PR4T-N

  • Useful dimensions of the cooking surface 330 x 540 mm, 17.85 dm2.
  • Made of stainless steel AISI 304, adjustable jacks.
  • Deep-drawn top (15/10 mm) in stainless steel AISI 304, IPX5 water resistance.
  • Rear chimney in stainless steel AISI 304.
  • Cast-iron cooking plate (15mm) with high thermal conductivity completely welded to the top, inclined at the front.
  • Anti-splash edge on 3 sides (see A7/PS…).
  • A juice collection drawer is positioned on the front panel of the appliance.
  • Electric heating by means of stainless steel heating elements placed under the plate itself.
  • Temperature regulation from 50°C to 300°C, by thermostat.

PLUS:

  • Possibility of 700+700 “BACK to BACK” or in combination with the new OPTIMA 900 EVO 700+900 range.
  • Upper tablet in 15/10 mm thick AISI 304 stainless steel, front edge with drip stop, deep-drawn, watertight tops, rounded corners on the inside of the tanks, ‘high technology’ quality components.
  • A perfect finish, with attention to detail and superb design. A perfect alignment and easy “HEAD to HEAD” module connection.
Available in

2-3 days

Dimensions (mm)

400 x 700(730) x 250/320

Power (kW)

5

Power supply

400-230/3N 50-60Hz

Weight (kg)

36

Volume (m3)

0,19

Series

Diamond Silver

Quality class

Top class

Packaging of goods

On a pallet with cardboard cover

Warranty

12 months

Country of origin

Italy

HS code
84198998
