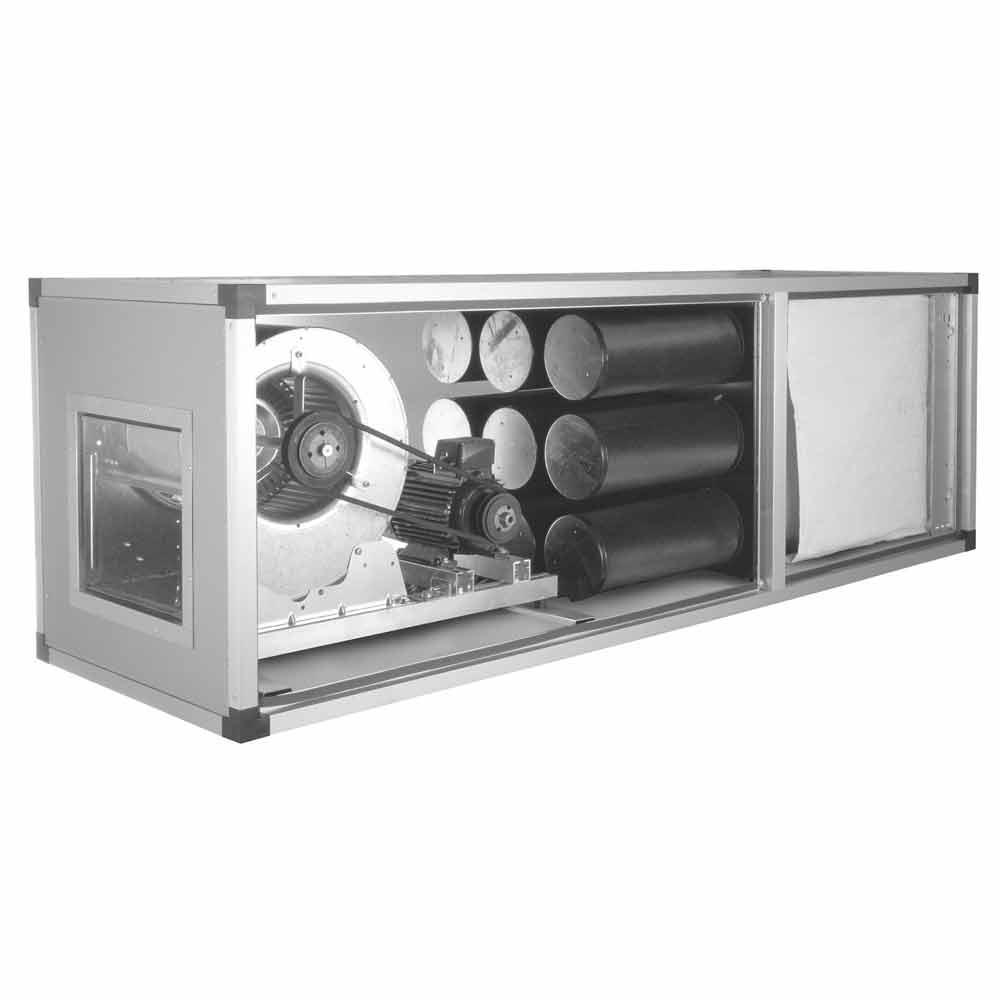

EXTRACTION GROUP GF30-2V
- 2600m³/h, 2 speed level.
- Profile frame in aluminium.
- Panels with isolated double wall.
- Lateral inspection.
- Ventilator with belt drive, 2 speed levels.
- 3 double filtering.
- NB For this filter box, electric box Ref : CF-MET/1T
Aluminium profiled structure side panels made of plastified sheet zinc
Panels double walled, easy to remove
Head and sound insulation made of polyurethane
Double inlet centrifugal fan with transmision motor 2 speed IP55 400/3/50 assembled on belt-stretcher slides, matched to the fan whell through pulleys and belts, and vibrating supporters
Synthetics filters efficacy 85% gravimetric (G3) class EN-779
Bag filters efficacy 85% metric-colour (F7) classe EN-779
Implemented activated carbon filters E207
