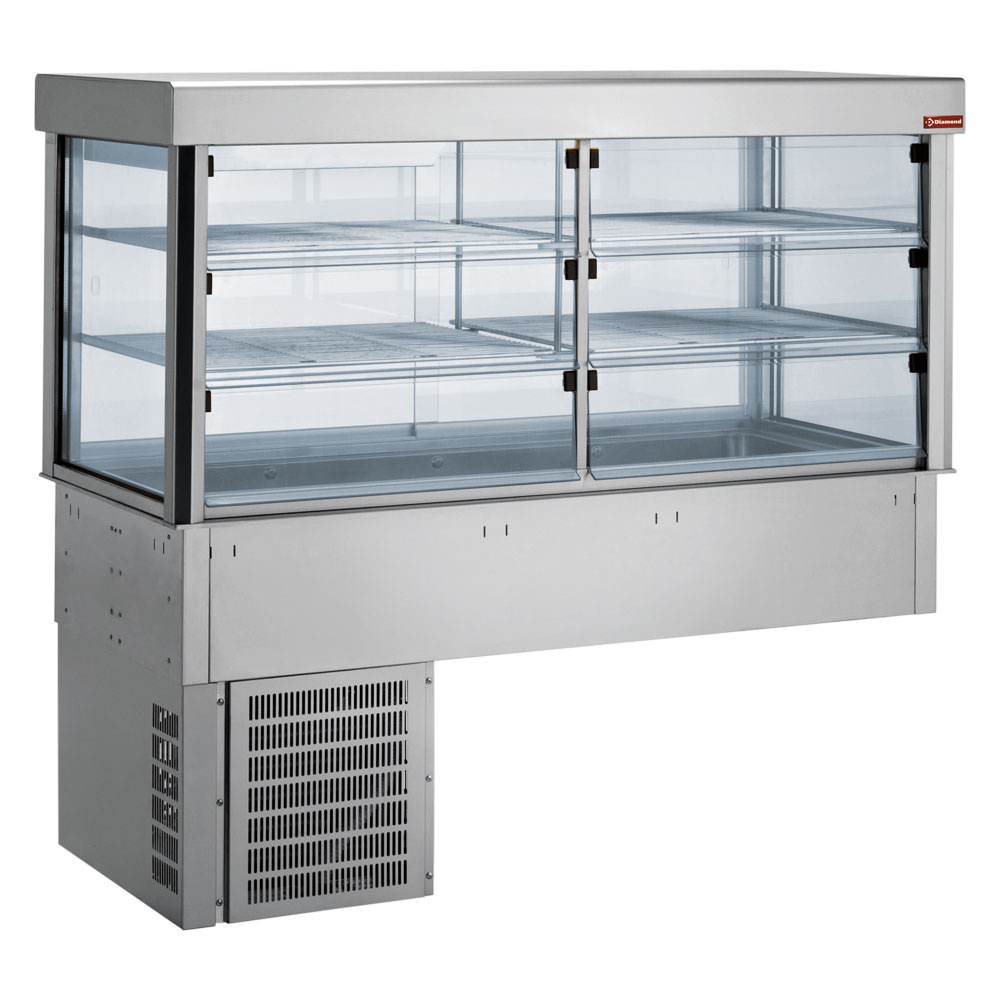

REFRIGERATED DISPLAY AND REFRIGERATED BASIN 4xGN 1/1 IN/RCTV15-R2
- Their function is the conservation and display of cold foods and drinks.

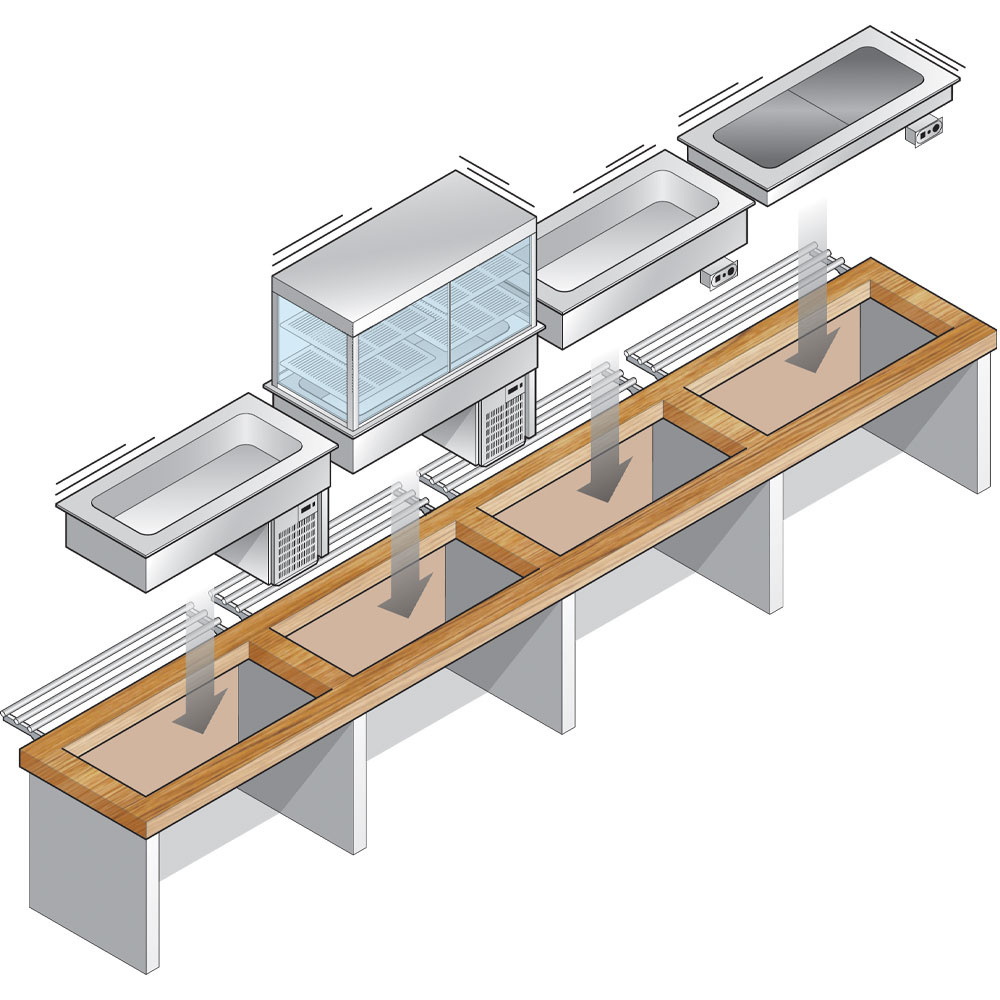

- The range is composed of 8 models with a length of 1135 or1455 mm, permanently installed on a refrigerated top or basin.
- The showcase comes with 2 grille shelves in stainless steel AISI 304 for plates or bowls.
- Bottles are placed in the basin.
- Construction in stainless steel AISI 304 and safety glass with sliding doors on operator side, non-thermal glass on the sides and top-hinged doors in polycarbonate on the customer side.
- Side top in stainless steel AISI 304 1.5 mm, reinforced.
- Operation with refrigerant group with R290.
- Digital temperature control complete with management and programming of defrosts (for group shutdown), condensation collection tray under the group for top and Showcase.
- Showcase with ventilated evaporator and basin/top refrigerated statically with coil.
- Refrigerated basin curved on all sides for easy cleaning; insulated with condensation drained to removable container; temperature attainable in basin +4°/+10° C.
- Refrigerated top with curved condensation container; Plastic support mat; Static refrigeration with contact coil; Temperature attainable on refrigerated top -10°/-3° C.
- Superior top 1.5mm, rounded edge.
- Pressed 20 mm deep for dimensions GN.
- Display with 2 shelves, sliding doors on service side and hinged doors on customer side.
- Made in stainless steel AISI 304.
- Built in hermetic unit.
- Drip tray for condensation under unit.
- Attention: plan an evacuation to the network (auto-evaporation of the condensate in option: see IN/AEC).
