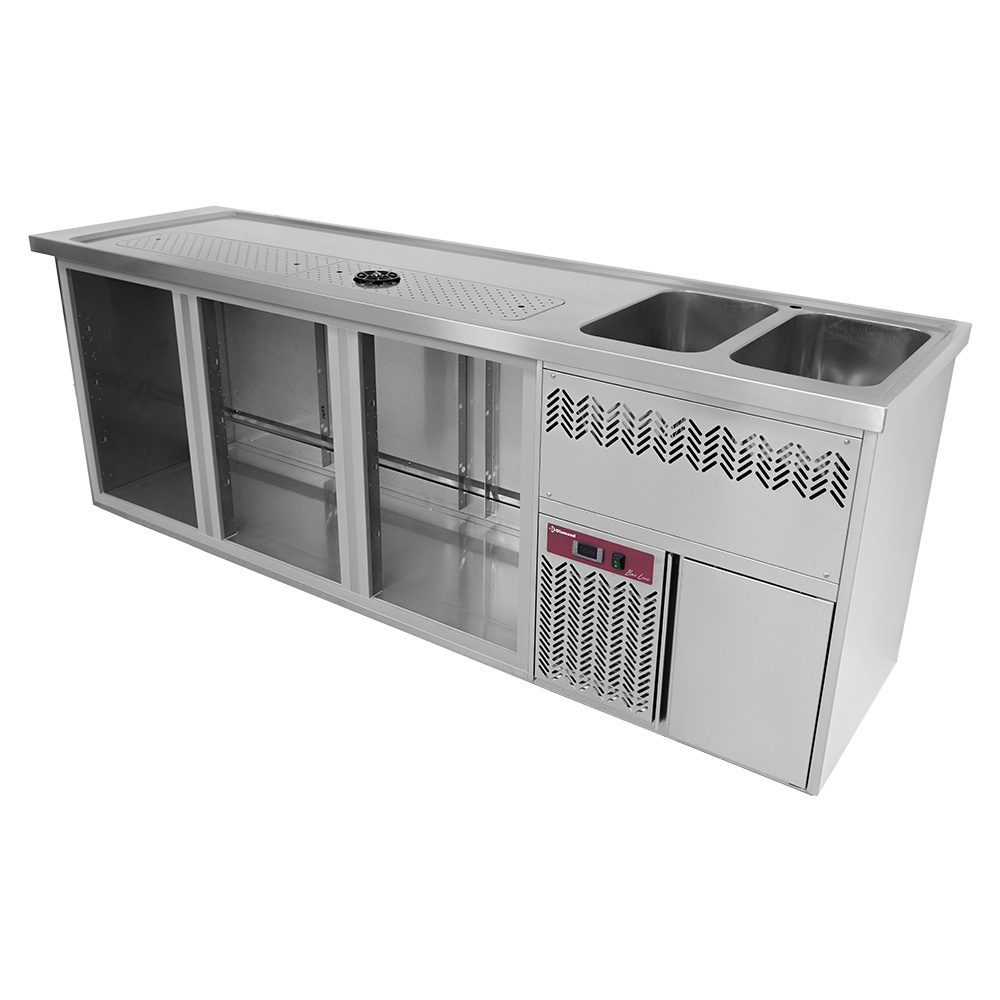

REFRIGERATED BAR COUNTER WITH 2 SINKS KBR/32D
- Refrigerated bar counter with 3 refrigerated compartments, two sinks on the right-hand side, and a drip tray with grid and glass rinser.
- Energy efficiency class E.
- Capacity 555 L.
- Operating temperature +2 to +8 °C.
- Condensing unit positioned on the right-hand side.

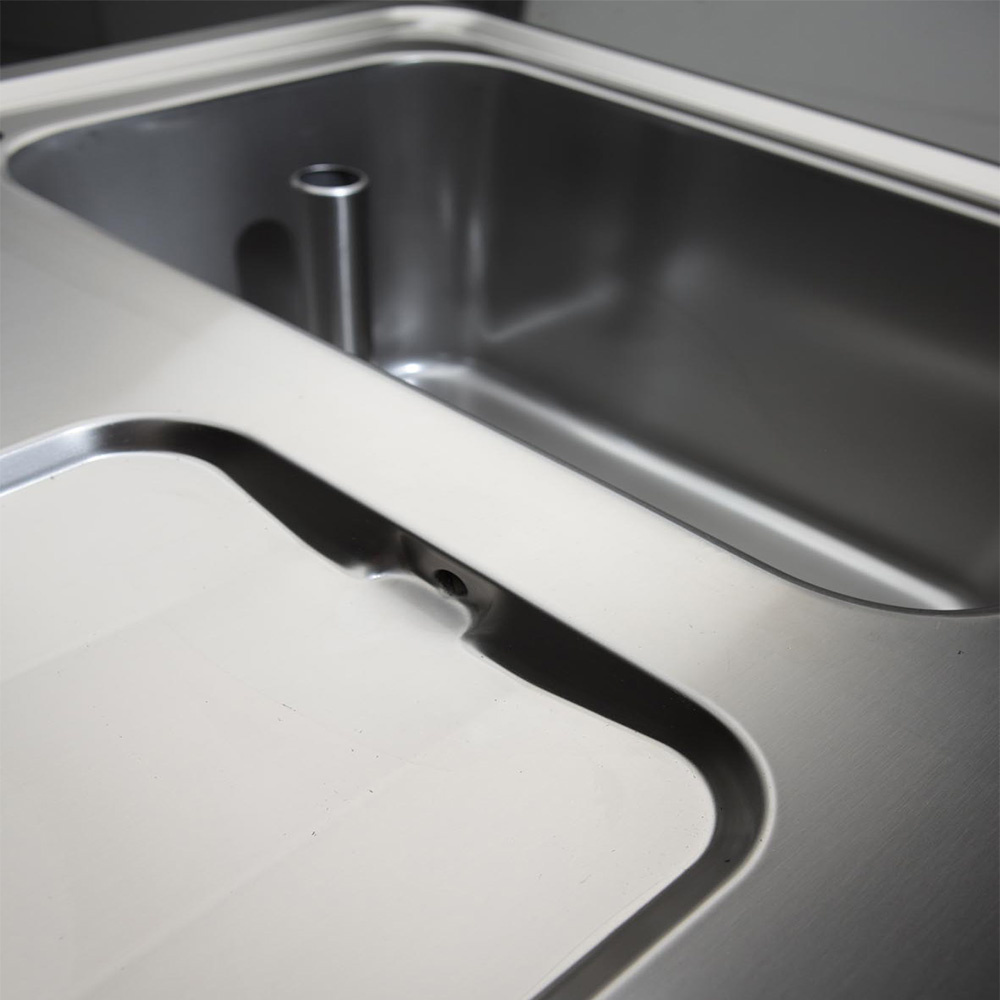

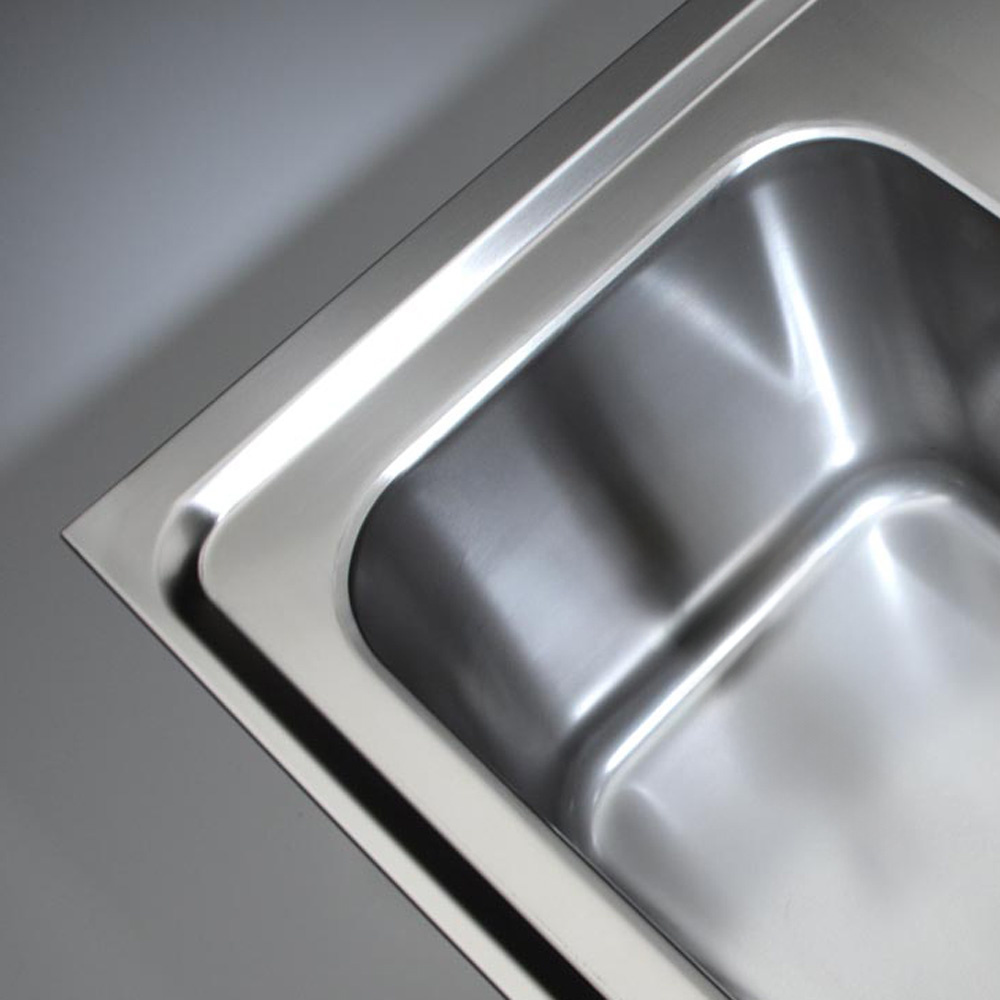

- Two sinks on the right-hand side, each measuring 300 × 500 × h 300 mm, with waste outlet and overflow.
- Bar counter designed for custom configuration with optional accessories such as doors, drawer units, and shelves.
- Interior and front made of AISI 304 stainless steel.
- Side panels made of AISI 430 stainless steel with Scotch-Brite finish, rear panel made of galvanized steel.

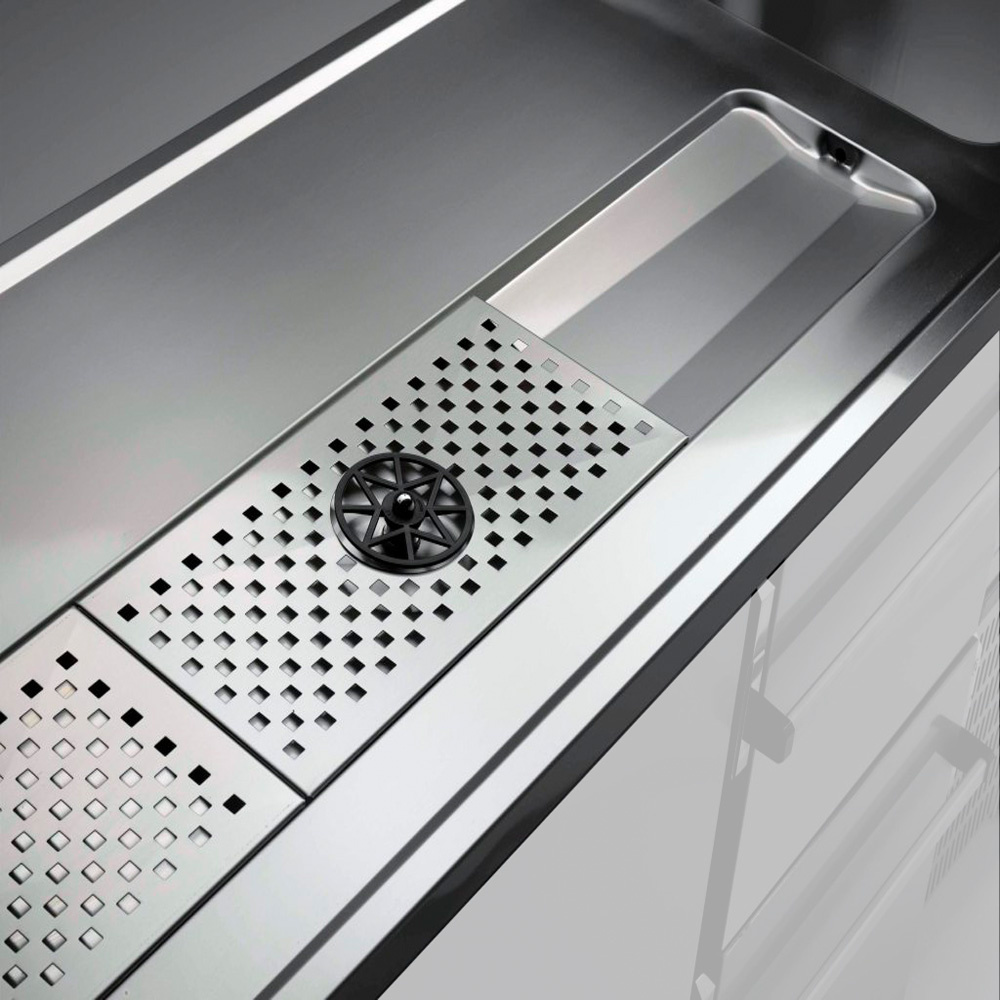

- Worktop made of AISI 304 stainless steel with raised perimeter edge, drip tray with grid, glass rinser, and two integrated sinks with waste outlets and overflows.
- Refrigerated storage compartment fitted with stainless steel support rails for flexible positioning of the shelf runners.
- Front access to the condensing unit facilitates inspection and servicing.
- Climate class 4 condensing unit, designed for operation at an ambient temperature of 30 °C and 55% relative humidity, built into the cabinet.
- Fan-cooled condenser.
- Refrigerant R455A.
- Evaporator with serpentine coil embedded in the rear wall.
- Expanded polyurethane insulation, CFC-free, thickness 50 mm.
- Fan-assisted refrigerated storage compartment.
- Automatic defrosting.
- Front control panel with main switch, electronic controller in an enclosed waterproof housing, and digital display.
- Manufactured in compliance with current CE regulations.
- Doors, drawer units, shelves, and other accessories available to order (see related products).
ADVANTAGE:
- Bar Line counter maximizes the available workspace and is suitable for installing a draft beverage system connected directly to a keg or to a remote refrigerated beverage line.
- The counter can be customized with a wide selection of drawer units, solid or glass doors, shelves, and other accessories.
EQUIPMENT OPTIONS:
- Refrigerated compartment with a solid or glass door: suitable for storing beer kegs up to 50 L or soft drinks.
- Drawer unit: ideal for organized storage of bottled beer and soft drinks.
