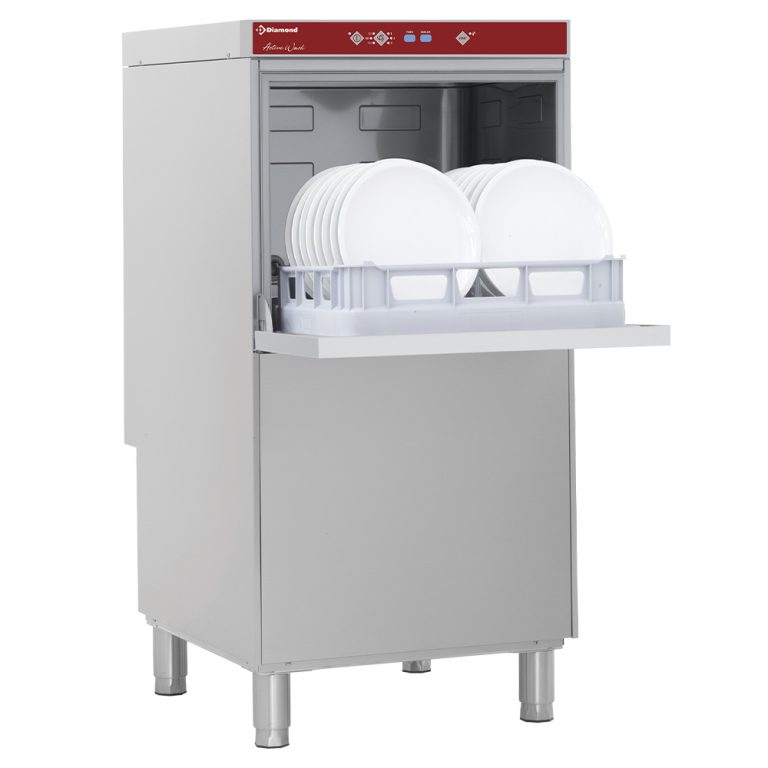

DISHWASHER 03D/6H
- High version, easier loading / unloading of baskets,…
- “Double-walled” Standard version.
- Load height 405 mm.
- From 60 till 24 baskets/hour, cycles 60” – 120” – 150″ or continuous.
- Plates 600×400, Basket 500×600 mm
- Rotating wash and rinse arms (upper and lower), lower in stainless steel
- Self-cleaning jets
- Tank (23 Lt., 2,1 kW) with rounded edges, “stamped” bottom
- “Stamped” double walled door, “removable” gasket
- Removable control panel
- Automatic filling of the tank
- Check valve
- Hot water rinse (2,5 Lt. water consumption per cycle), stainless steel boiler (with pressure, 7 Lit., 6/8 kW)
- Washing pump, self-draining and self-cleaning, 230V/1N 50Hz.
- Micro switch, when the door opens.
- Safety thermostat.
- Standard version: stainless steel AISI 304
- Standard : 1 basket for plates 500×600, 1 basket 500×500, 1 cup
- NB inclined structure, for desks (on request)
PLUS :
- Stamped basket runners, no roughness and no limescale.
- “Integral” tank filter in “cast” stainless steel
- “Peristaltic” dispenser of rinse product supplied as standard
- On request: “peristaltic” dosing kit of liquid detergent and drain pump kit
- “Patented” pump filter
- High output washing pump (double flux), which guarantees important energy savings, with “Soft start” device
- CSD digital control panel (soft touch)
- EED energy saving
- TCD Device which permits to always rinse at 80°C – CAD Self-cleaning cycle (semi-automatic)
- DRD accelerated preheating phase
- DID automatic diagnostic in case of problems
- ADD display of boiler and tank temperature (HACCP conform)
- CID door with automatic closure (Soft Contact)
- NB: machines guaranteed for “osmosis” water supply.
ADVANTAGE – SAVE THE PLANET :
- The last generation machinery, state-of-the-art technologies, energy-saving, energy-saving technologies, low consumption of energy, water and detergent, thanks to tank with larger capacity and its “patented” filter to keep the washing water at a good temperature , as well as a high efficiency wash pump (double flux).
