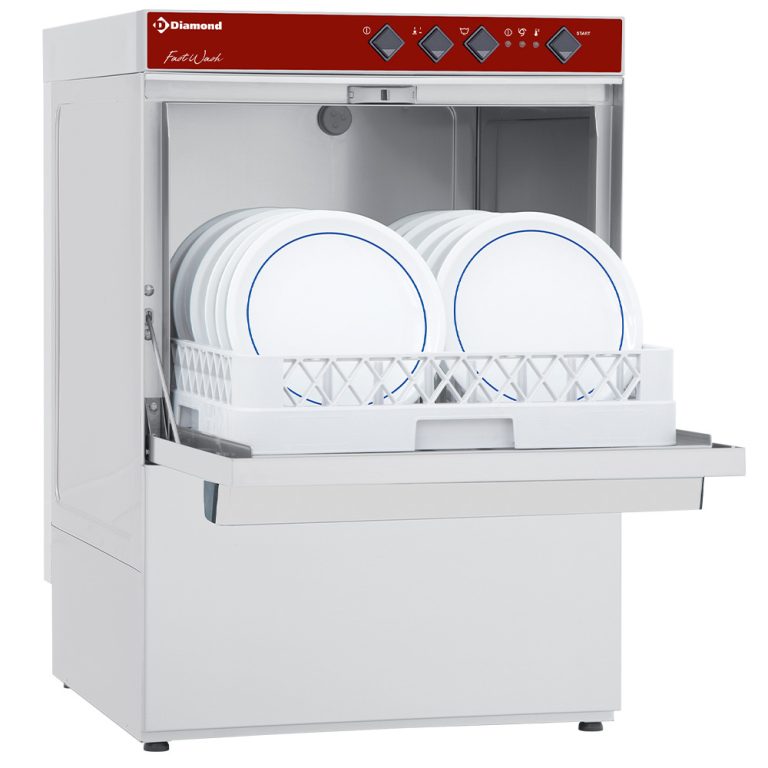

DISHWASHER DC502/6
- Basket 500 × 500 mm.
- Maximum plate loading height 365 mm.
- Maximum glass loading height 325 mm.
- Capacity 60 to 30 racks/hour.
- Wash cycles of 60 or 120 seconds.
- Rotating upper and lower wash and rinse arms.
- Self-cleaning nozzles.
- Tank capacity 20 L, heating element 2.1 kW, with rounded corners and deep-drawn base.
- Double-skinned deep-drawn door with removable watertight gasket.
- Deep-drawn side panels.
- Removable control panel.
- Automatic tank filling.
- Non-return valve.
- Hot water rinse, water consumption 2.4 L per cycle.
- Stainless steel pressure boiler, 6 L capacity, 4.9 kW.
- Microswitch stopping the cycle when the door is opened.
- Safety thermostat.
- Manufactured in AISI 304 stainless steel.
- Supplied with 2 racks and 1 cutlery container.
ADVANTAGES
- Stamped rack runners without sharp edges and without limescale build-up.
- Integral composite tank filter.
- Peristaltic rinse aid dispenser supplied as standard.
- Peristaltic detergent dispenser and drain pump kit available on request.
- Patented pump filter keeps wash water at the correct temperature for longer.
- TCD rinse system guarantees a constant rinse temperature of 85°C throughout the cycle.
- High-efficiency dual-flow wash pump for significant energy savings.
- Self-cleaning cycle.
- Suitable for use with reverse osmosis systems.
ADVANTAGES
- Latest-generation dishwasher with low water, energy and detergent consumption.
- Large 20 L tank improves washing efficiency and operational stability.
- Patented filtration system keeps wash water at the optimum temperature for longer.
- High-efficiency dual-flow wash pump reduces operating costs.
- Suitable for washing plates, glasses, cups and other catering utensils.
Version with built-in drain pump. Liquid detergent dispenser supplied as standard. Plate loading height Ø 365 mm (glass height 325 mm). From 60 to 30 baskets/hour, 2 cycles, 60''–120''. Rotating upper and lower wash and rinse arms. Self-cleaning nozzles.
