  • ELEKTROHERD 4 RUNDE PLATTEN
  • ELEK. BACKOFEN GN 2/1 UND ELEK. GRILL   E7/4PF7-N

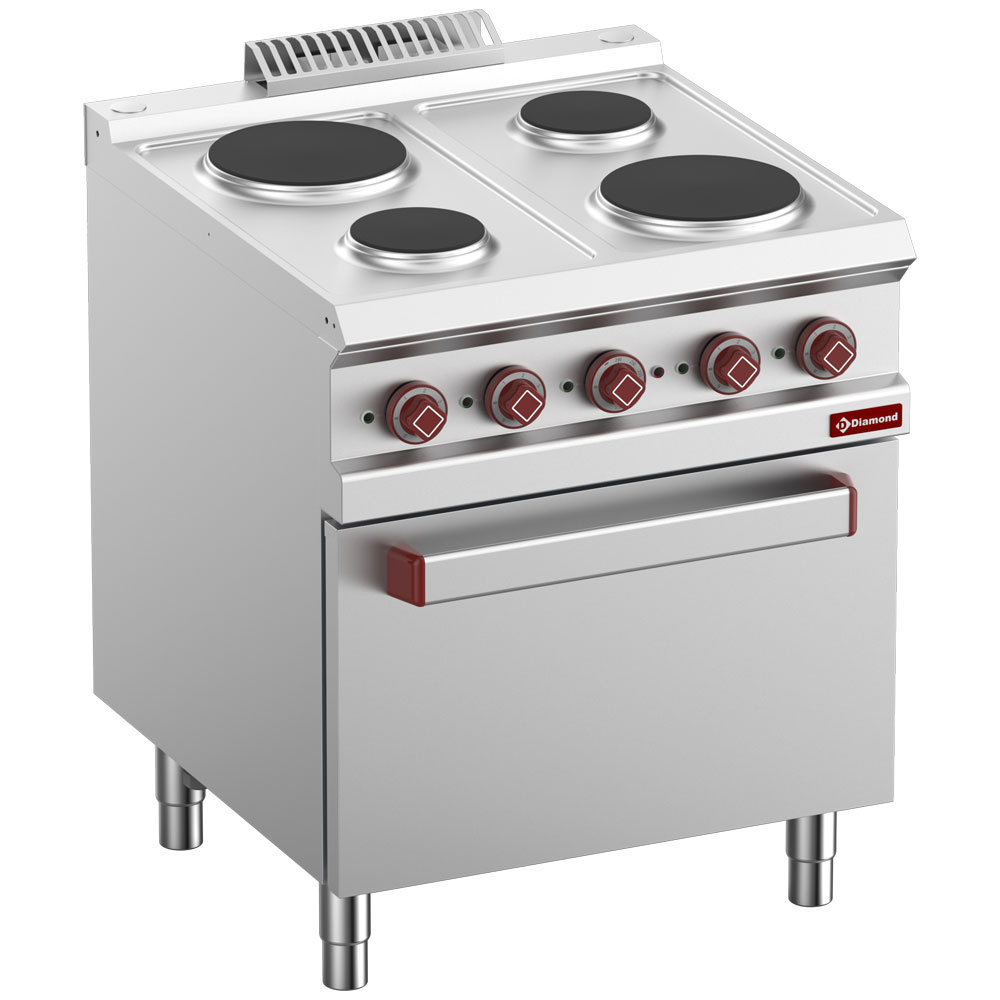

ELEC.COOK. 4 ROUND PLATES+ OVEN GN2/1+GRILL E7/4PF7-N

4 hobs (2x 1.5kW Ø 150mm and 2x 2.6kW Ø 220mm). Electric oven (5,3 kW) dim. 560x660xh310 mm, grill. Made of stainless steel AISI 304, stainless steel adjustable feet. GN 2/1 electric oven, heated by stainless steel heating elements, placed in the vault and under the oven floor. Oven temperature regulation from 125°C to 300°C, by thermostat.

Manufacturer:

Available in

2-3 days

Dimensions (mm)

700 x 700(730) x 850/920

Power (kW)

13,5

Power supply

400-230/3N 50-60Hz

Weight (kg)

90

Volume (m3)

0,73

Series

Diamond Silver

Quality class

Top class

Packaging of goods

On a pallet with cardboard cover

Warranty

12 months

Country of origin

Italy

HS code:
84199085

2 310

excluding VAT

ELEC.COOK. 4 ROUND PLATES + OVEN GN2/1+GRILL    E7/4PF7-N

  • 4 hobs (2x 1.5kW Ø 150mm and 2x 2.6kW Ø 220mm).
  • Electric oven (5,3 kW) dim. 560x660xh310 mm, grill.
  • Made of stainless steel AISI 304, stainless steel adjustable feet.

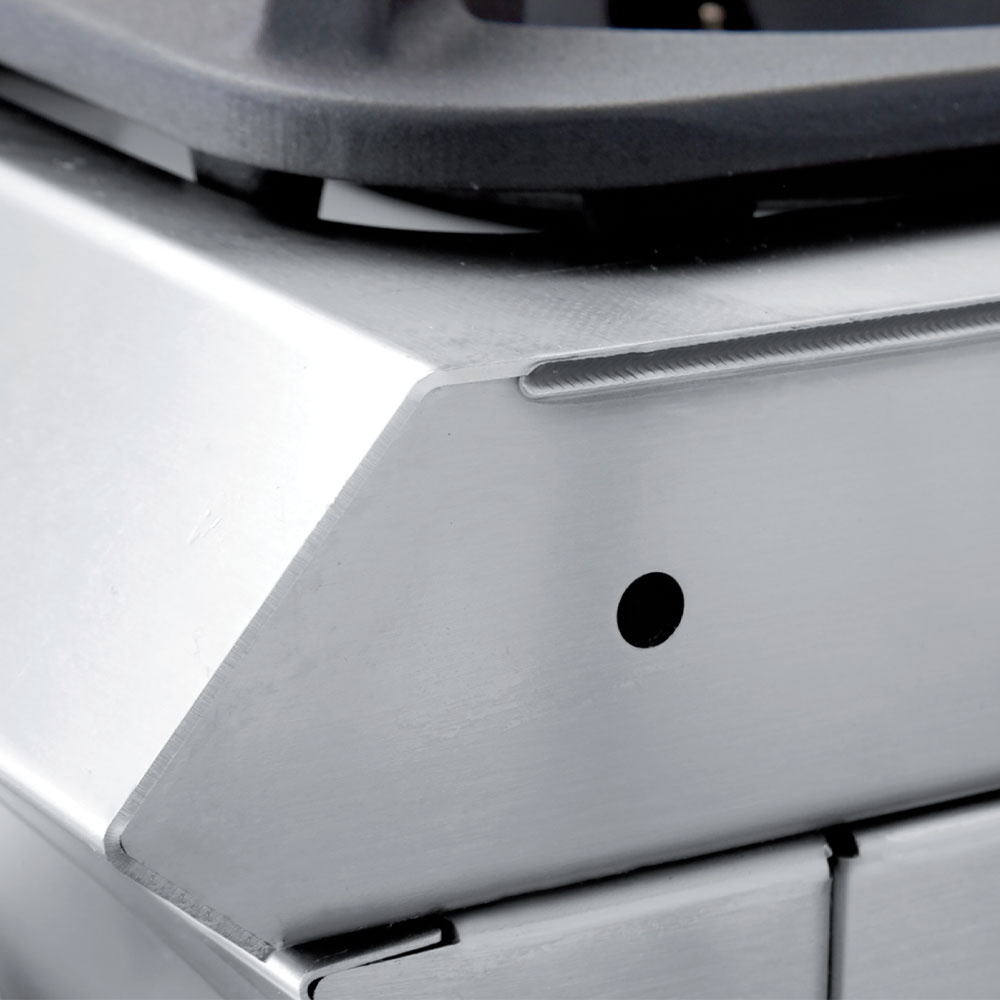

  • Pressed and watertight top (15/10 mm) in AISI 304 stainless steel, IPX5 water resistance.

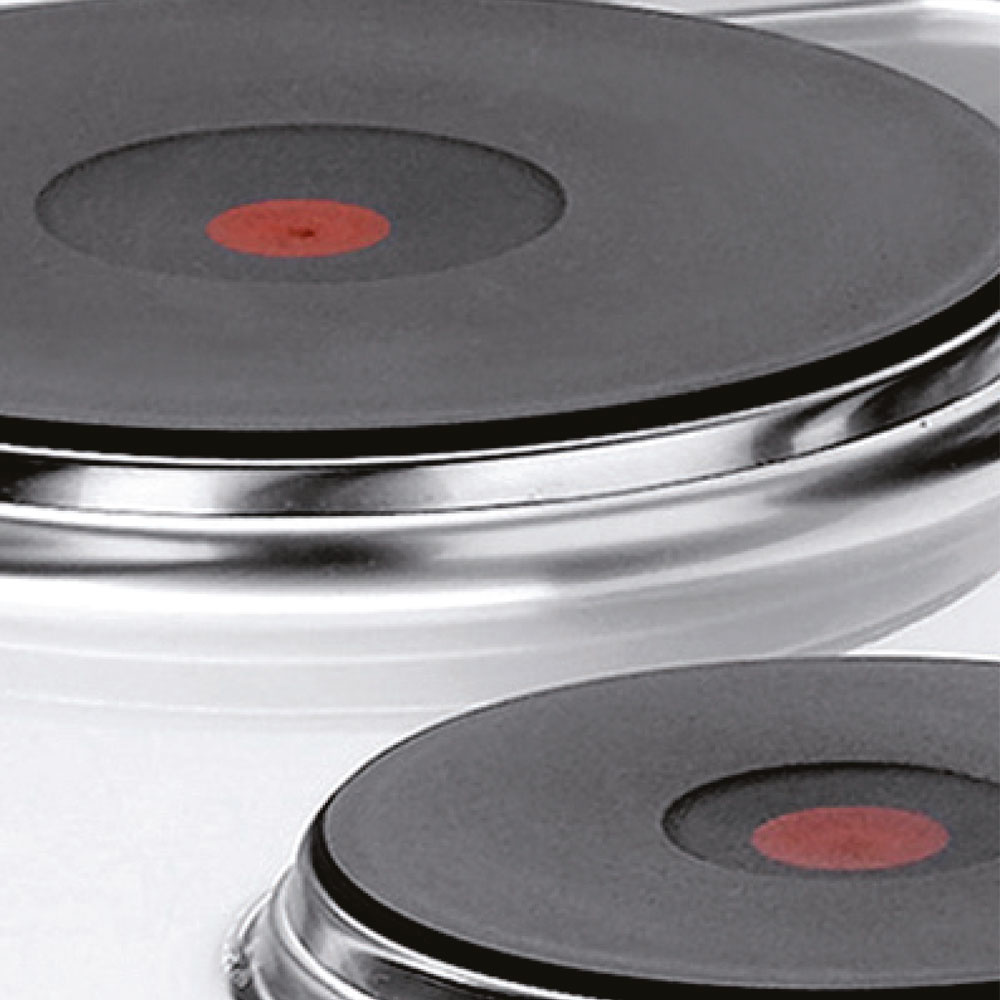

  • Cast-iron plates, with stainless steel sealing edge and overheating safety device.
  • Heating power regulated by a 7 position switch.
  • Oven chamber and double-walled (deep-drawn) door made of stainless steel and provided with thermal insulation, side guides on 3 levels.
  • Oven door on spring hinges, stainless steel handle.
  • GN 2/1 electric oven, heated by stainless steel heating elements, placed in the vault and under the oven floor.
  • Oven temperature regulation from 125°C to 300°C, by thermostat.
  • Grill with independent regulation, fitted with safety thermostat. Supplied with 1 grid as standard.

PLUS:

  • Possibility of 700+700 “BACK to BACK” or in combination with the new OPTIMA 900 EVO 700+900 range.
  • Top in 15/10 mm thick AISI 304 stainless steel, front edge with drip stop, deep-drawn, watertight worktops, rounded corners inside the tanks, ‘high technology’ quality components.
  • A perfect finish, with attention to detail, superb design and an easy alignment of the modules by the “HEAD to HEAD” connection.
Available in

2-3 days

Dimensions (mm)

700 x 700(730) x 850/920

Power (kW)

13,5

Power supply

400-230/3N 50-60Hz

Weight (kg)

90

Volume (m3)

0,73

Series

Diamond Silver

Quality class

Top class

Packaging of goods

On a pallet with cardboard cover

Warranty

12 months

Country of origin

Italy

HS code
84199085
