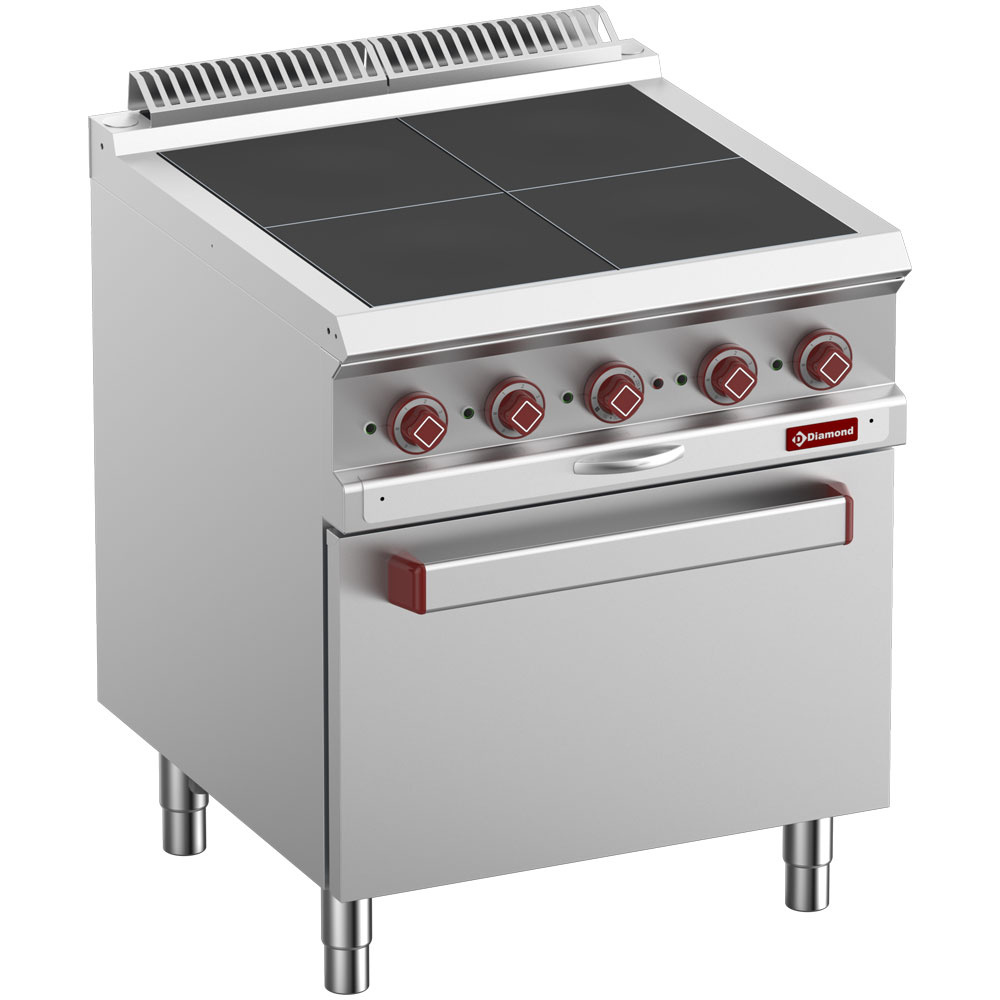

ELECTRIC STOVES 4 PLATES ALIGNED WITH THE TOP + OVEN GN 1/1    E7/4SPFV7-N

4 plates 300 x 300 mm, independent 4x 2,5 kW. Electric convection oven 2.6 kW, GN 1/1, 535 x 370 xh 320 mm. Electric convection oven GN 1/1, heated by 3 circular stainless steel heating elements. Oven temperature regulation from 70°C to 270°C, by thermostat, supplied with 1 grid. Plates with rapid temperature rise.

Manufacturer:

Available in

2-3 days

Dimensions (mm)

700 x 700(730) x 850/920

Power (kW)

12,6

Power supply

400-230/3N 50-60Hz

Weight (kg)

117

Volume (m3)

0,8

Series

Diamond Silver

Quality class

Top class

Packaging of goods

On a pallet with cardboard cover

Warranty

12 months

Country of origin

Italy

HS code:
84199085

3 065

excluding VAT

ELECTRIC STOVES 4 PLATES ALIGNED WITH THE TOP + OVEN GN 1/1    E7/4SPFV7-N

  • 4 plates 300 x 300 mm, independent 4x 2,5 kW.
  • Electric convection oven 2.6 kW, GN 1/1, 535 x 370 xh 320 mm.
  • Made of stainless steel AISI 304, adjustable stainless steel feet.
  • Top (15/10 mm) in stainless steel AISI 304, IPX5 water resistance.
  • Rear chimney in stainless steel AISI 304.
  • Cooking top, watertight IPX4.
  • Thick (40mm high) cast-iron plates with overheating safety device.
  • Regulated by a 7-position switch (for each hob), with a pilot light and easy front access for maintenance.
  • Stainless steel oven, rounded corners, enamelled steel bottom (removable internal structure) with thermal insulation, double-walled door (deep-drawn intérior) with thermal insulation, side guides on 3 levels, counterbalanced spring hinges, stainless steel handle.
  • Electric convection oven GN 1/1, heated by 3 circular stainless steel heating elements.
  • Oven temperature regulation from 70°C to 270°C, by thermostat, supplied with 1 grid.
  • Plates with rapid temperature rise.
  • Plates remain operational even when not in use (without containers).
  • Easy maintenance, fitted with a front-access recovery drawer.
  • Plates aligned with the hob, easy transfer of frying pans, sauté pans, pots, etc., no more lifting!

The +

  • Possibility of 700+700 “BACK to BACK” or in combination with the new OPTIMA 900 EVO 700+900 range.
  • Top in 15/10 mm thick AISI 304 stainless steel, front edge with drip stop, deep-drawn, watertight worktops, rounded corners inside the tanks, ‘high technology’ quality components.
  • A perfect finish, with attention to detail, superb design and an easy alignment of the modules by the “HEAD to HEAD” connection.
Available in

2-3 days

Dimensions (mm)

700 x 700(730) x 850/920

Power (kW)

12,6

Power supply

400-230/3N 50-60Hz

Weight (kg)

117

Volume (m3)

0,8

Series

Diamond Silver

Quality class

Top class

Packaging of goods

On a pallet with cardboard cover

Warranty

12 months

Country of origin

Italy

HS code
84199085
