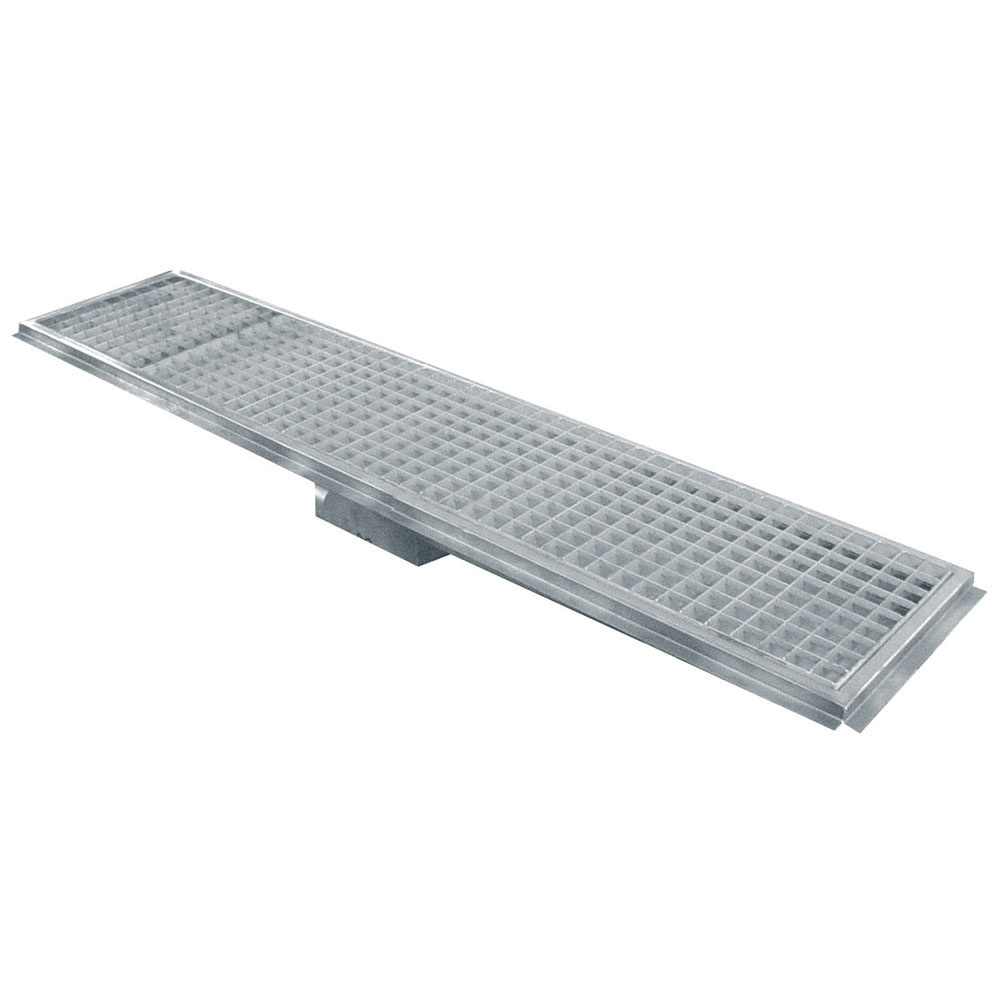

FLOOR DRAIN GS153-H

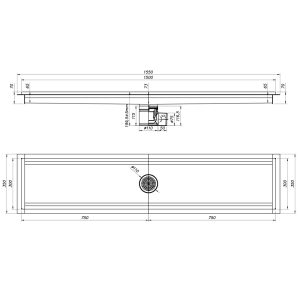

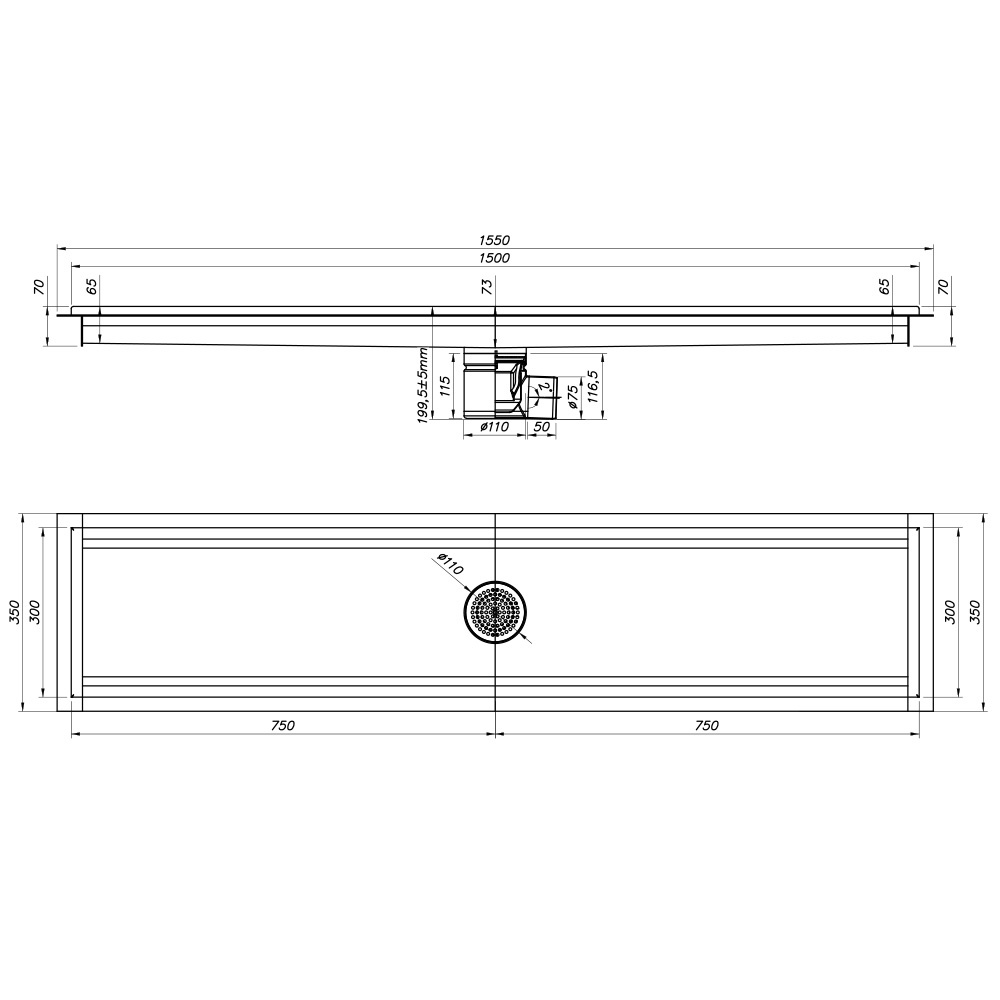

- Floor drain in channel design, dimensions 1500 × 300 mm, with horizontal outlet for wastewater drainage in professional foodservice establishments.
- Elongated design collects water from a larger floor area and directs it toward the centrally positioned trap.
- Construction made of AISI 304 (1.4301) stainless steel with a sheet thickness of 2 mm.
- Seamlessly pressed hygienic round body, diameter 110 mm, with rounded internal transitions for easier cleaning.
- Upper perimeter frame reinforced with a solid stainless steel bar for increased resistance to mechanical and thermal loads in accordance with EHEDG requirements.
- Drain body designed to prevent stagnant water from accumulating inside the floor drain.
- Water remains only in the trap, creating an odor seal against odors from the wastewater pipe.
- Trap flow rate 1 L/s.
- Strainer for collecting debris included.
- Centrally positioned trap with DN 75 horizontal outlet.
- Stainless steel grating with load class L15 kN.
- Surface pickled and passivated for increased corrosion resistance.
