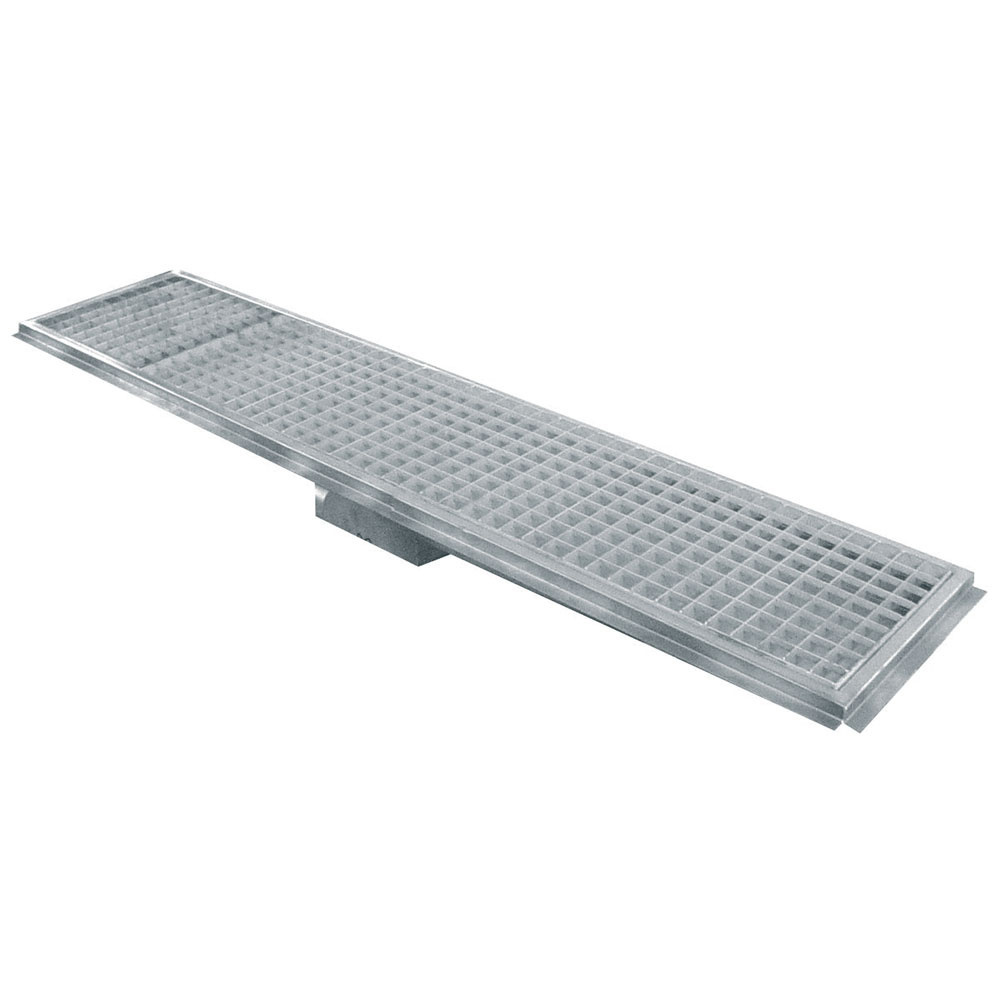

FLOOR DRAIN GS93-H
- Stainless steel floor drain channel 900×300, lateral discharge
- Material: Stainless steel AISI304 (1.4301), sheet thickness 2mm.
- Hygienic round body, diameter 110mm; the round body is stamped without joints and features rounded corners at the bottom plate level.
- The upper peripheral edge is reinforced with a solid stainless steel bar to withstand mechanical and thermal loads according to EHEDG.
- The drain body and siphon are designed to prevent stagnant water in the drain body, with water retained only in the siphon according to EHEDG.
- Floor siphon flow rate: 1 l/s, with strainer.
- Horizontal outlet DN75, grating in bar grid, class L15kN according to EN1254.
- Pickled and passivated finish by immersion.
