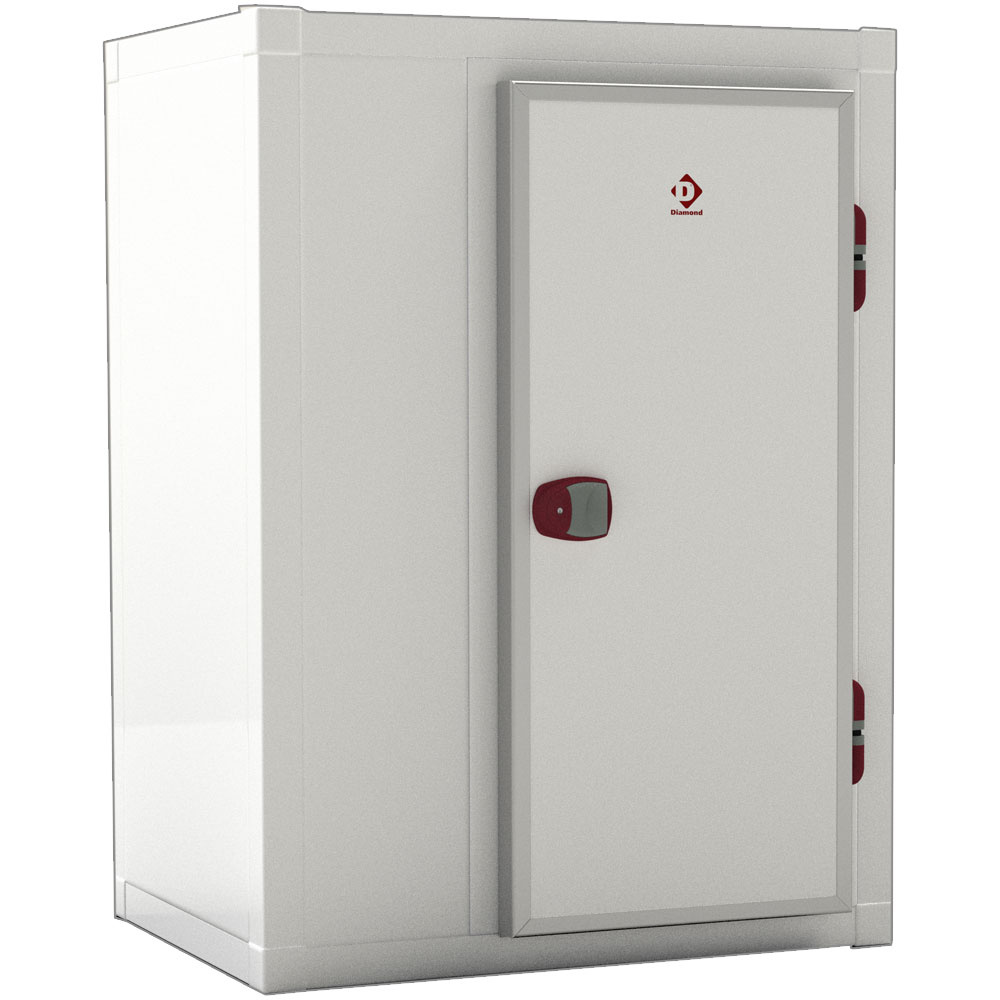

FREEZING ROOM C31B/10BF

FREEZING ROOM     C31B/10BF

• Internal dimensions 1430 x 1030 xh 2030 mm.
• Internal volume 2,99 m³.
• Door with useful passage 700 x 1900 mm (positioning of the door at choice, on the 4 sides).
• Door seal equipped with a peripheral heating cord (for negative T°).
• Vacuum valve (for negative temperature).
• Multipurpose chamber for positive or negative temperature, thickness of walls, floor and ceiling 100 mm, modulation with panels from 200 to 1200 mm width (200+200+200 …).
• Panels made of white lacquered galvanized steel sheet “non-toxic and anti-scratch”.
• Insulation in high density injected polyurethane (43 Kg/m3), ecological (without CFC).
• Locking of the panels by incorporated “eccentric” hooks.
• Reinforced floor in 12 mm multiplex wood, covered with a phenolic anti-slip “honeycomb” resin, supporting a load of 4000 kg/m² (140 Kg point load).
• Peripheral corners at 90° with specific caps at the ends, also insulated with polyurethane (50 Kg/m3) avoiding any possible thermal bridge.
• The corners and edges of the floor, ceiling and walls are all rounded (R15 mm) and also insulated with polyurethane (50 Kg/m3).
• Swinging door thickness 80 mm also insulated with polyurethane (43 Kg/m3), with right hinges (on request, possibility of left hinges: CGC/BF), very strong, reinforced with a peripheral frame in anodized aluminum, provided with a magnetic seal in EPDM “pressure” (easy replacement, without tools), adjustable rising hinges and with stop at 100°, external handle with key lock, internal closing with safety device.
• Panel certified in classification “B-S3,d0” according to the UNI EN 13501-1:2009 standard.
• The equipment is built in compliance with the current CE regulations.
