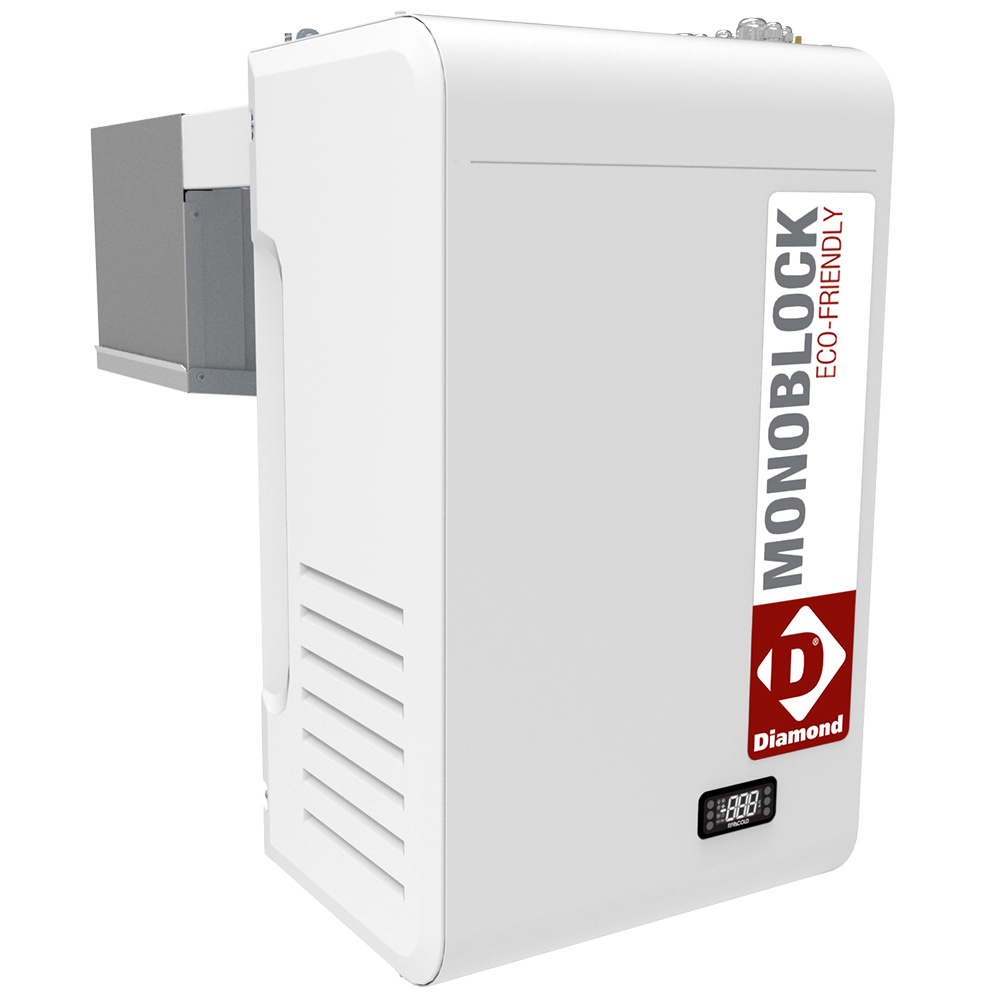

REFRIGERATED GROUP WITH WALL OVERLAPPING AN120M-1C-R2

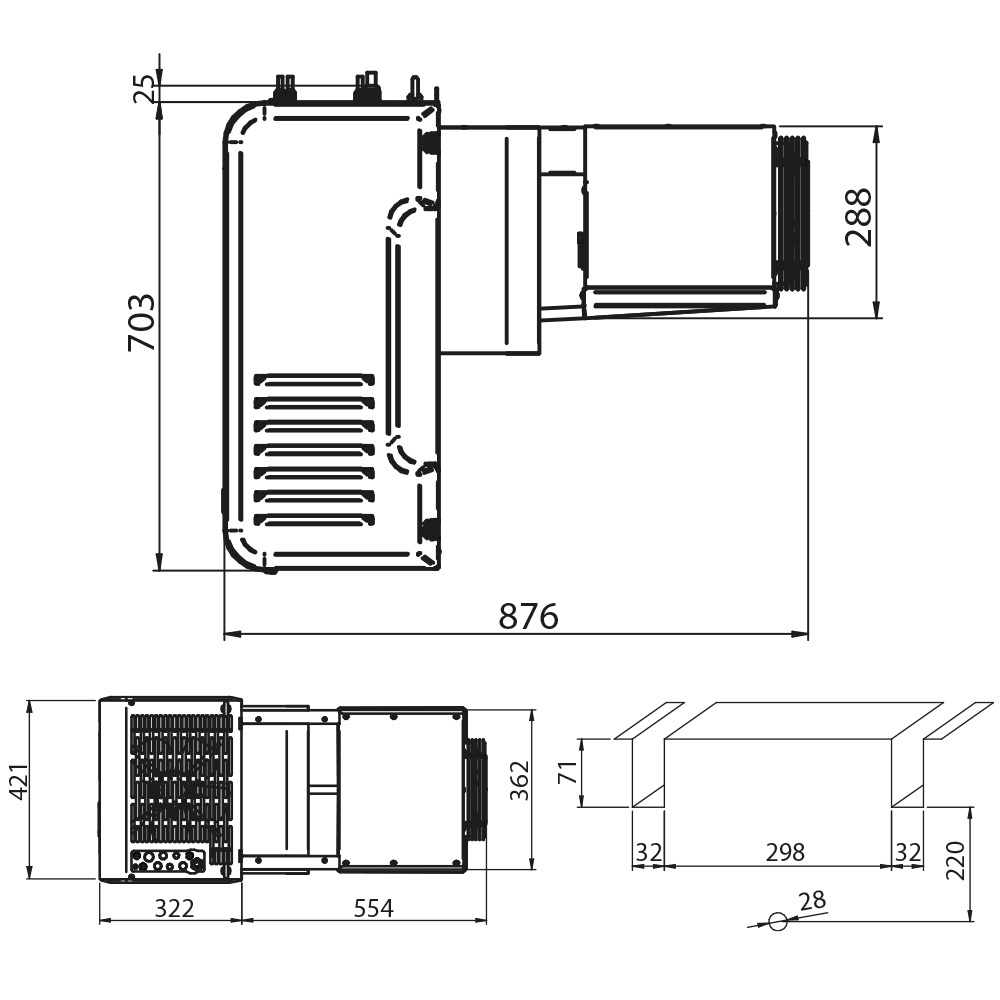

- Unit width 420 mm, compact design

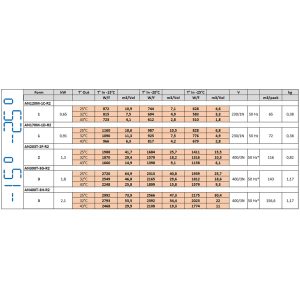

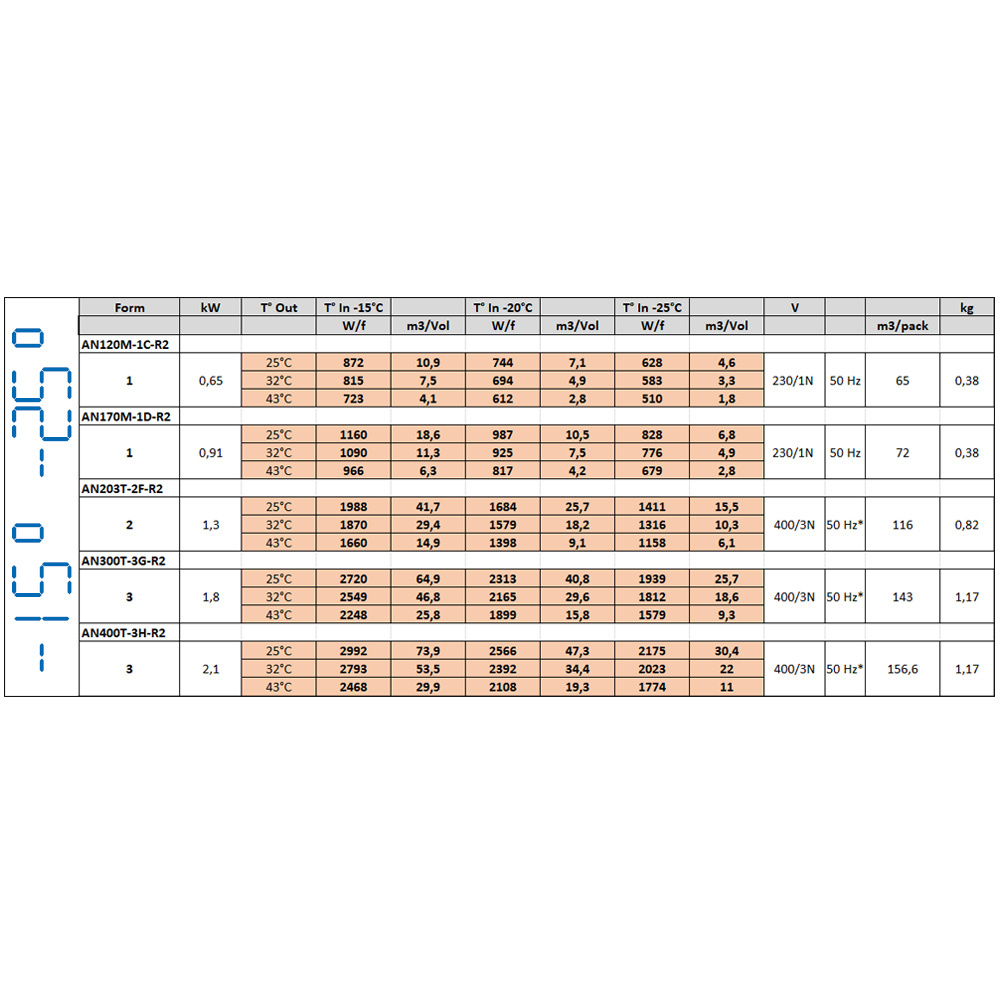

- Cooling capacity delivered: 694 (W/f) for chamber volume 4.9 m³ / 4900 Lit (internal T° -20°C & external T° +32°C)
- Refrigerant expansion by thermostatic valve
- Supplied with a cable for door heater connection
- “Overlapping” refrigeration units.
- Unit certified in climatic class 5 (40°C Temperature – 40% Humidity).
- All units are supplied as standard with a high pressure switch and KVL valve.
- Automatic hot gas defrost with self-evaporation and overflow.
- The evaporator drain pipe is equipped with a resistor to prevent ice formation.
- Refrigerant gas R290.
- Supplied with cables and micro-switch for door and light (Porthole lights supplied as standard).
- Microprocessor control with touch-sensitive keys.
INFO:
- Warning: by default, the ideal operating ambient temperature must not be below 5°C.
- If placed outdoors, the unit must be protected from weather conditions.
PLUS:
- Low-profile 420mm long units. Can be placed on any of our chambers (minimum 600mm panel).
- All units are supplied as standard with a high-pressure switch. All units are fitted with a thermostatic valve.
