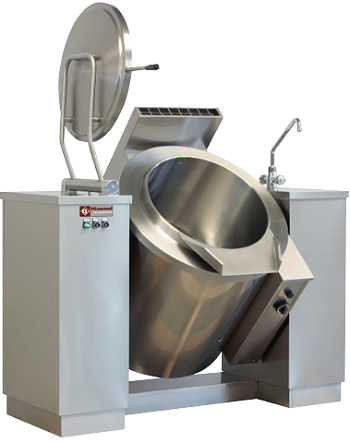

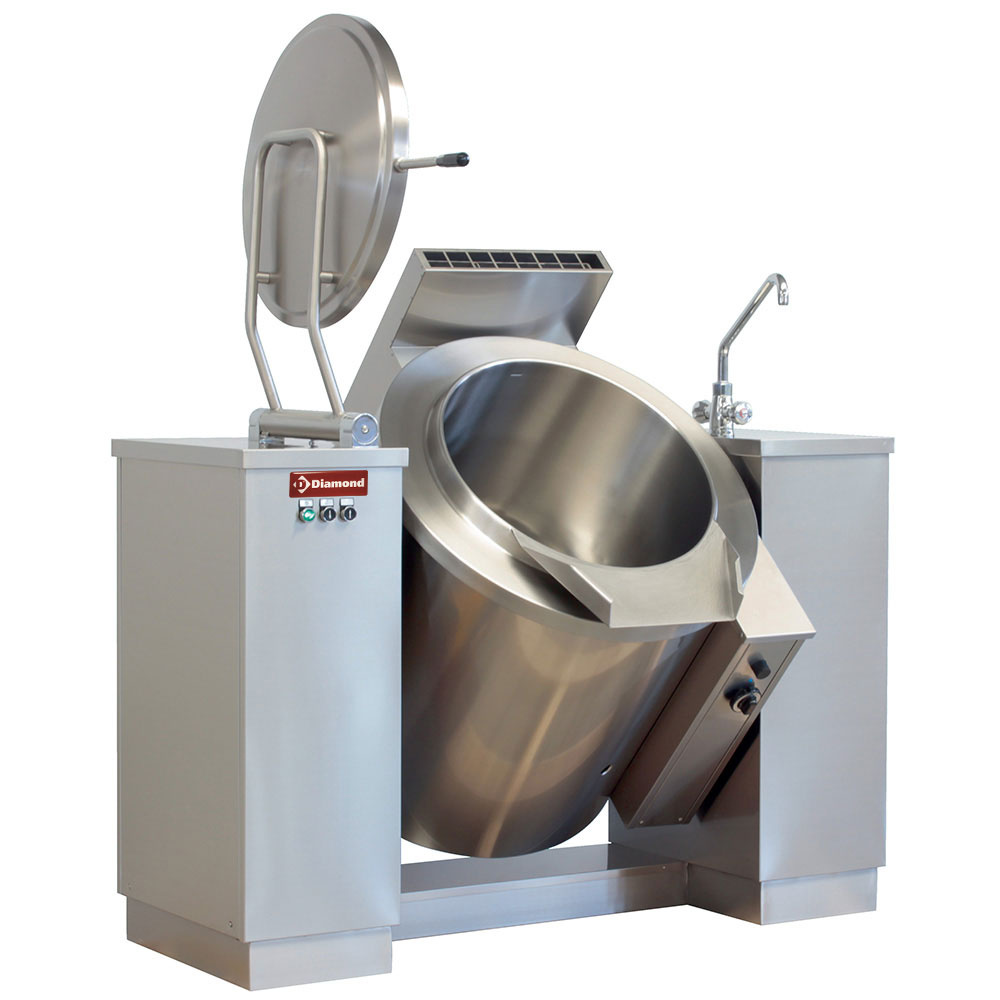

GAS BOILING PAN, 500 L, INDIRECT HEATING GMB/500l
- Diameter tank 1060 mm, deep 600 mm.
- Deep-drawn” tank, bottom made of polished AISI 316 stainless steel (20/10 mm thick) wall made of 304 stainless steel (20/10 mm thick).
- Indirect heating, double jacket made of 304 stainless steel (15/10 mm thick).
- Made of AISI 304 stainless steel, version on AISI 304 stainless steel columns (delivered with floor fixing kit).
- Covering: made of AISI 304 stainless steel (10/10 mm thick).
- Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- Deep-drawn” tank wall made of 304 stainless steel, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear.
- Water tap for filling the tank.
- Motorized tank tilting.
- Operation on the front side.
- Deep-drawn” cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket.
- Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Gas heating by 304 stainless steel tubular burners with stabilized flame, regulation by thermostatic valve.
- Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch.
- Working temperature up to 100°C.
TREATABLE FOODS:
- Thick soups
- Thin soups
- Pasta
- Rice
- Sauces
- Various boiled foods
- Broths
- Dairy products
- Coffee
- Tea
- Boiled vegetables
- Packaged jars
TYPES OF PROCESSING:
- Boiling
- Pasteurisation
- Pressure cooking
