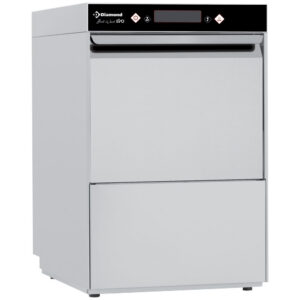

GLASSWASHER   DBS5/EV-AC

GLASSWASHER   DBS5/EV-AC

• Glasswasher with “Full Hygiene – Best Wash EVO” concept and 400 × 400 mm basket.
• Maximum glass height: 300 mm.
• Output up to 60 baskets per hour.
• Digital CSD soft-touch control panel allows easy selection of wash programs.
• Three wash programs with cycle times of 60, 120 and 150 seconds.
• Wash cycle consists of washing, draining and rinsing.
• Rinsing at a constant temperature of 85°C ensures a high standard of hygiene.
• Water consumption is 2 liters per cycle.
• 8-liter wash tank with 0.6 kW heating power.
• 2.6-liter stainless steel boiler with 2.6 kW heating power.
• Separate wash and rinse pumps.
• Built-in peristaltic detergent dispenser.
• Built-in peristaltic rinse-aid dispenser.
• Built-in water softener reduces limescale formation and helps protect internal machine components.
• Automatic wash tank filling and automatic water drainage.
• High-efficiency double-flow wash pump reduces energy consumption.
• Double-wall construction entirely made of AISI 304 stainless steel.
• Pressed wash tank with rounded corners and no welds or joints reduces the accumulation of dirt and limescale.
• Upper and lower rotating stainless steel wash and rinse arms.
• Self-cleaning stainless steel nozzles.
• Integral pressed stainless steel filter and patented pump filter help keep wash water clean and at the correct temperature.
• Pressed double-wall door with integrated handle and removable seal.
• Microswitch stops the wash cycle when the door is opened.
• Safety thermostat and non-return valve.
• Removable control panel facilitates servicing and maintenance.
• Height-adjustable feet.
• EED energy-saving mode reduces electricity consumption.
• TCD technology ensures rinsing at 85°C.
• DRD accelerated preheating reduces machine preparation time.
• DID automatic diagnostics alert the operator in the event of a malfunction.
• ADD displays wash tank and boiler temperatures in accordance with HACCP requirements.
• CID automatic soft-close door improves operating comfort and safety.
• RGD control maintains a constant rinse temperature and stable rinse pressure.
• BDT Break Tank type AB prevents contaminated water from flowing back into the water supply.
• Fully automatic CAD self-cleaning cycle simplifies daily maintenance.
• Machine is suitable for use with reverse-osmosis-treated water.
• Supplied with two baskets, saucer insert, cutlery basket, water inlet hose and drain hose
