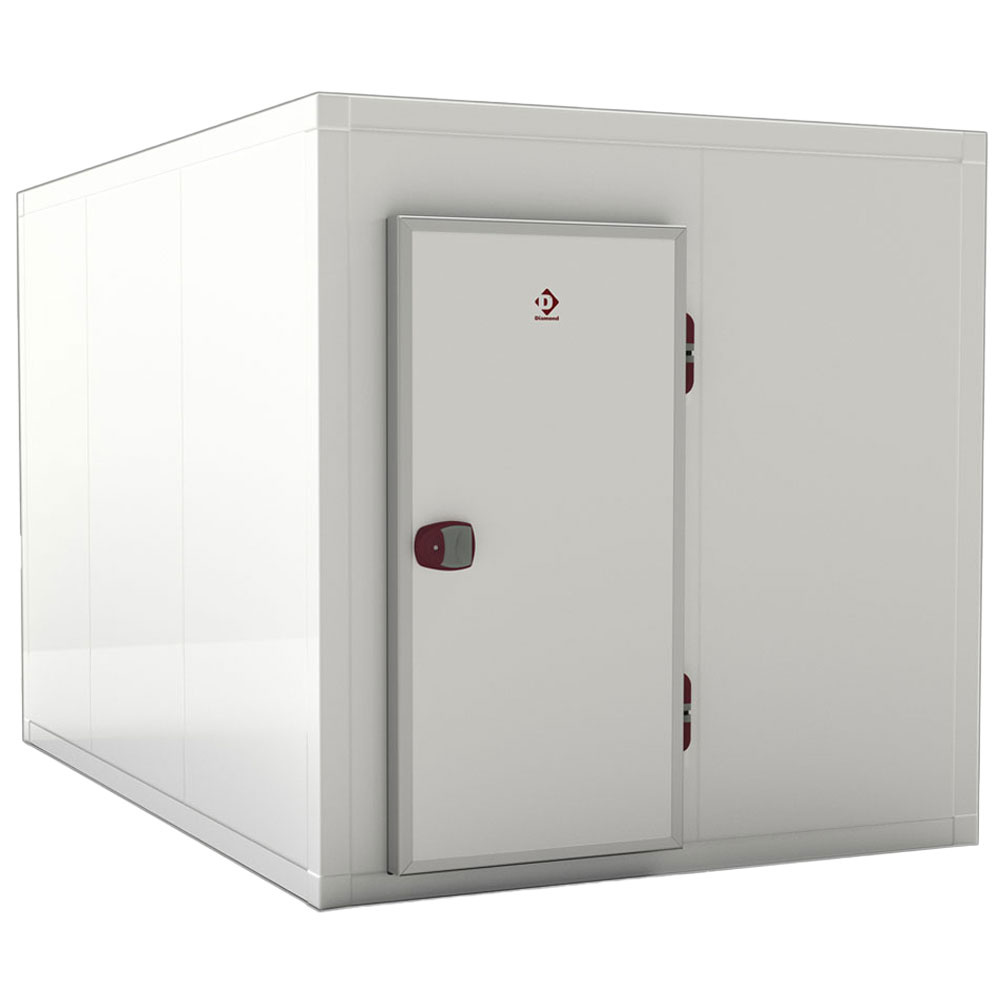

MAXI COLD ROOM C2010/XBF
- Internal dimensions 2230 x 4030 xh 2230 mm .
- Internal volume 20,04 m³.
- Door with useful passage 900 x 1900 mm (positioning of the door at choice, on the 4 sides).
- Door seal equipped with a peripheral heating cord (for negative T°).
- Vacuum valve (for negative temperature).
- Multipurpose chamber for positive or negative temperature, thickness of walls, floor and ceiling 100 mm, modulation with panels from 200 to 1200 mm width (200+200+200 …).
- Panels made of white lacquered galvanized steel sheet “non-toxic and anti-scratch”.
- Insulation in high density injected polyurethane (43 Kg/m3), ecological (without CFC).
- Locking of the panels by incorporated “eccentric” hooks.
- Reinforced floor in 12 mm multiplex wood, covered with a phenolic anti-slip “honeycomb” resin, supporting a load of 4000 kg/m² (140 Kg point load).
- Peripheral corners at 90° with specific caps at the ends, also insulated with polyurethane (50 Kg/m3) avoiding any possible thermal bridge.
- The corners and edges of the floor, ceiling and walls are all rounded (R15 mm) and also insulated with polyurethane (50 Kg/m3).

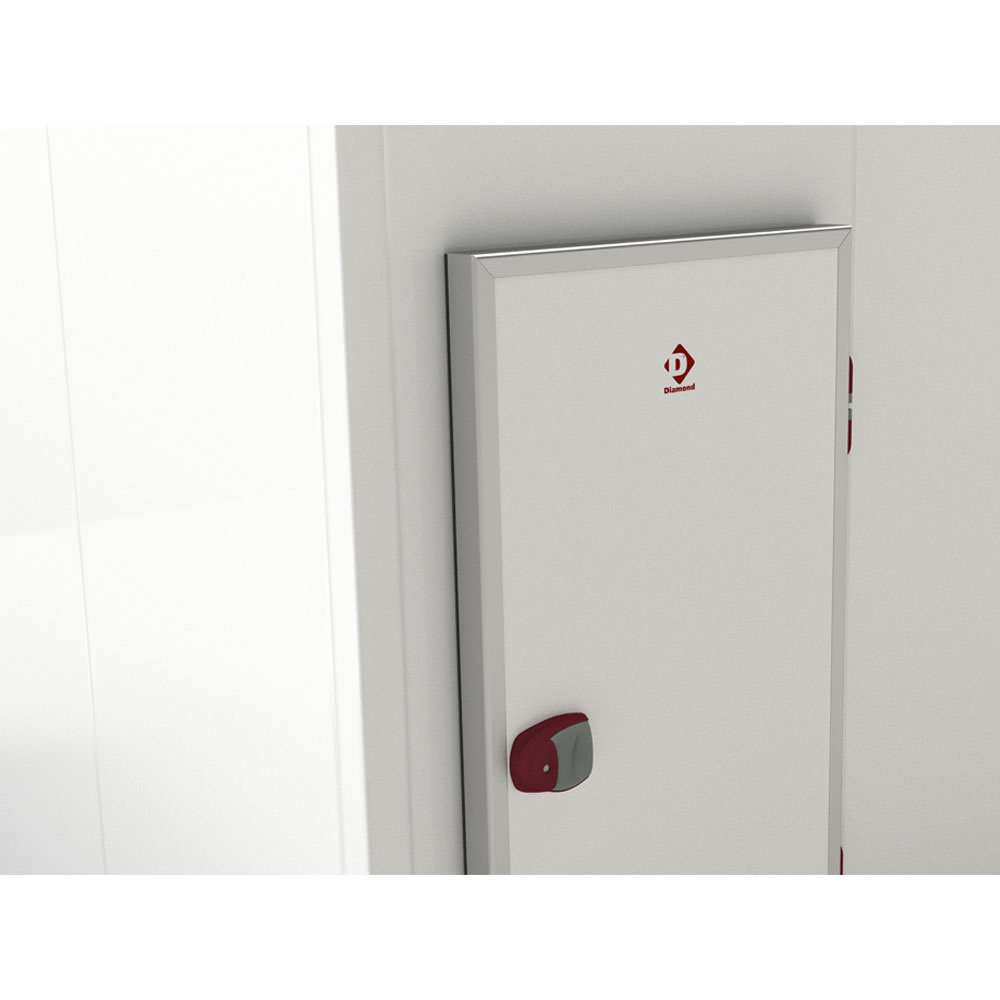

- Swinging door thickness 80 mm also insulated with polyurethane (43 Kg/m3), with right hinges (on request, possibility of left hinges: CGC/BF), very strong, reinforced with a peripheral frame in anodized aluminum, provided with a magnetic seal in EPDM “pressure” (easy replacement, without tools), adjustable rising hinges and with stop at 100°, external handle with key lock, internal closing with safety device.
- Panel certified in classification “B-S3,d0” according to the UNI EN 13501-1:2009 standard.
- The equipment is built in compliance with the current CE regulations.
- Maxicold EVO, a brand new manufacturing design, equipped with peripheral angular and linear joint panels, more ease of assembly and possibility of extension at any time, impeccable level of finish.
- The angles and corners are all rounded, without any mouldings, a hygiene assured has 100%!
- Floor covered with a phenolic anti-slip resin “honeycomb”.
- Peripheral frame of the door in anodized aluminum, better protection (transit carts, ladders with plates, etc …)
- Pre-assembly kit of the panels delivered as standard, including ceiling support, making it safer, easier and faster. …
- On request: modular shelves, strip curtain, cart ramp (exterior and interior), etc. …
