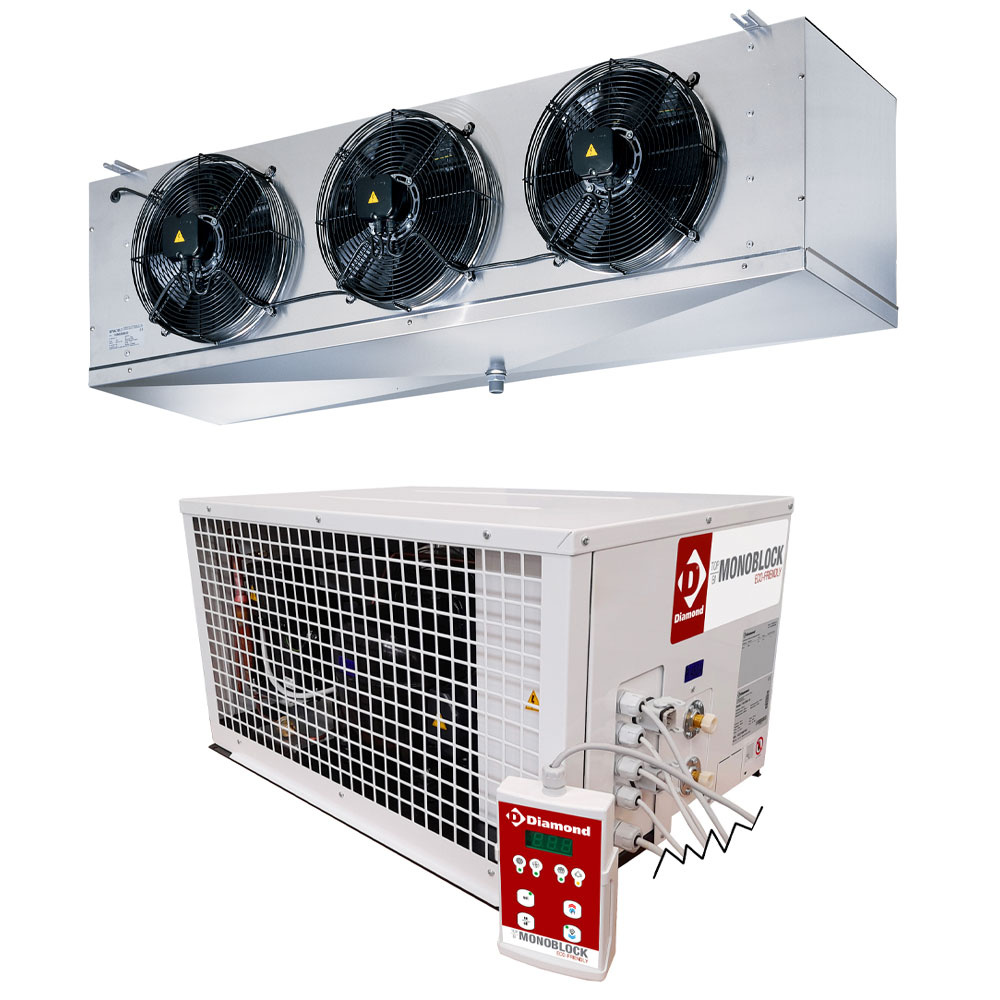

REFRIGERANT GROUP BY-BLOCK HN300T-5U

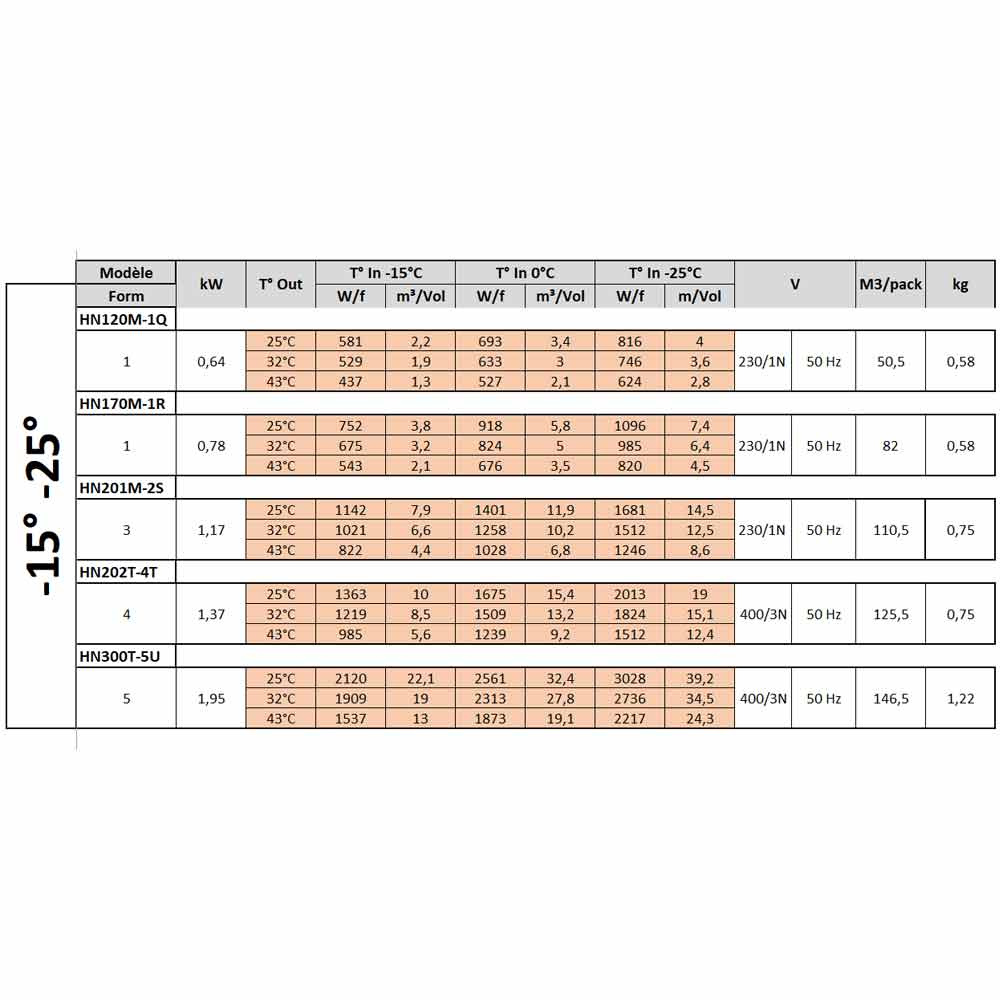

- Cooling capacity rendered 2313 (W/f) for chamber volume 27,8 m³ /27 800 Lit. (T° internal -20° C & T° external +32° C).
- Refrigerant expansion by thermostatic valve.
- The low temperature units (HN) are supplied with a cable for the connection of the door resistor.
- Bi-block” refrigeration units.
- Due to its design, the condensing unit is suitable for outdoor installation and can be placed anywhere, floor, ceiling, wall,…

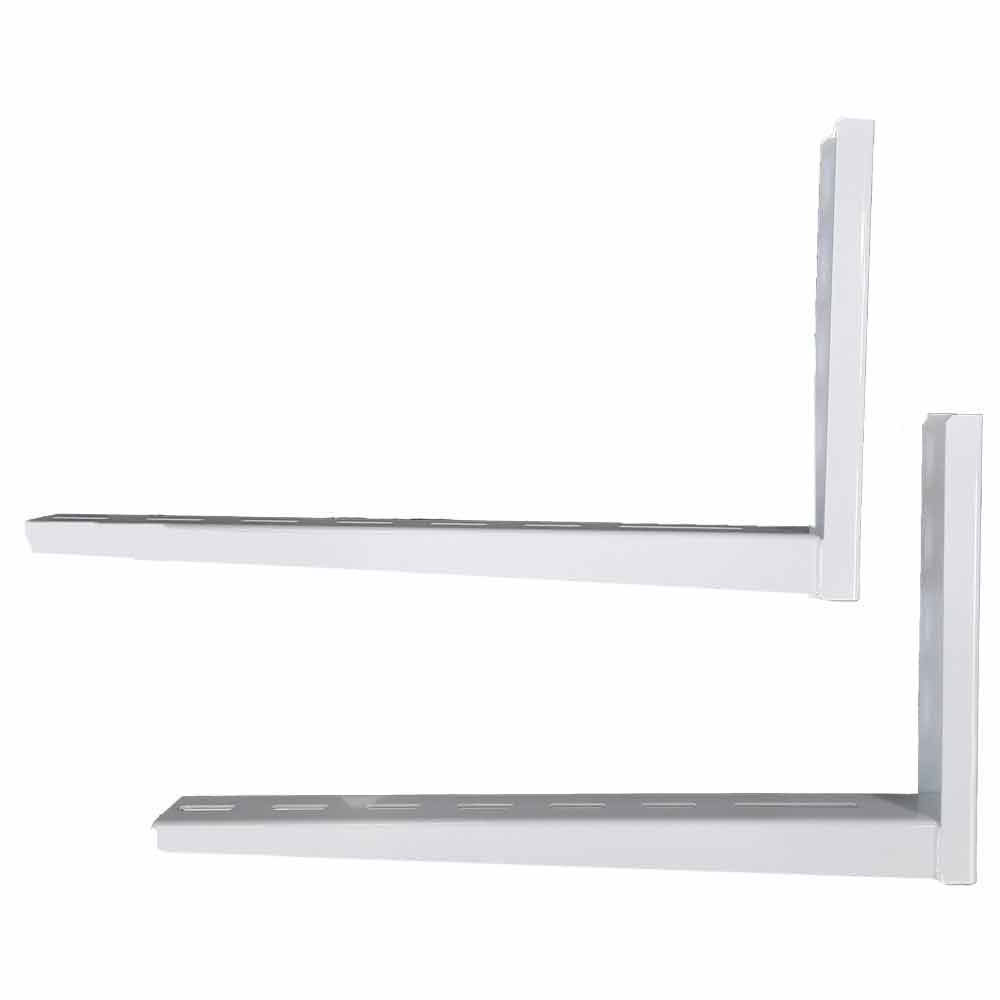

- Delivered with 2 wall brackets as standard.

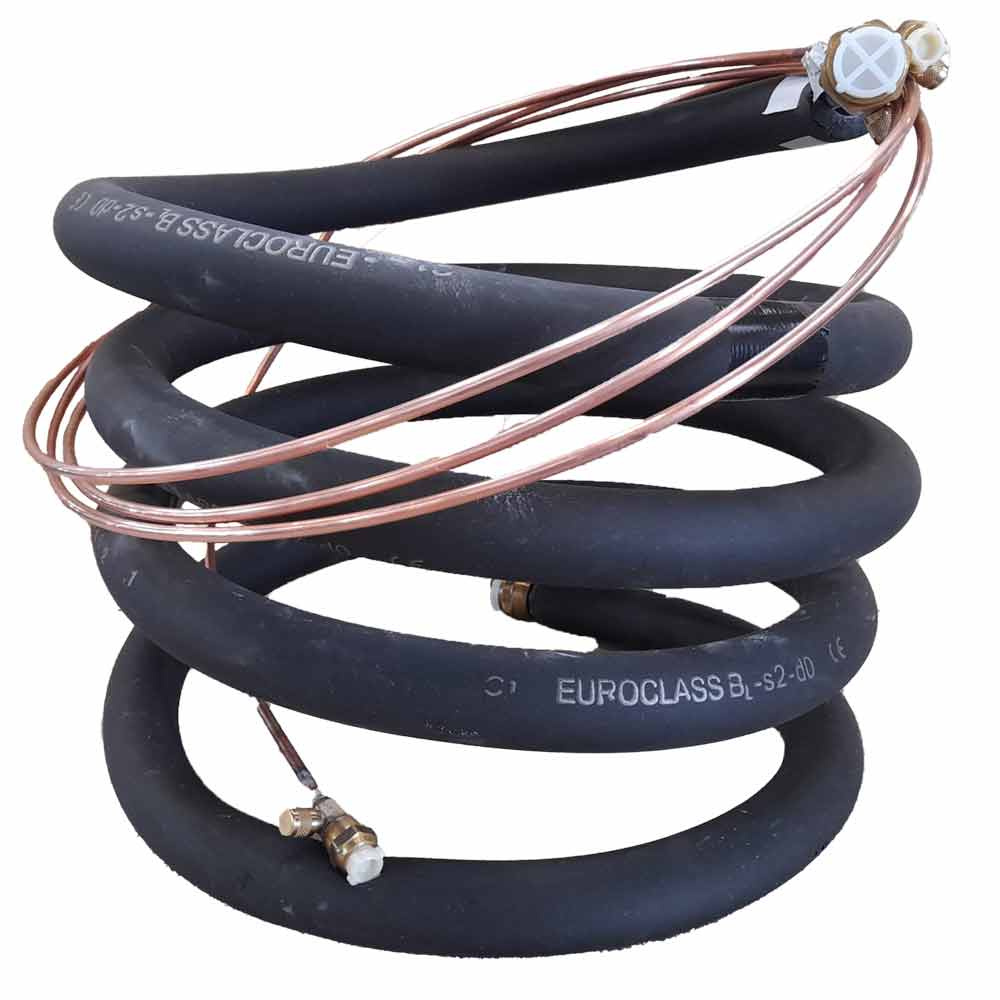

- Pipes (pre-loaded) and cables are supplied for connection within a radius of 5 meters (10 meters optional).
- All units are supplied as standard with a high pressure switch and KVL valve, as well as cables for door and light microswitches.
- Control panel with separate touch-sensitive keys, connected to the unit by a 10 m cable
- Automatic defrosting by electric resistance, water flow located below the evaporator. The evaporator drain pipe is equipped with a resistance to prevent ice formation.
- Unit certified in climatic class 5 (40°C Temperature – 40% Humidity).
- Refrigerant gas R452a.
- Window lights delivered as standard with micro-switch for door.
- As standard, the ideal ambient operating temperature must not be lower than 10°C.
- If this is not the case, you must provide compressor preheating (H-PR-R), a pressure switch for the condenser fan (H-PVC-R) and a heated electrical panel (H-TEC-R). In this case, the operating temperature cannot be lower than -5°C.
PLUS:
- Easily removable panels for easy access in case of intervention.
- Defrosting by electric resistance.
- All units are supplied with a high pressure switch as standard.
- The negative units are equipped with a thermostatic valve.
