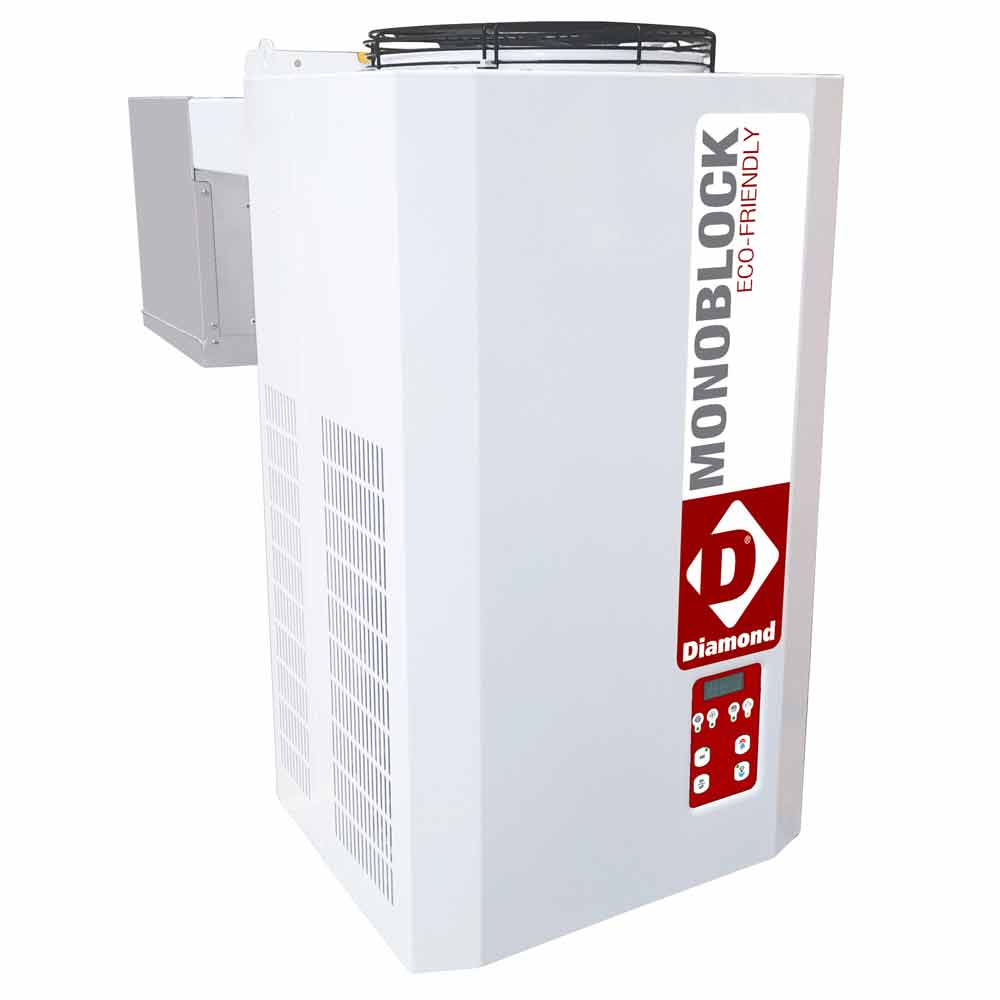

REFRIGERATED GROUP WITH WALL OVERLAPPING AN400T-3H

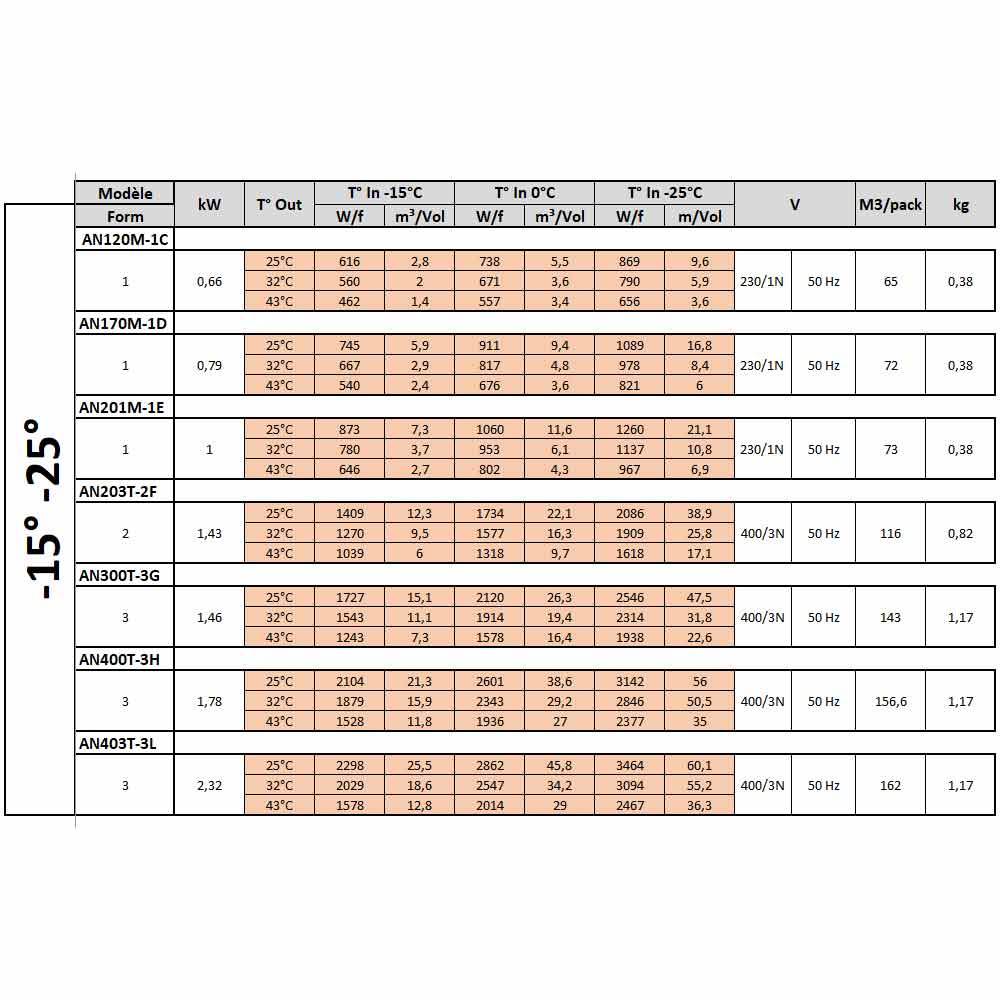

- Cooling capacity 2343 (W/f) for chamber volume 29,2 m³ / 29 200 Lit (T° internal -20° C & T° external +32° C).
- Refrigerant expansion by thermostatic valve.
- Supplied with a cable for the connection of the door heater.
- “Overlapping” refrigeration units.
- Unit certified in climatic class 5 (40°C Temperature – 40% Humidity).
- All units are supplied as standard with a high pressure switch and KVL valve.
- Automatic hot gas defrost with self-evaporation and overflow.
- The evaporator drain pipe is equipped with a resistor to prevent ice formation.
- Refrigerant gas R452a.
- Supplied with cables and micro-switch for door and light (Porthole lights supplied as standard).
- Microprocessor control with touch-sensitive keys.
INFO:
- As standard, the ideal ambient operating temperature cannot be lower than 10°C, otherwise, provide: a compressor preheating (A-PR-R), a pressure switch for the condenser fan (A-PVC-R) as well as a heated electrical panel (A-TEC-R).
- In this case, the operating temperature cannot be lower than -5°C.
- The unit must be protected from the weather when installed outdoors.
PLUS:
- All groups are supplied with a high pressure switch as standard.
- The negative groups are equipped with a thermostatic valve.
