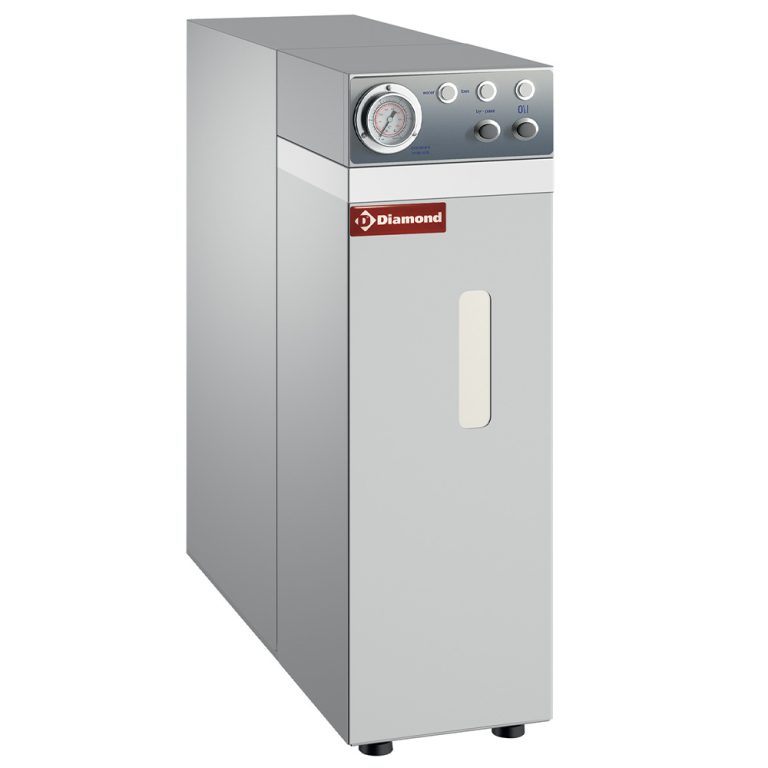

REVERSE OSMOSIS UNIT 150L/h, STAINLESS STEEL MONOBLOC RS15/AT
- Reverse osmosis RS15/AT is a compact water treatment unit designed for catering operations where stable rinse quality and protection of technological equipment are important.
- The unit is recommended for dishwashers and glass washers equipped with a rinse pump or Break Tank system.
- The system removes dissolved minerals, salts, chlorine and organic substances from water, ensuring water suitable for glass washers, dishwashers, combi ovens and equipment with steam generation.
- Water treatment using reverse osmosis significantly reduces limescale formation and improves rinsing results.
- Dishes and glasses are clean after washing, without stains and without the need for additional polishing.
- The unit is designed as a compact stainless steel monoblock with separated hydraulic, inspection and electrical sections.
- Front access allows easy inspection of the system and replacement of the osmosis membrane without dismantling the unit.
- Activated carbon filter protects the membrane and increases the efficiency of the whole system.
- The unit also includes a by-pass system and pressure gauge for water pressure control.
- Model RS15/AT operates with one osmosis membrane and reaches a production capacity of up to 150 L/h.
- Actual performance mainly depends on water temperature, pressure and mineral content of the inlet water.
INFORMATION
- If water hardness exceeds 25 °F, installation of a water softener before the reverse osmosis unit is recommended.
- Recommended installation: water supply → water softener → reverse osmosis unit → glasswasher / dishwasher / combi steamer / oven.
ADVANTAGES
- Cleaner water for catering equipment.
- Better rinsing results and shinier dishes without stains.
- Reduced limescale formation in equipment.
- Lower energy and detergent consumption.
- Longer lifetime of technological equipment.
TECHNICAL DATA
- Production: 0–150 L/h
- Number of membranes: 1
- Activated carbon filter: 1
- Power supply: 230 V / 50 Hz
- Power consumption: 186 W
- Minimum water pressure: 1 bar
- Maximum water pressure: 5 bar
- Minimum water flow: 350 L/h
- Minimum water temperature: 5 °C
- Maximum water temperature: 45 °C
