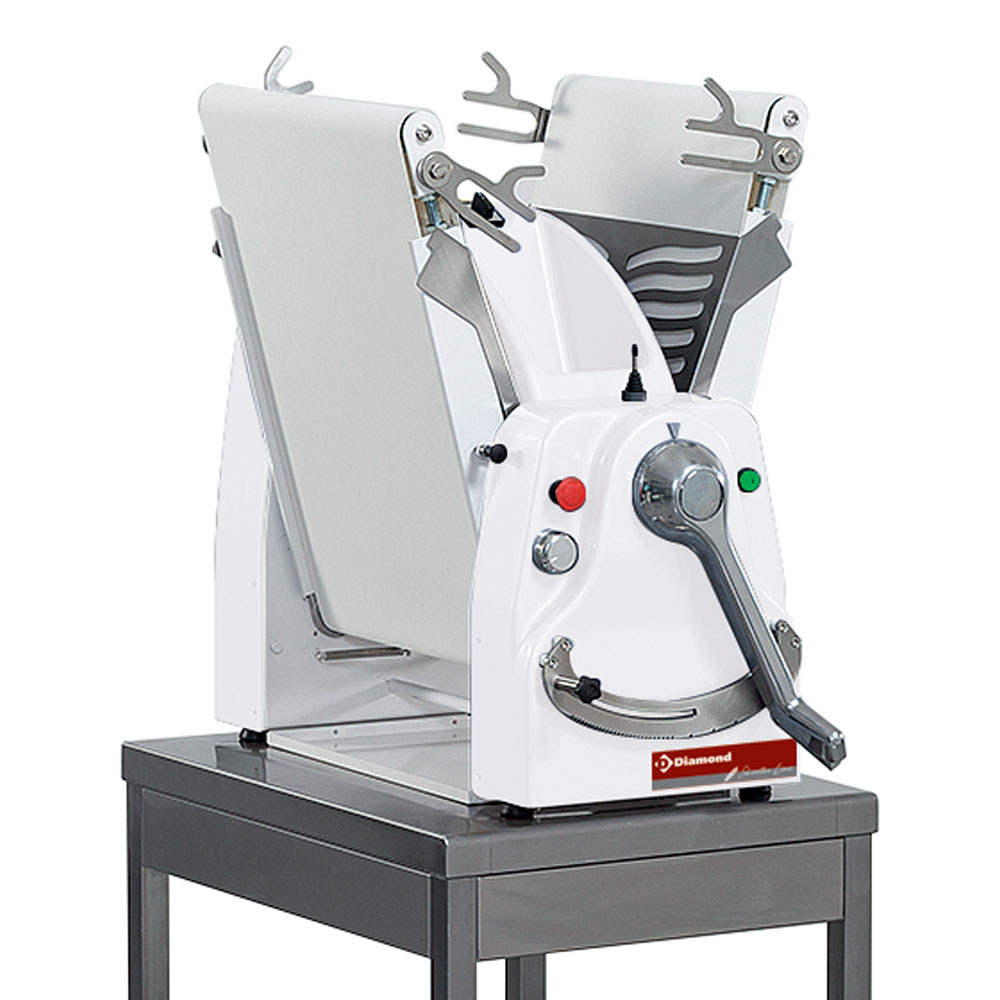

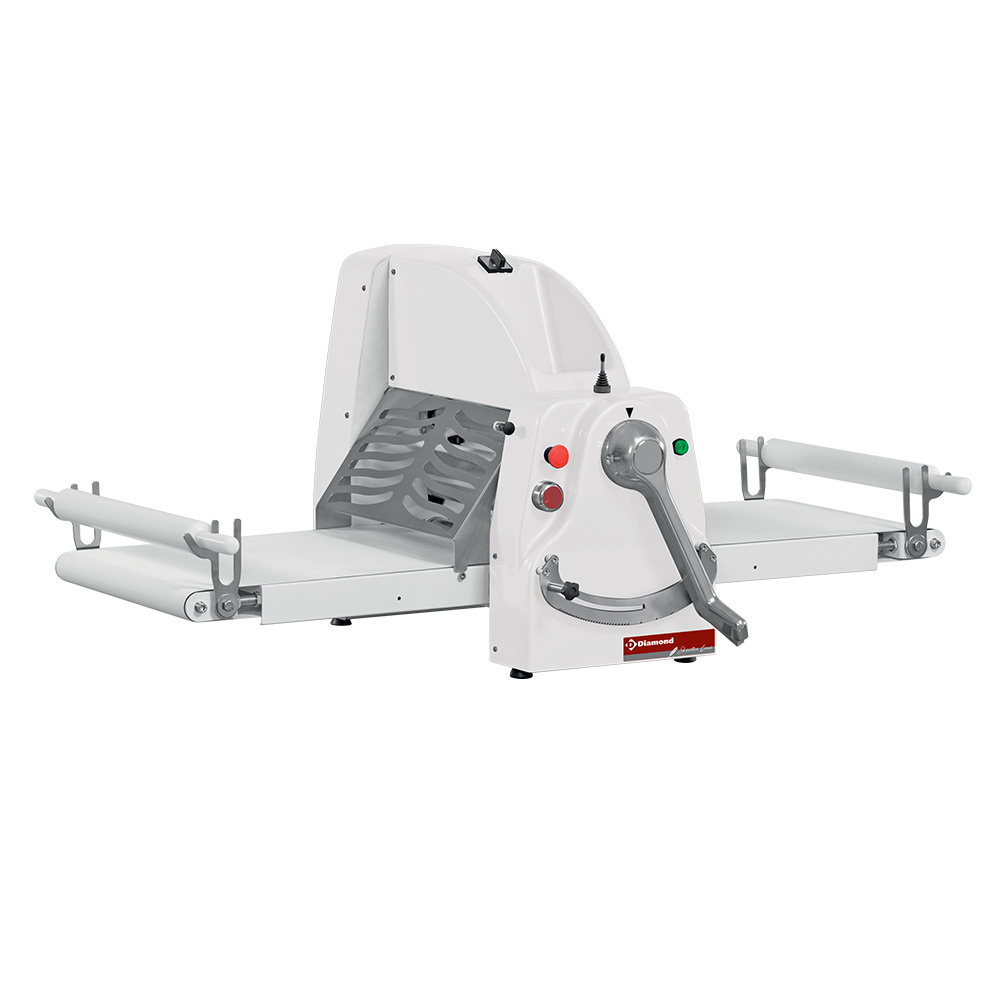

SHEETER, OF TABLE, 500×700 mm LB50-75/MVV

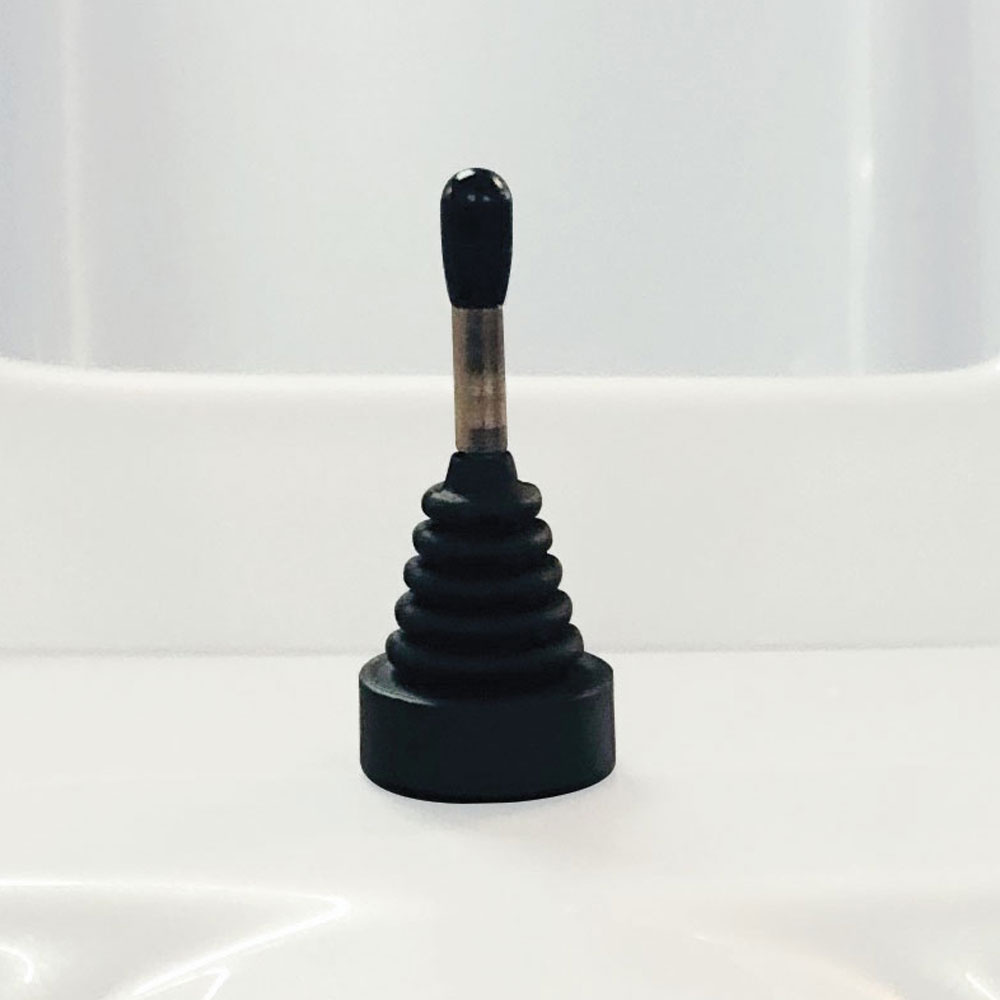

- Mechanical controls, mats manipulated by joystick.
- Table version (very compact), 4 adjustable cylinders.
- Manual controls.
- Variable speed (10 rpm to 60 rpm), with Inverter.

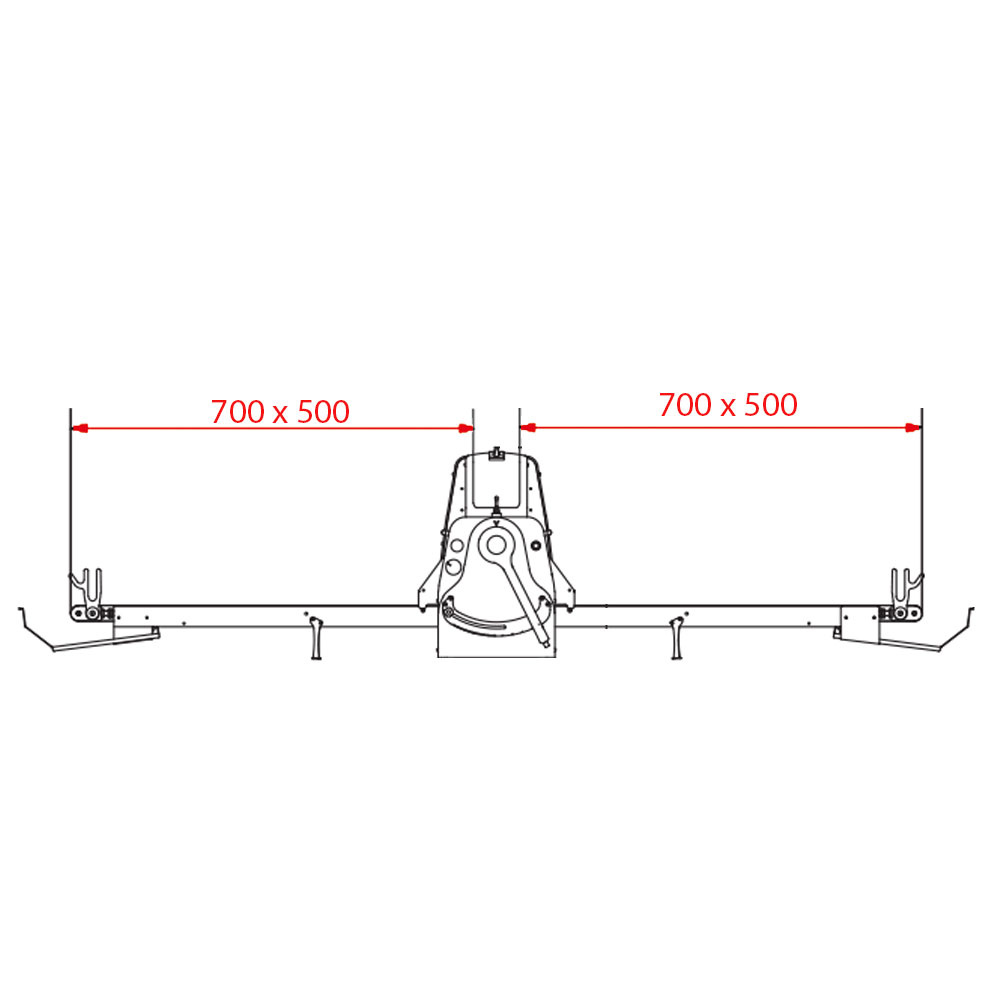

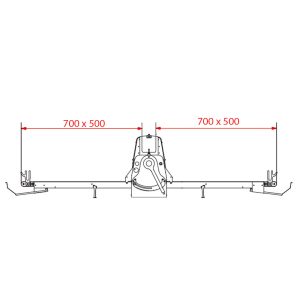

- Side tables 700×500 mm (foldable).
- Cylinder length 500 mm.
- Roll opening from 0 – 36 mm, rolling diameter 60 mm.
- Travel speed 35 metres/minute.
- Closed overall dimensions 380x920xh850.
- Standard: 2 pastry rollers.
- Strips made with specific materials for food use.
- Precise regulation of the thickness of the dough sheet, constant production.
- Scrapers and supports made with specific materials (POM-C) for food use.
- Easy disassembly and reassembly of the scrapers, without tools.
- Chrome-plated and ground steel cylinders.
- Harvesting bin under the cylinders.
- Belt with double direction of travel (Right & Left).
- Frame in painted steel (epoxy).
- Low voltage controls 24V.
- Emergency stop button type “punch”.
- Roller protection grids, made of stainless steel.
- Traction system, self-lubricated.
- Superior flour bin.
- Possibility to raise the tables, to reduce the space required for storage.
- The device is built in compliance with the current CE standards.
ADVANTAGE :
- Easy to use, quick cleaning, these are some of the advantages of our Diamond strip mills.
- Their robust construction and performance make them ideal for small and medium productions.
- They can be used to shape all types of pasta (puff pastry, shredded pastry, soft dough, buns, etc.).
- Side tables that can be lifted or dismantled, moved and stored easily.
- Available with speed variator (standard with inverter, for more delicate processing)…….. or with a single speed (standard).
