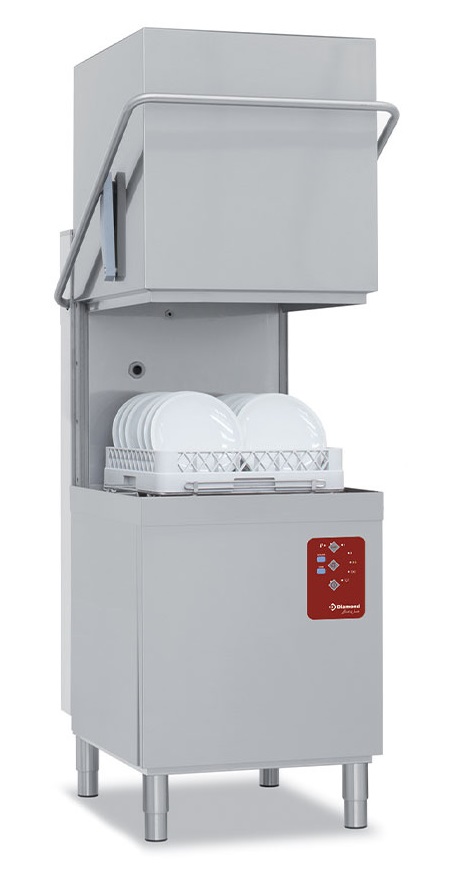

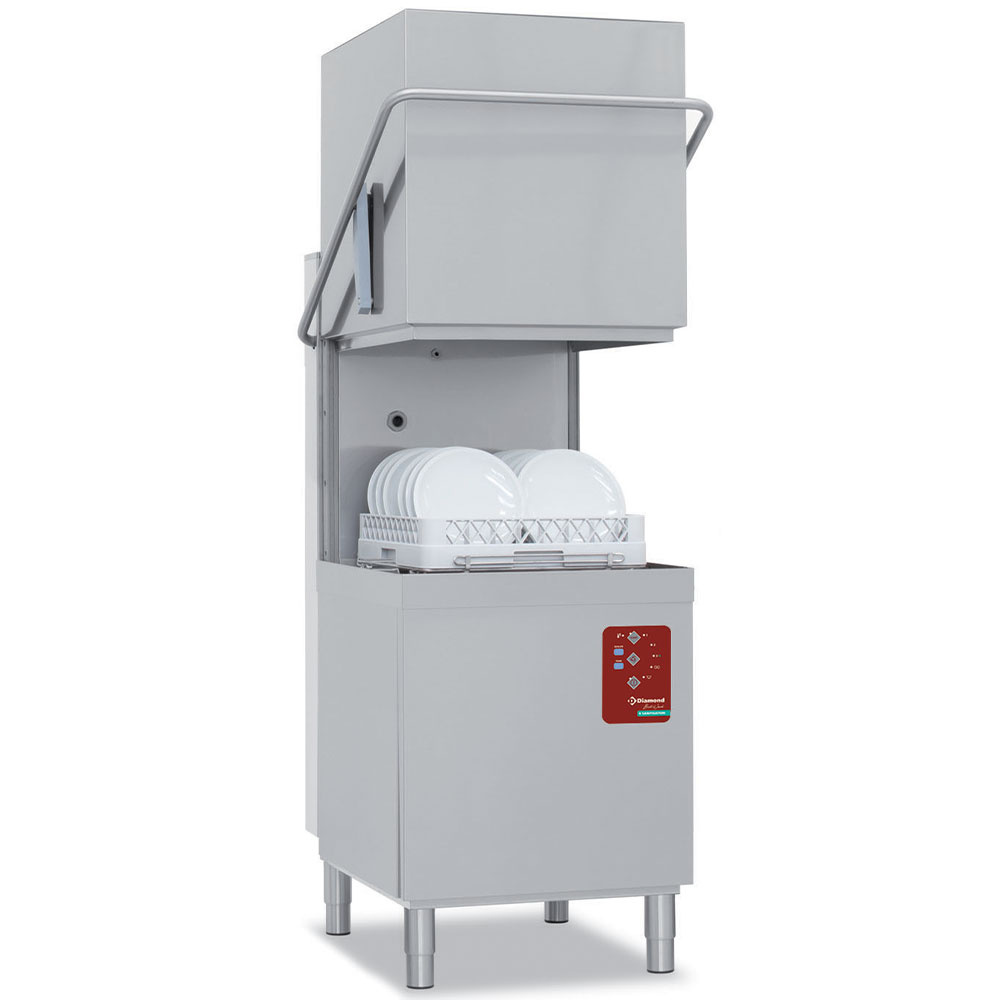

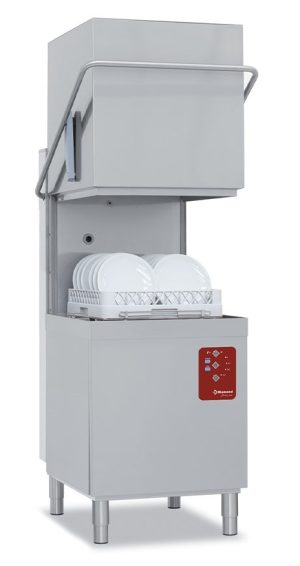

HOOD DISHWASHER DXE8/6
- Full Hygiene – Best Wash concept.
- Basket 500 × 500 mm.
- Loading height 450 mm.
- Capacity from 20 to 30 baskets/hour.
- PLD cycles: 120 seconds, 180 seconds, continuous cycle and Sanitisation program.

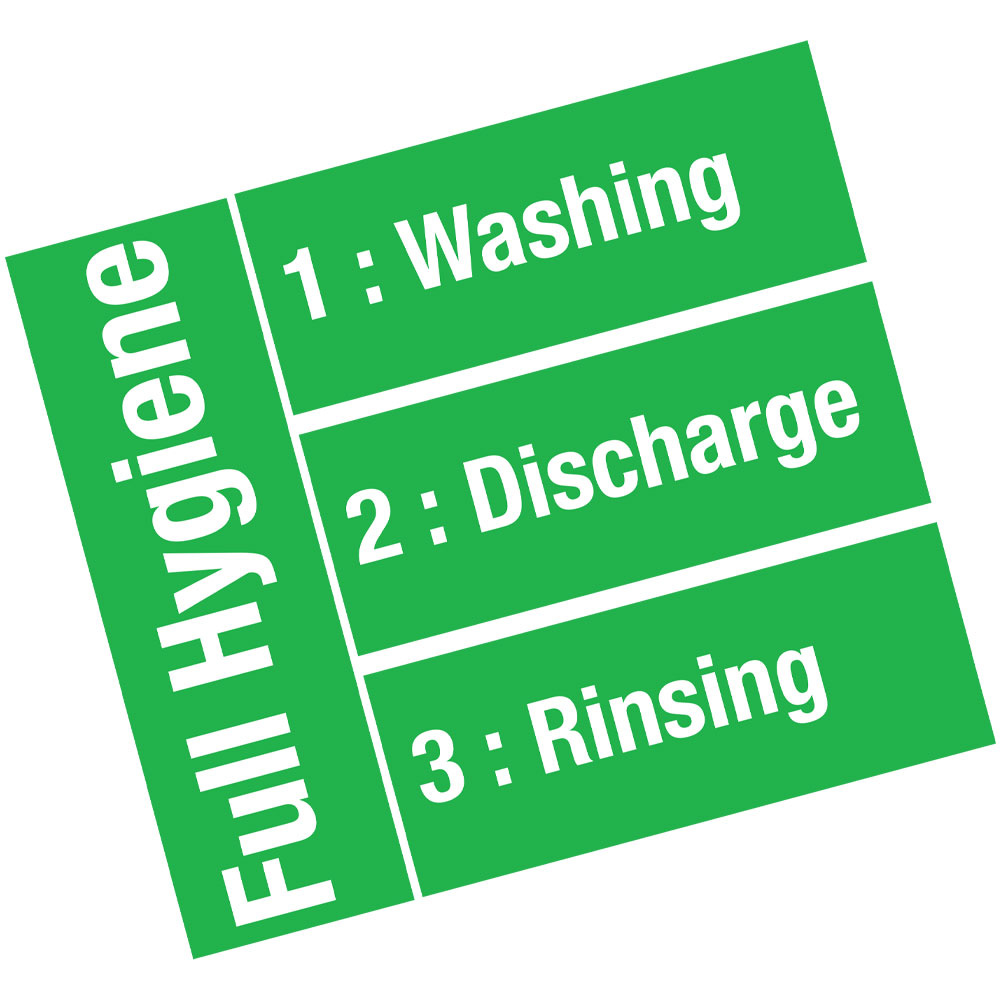

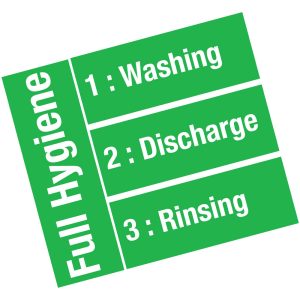

- 3 cycle phases: wash, drain, rinse.
- Standard drain pump.
- Standard rinse booster pump (atmospheric boiler).
- Manufactured in AISI 304 stainless steel.
- Upper and lower rotating wash and rinse arms.
- Self-cleaning nozzles.

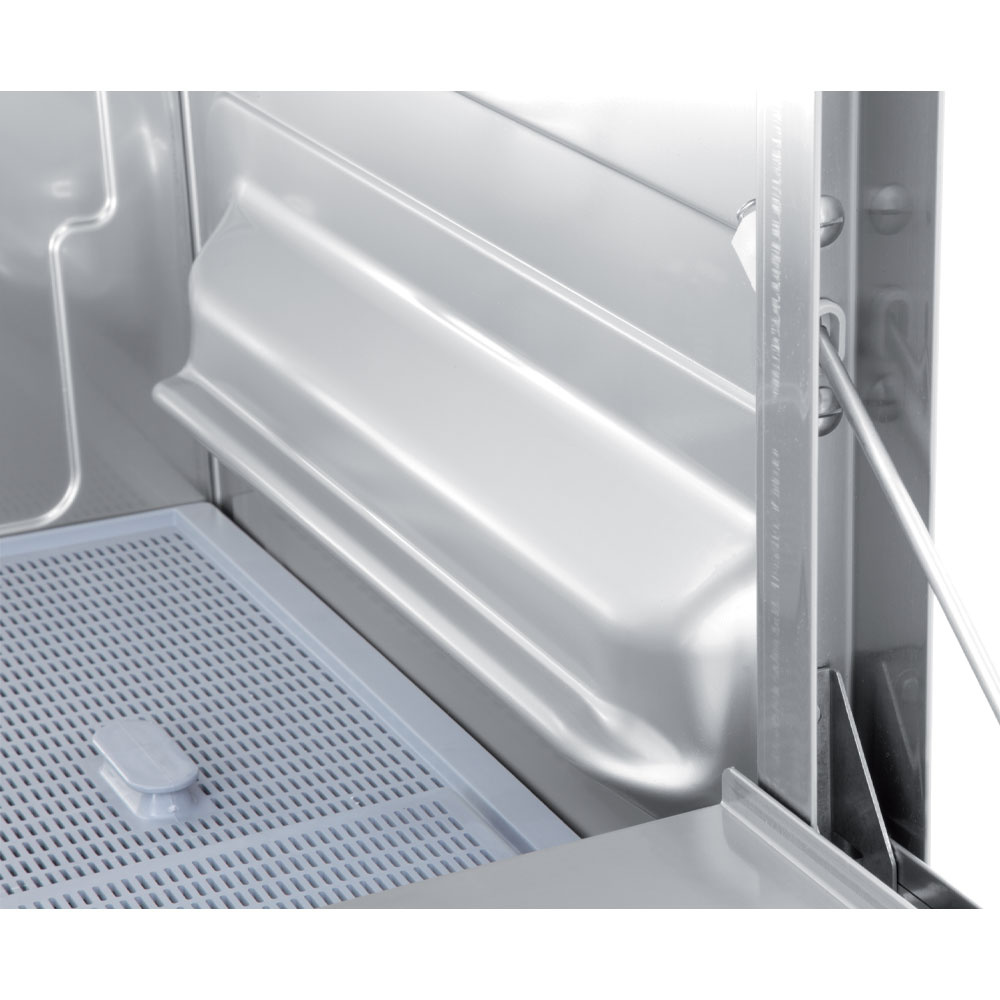

- Fully pressed tank, 15 L capacity, 2.1 kW.
- Integrated composite tank filter.
- External piping to the wash chamber.
- Patented pump filter keeps washing water cleaner for longer and at the correct temperature.
- High-efficiency dual-flow wash pump with low energy consumption.
- Hood opening and closing mechanism with support arms.
- Front-access control panel for easier servicing.
- Adjustable stainless steel feet (160–220 mm).
- Automatic tank draining function controlled from the control panel.
- Automatic tank filling.
- Non-return valve.
- Hot water rinse with water consumption of 2.6 L per cycle.
- Stainless steel atmospheric boiler, 6 L, 6 kW.
- Adjustable tank and boiler temperatures.
- Microswitch stopping the cycle when the hood is opened.
- Safety thermostat.
- Supplied with 1 plate basket, 1 universal basket, 1 cutlery basket, water inlet and drain hose.
PLUS
- Peristaltic rinse aid dispenser and peristaltic detergent dispenser supplied as standard.
- CSD Soft Touch digital control panel.
- EED energy-saving system.
- TCD system ensuring rinsing at 85 °C.
- DRD accelerated preheating phase.
- DID automatic fault diagnosis.
- ADD display of tank and boiler temperatures according to HACCP.
- DDD partial tank draining and bottom water discharge.
- CID Soft Contact automatic hood closing system with partial opening for steam evacuation.
- RGD rinse system with constant temperature and stable pressure.
- BDT Break Tank anti-pollution device, AB type.
- CAD fully automatic self-cleaning cycle.
- Suitable for operation with reverse osmosis systems.
ADVANTAGES – BREAK TANK
- Break Tank system prevents detergent-contaminated water from flowing back into the mains water supply.
- Ensures constant water pressure throughout the entire rinse cycle.
- Hygiene and rinse quality are guaranteed by a constant rinse temperature of 85 °C until the last drop of water.
ADVANTAGES – SAVE THE PLANET
- Advanced technologies designed to reduce energy, water and detergent consumption.
- Patented filtration system keeps washing water cleaner for longer and at the correct temperature.
- High-efficiency dual-flow wash pump reduces operating costs.
- Stable washing performance with low water and energy consumption.
- Long-term reliability and economical operation.
ADVANTAGES – SANITISATION

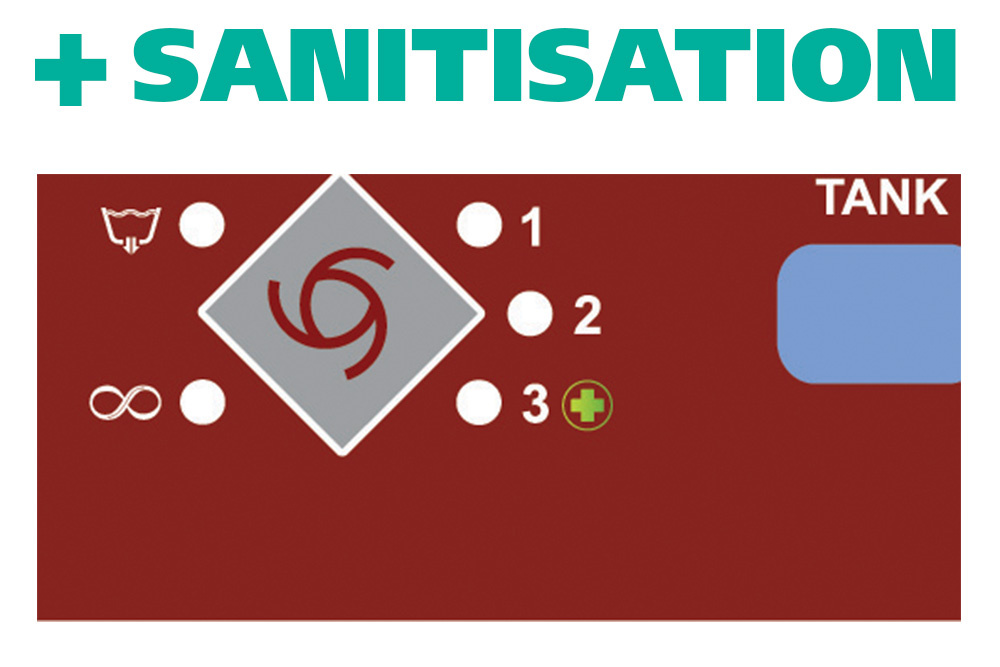

- Sanitisation program provides thermal disinfection of dishes at temperatures above 70 °C.
- Cycle complies with A0 = 30 hygiene index according to EN 15883.
- Ensures elimination of bacteria and microorganisms at a significantly higher level than standard washing cycles.
- Hygiene level achieved is substantially higher than with conventional wash programs.
- Ideal solution for operations with high hygiene requirements.
