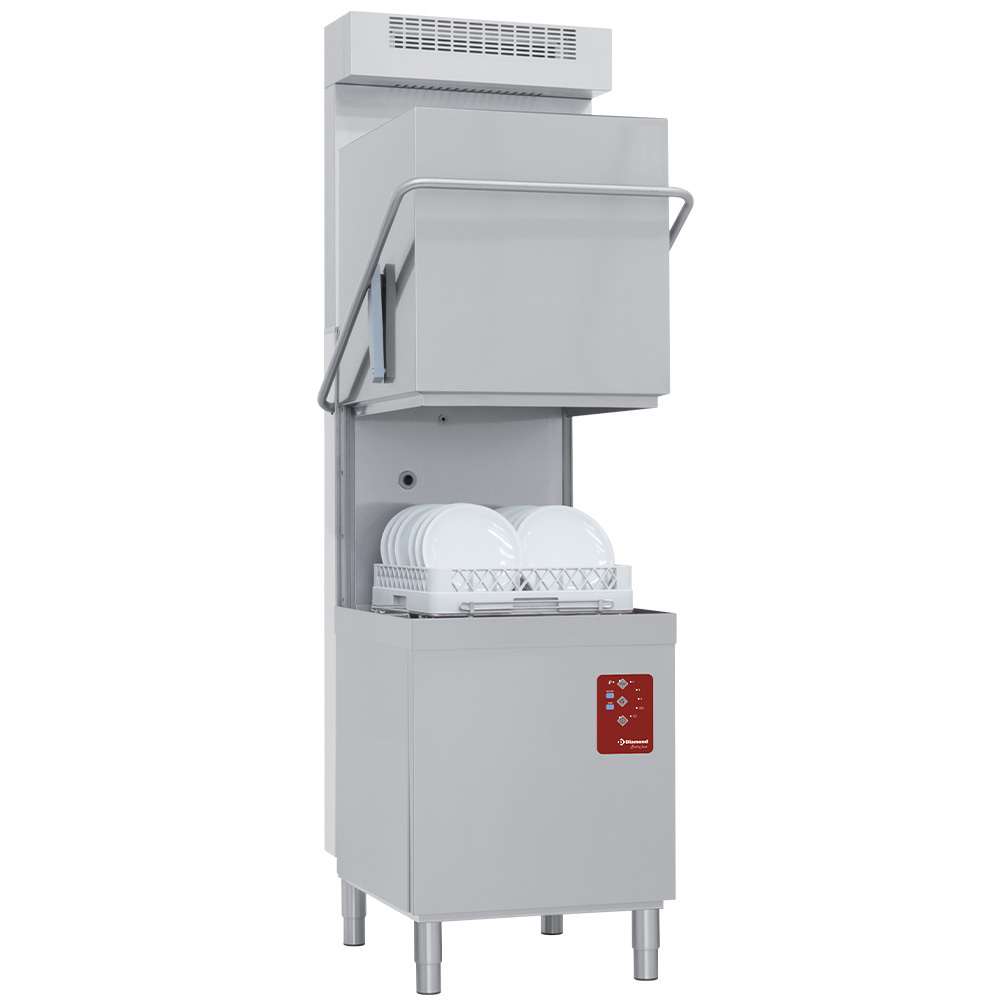

HOOD DISHWASHER WITH H.R.S. + BT D26/6B-RC
- Realisation “double walled”with thermic insulation.

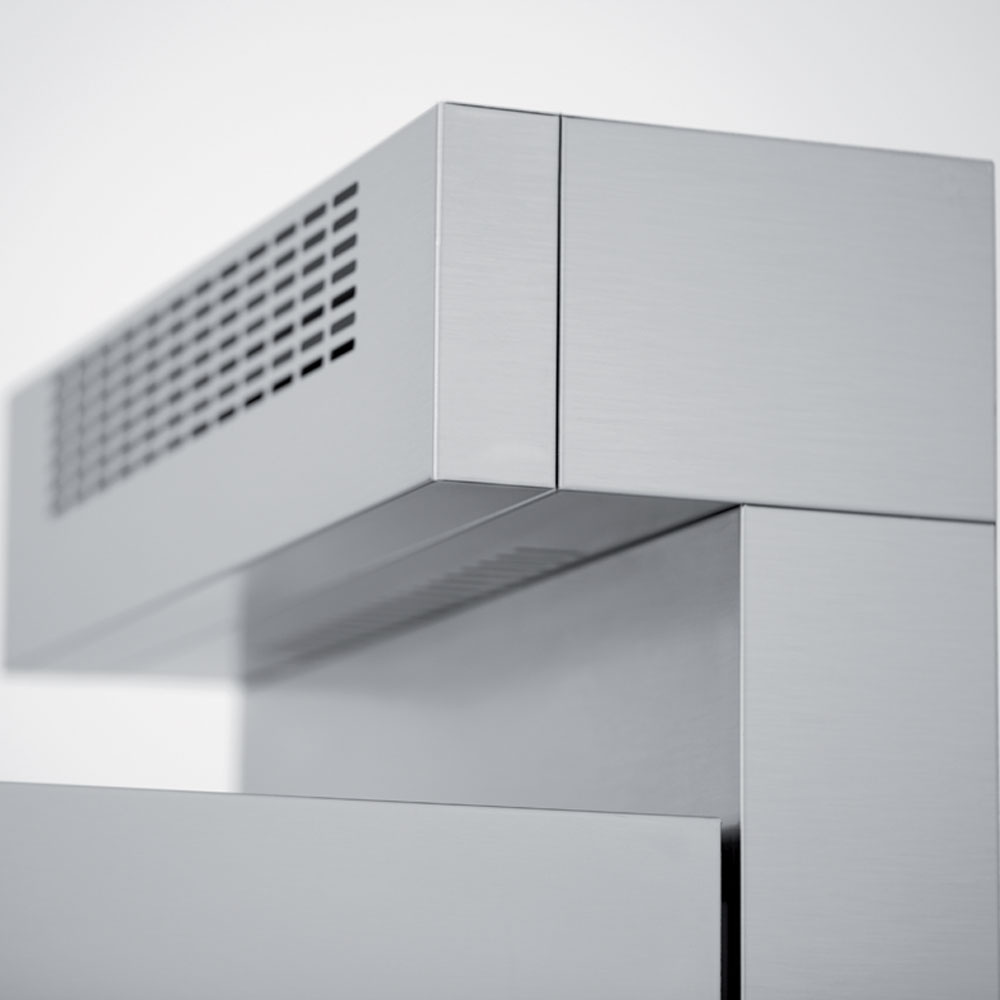

- Integration of the “Green System H.R.S.” Condenser vapor-recovery unit, big energy savings.
- Charging height dishes diam. 450 mm.
- Basket 500×500 mm.
- 3 cycles 60” – 120″-180″ or continuous.
- Device opening and closing cover on connecting rods
- Vertical wash pump (dual flow), self-draining and self-cleaning.
- Rotating wash and rinse arms.
- Self cleaning sprinklers.
- Adjustable stainless steel feet (160-220 mm).
- Front control panel.
- Automatic filling of the tank.
- Check valve.
- Hot water rinse, stainless steel boiler (12 Lit., 8 kW).
- Micro switch, when the door opens.
- Safety thermostat.
- Predisposition kit “rinse pump” and kit “liquid soap dispenser”.
- Manufactured in stainless steel AISI 304.
- Delivered with: 3 baskets, 1 goblet.
- NB: machines guaranteed for “osmosis” water supply
ADVANTAGE – H.R.S.:

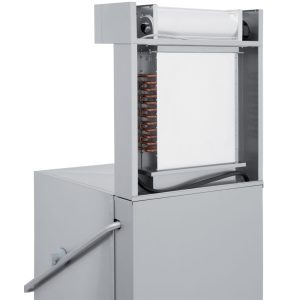

- Warmth and steam recuperation system consisting of: a battery with double flow warmth-exchanger, heats up by crossing the cold water with the steam coming from the washing chamber.
- Low running costs: the water T° rises up to 25°C, the result is a 38-% saving of electric energy.
- Healthier work environment: by eliminating humidity emission in the environment, no more steam saturated of humidity up to 60°C.
- Easy installations: no need to install an additional hood to eliminate the steam, no extra sanitary or electrical connections needed!
- NB Not compatible with Osmose.
ADVANTAGE – BREAK TANK :
- The “break tank” is an AB type “anti-pollution” device (UK standards)
- It prevents the tank water (with detergents) to flow back into the distribution system
- Its pump guarantees a constant pressure during the whole rinsing, the drying and hygiene are guaranteed by a T° of 85°C… until the last drop of water!
PLUS:
- Fully “pressed” tank, double wall (2,5 kW).
- – “Integrated” tank’s filter in stainless steel.
- “Patented” pump filter allowing to conserve the washing water longer and at good temperature.
- “Peristaltic” pump dispenser for rinse product.
- CSD digital control panel (soft touch).
- EED energy saving.
- DRD accelerated preheating phase.
- DID automatic diagnostic in case of problems.
- ADD display of boiler and tank temperature (HACCP conform)
- RGD Constant rinsing T° of 85°C, stable pressure during all the rinsing cycle.
- BTD “Break Tank” anti-pollution device, AB type.
