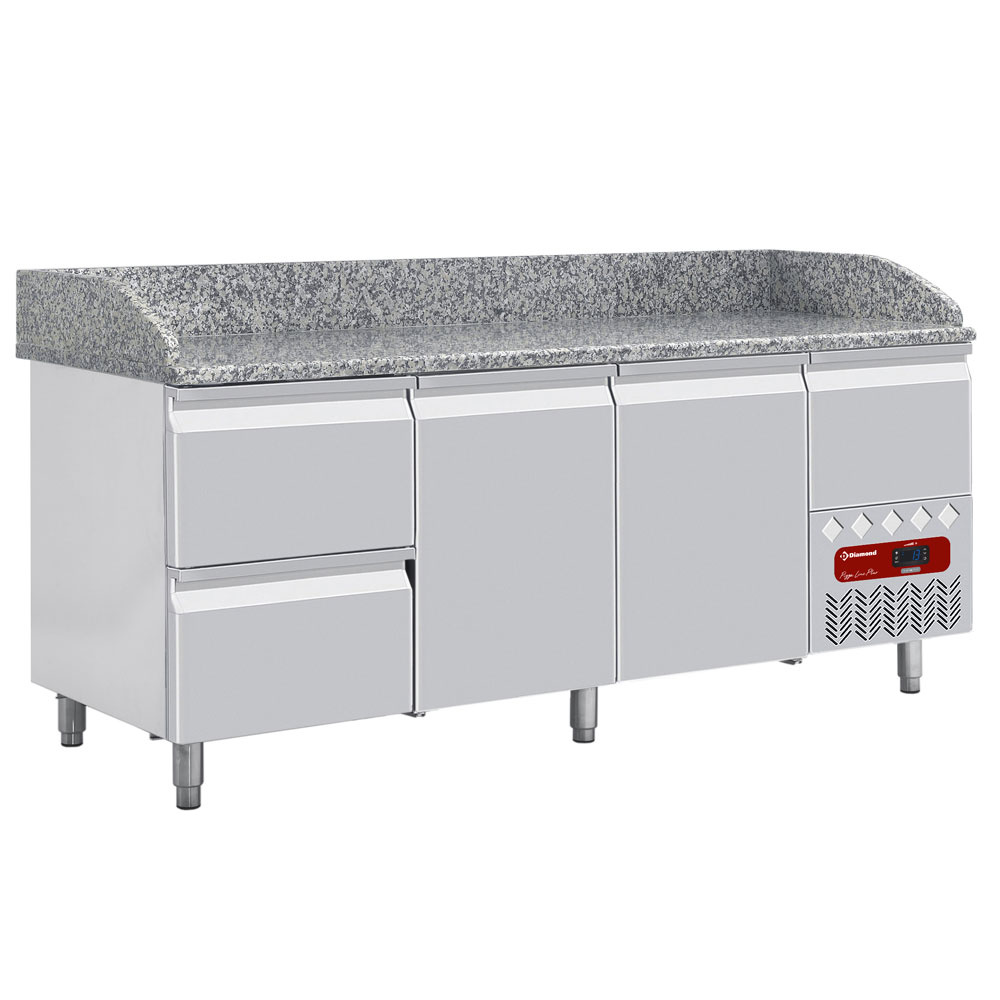

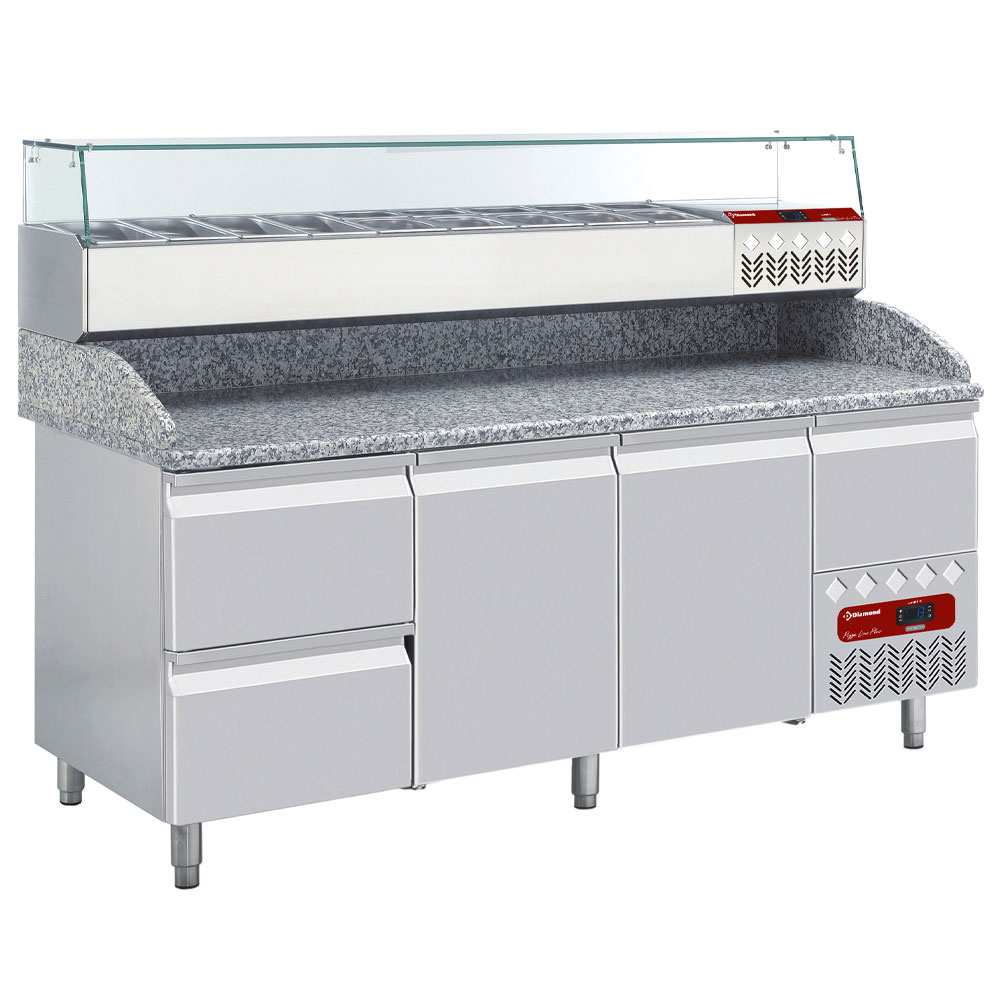

REFRIGERATED TABLE SET TP261/P9_SY198G/PP9
- 1 drawer for utensils placed over the group.
- Included: 4 pairs of slides “EURONORM” by door (trays 600×400).
- 2 neutral drawers on telescopic slides (capacity 4x trays 600×400 + 4 trays 600×400 = total of 8), maximum height of the trays (70 mm).
- Storeroom 415 liters with 1 ventilated-static evaporator.
- 4 adjustable stainless steel feet.
- NB: delivered without trays 600×400 mm.
- Monocoque design
- Worktop of granite (white Porinho), thickness 30 mm (processed food), with “beveled” edges, rounded front edge and backsplash at the sides and back (150 mm), also made of granite.
- Manufactured in stainless steel, inside AISI 304, outside AISI 441 (back also in stainless steel AISI 441).
- Stamped interior bottom, rounded angles and corners (without roughness).
- Stainless steel “L” rack and slides.
- Doors (EURONORM) with ergonomic handle (no salient), also reversible (kit is not necessary), “snap-fit” closure by magnetic joint (easy replacement without tools), hinges with stopping at 100° and closing of the doors with automatic recall.
- Neutral drawers for the dough roll, easily removable, easy maintenance.
- Electronic regulator (under closed box, waterproof), control front screen with blue LED.
- Over-sized evaporator(s), ventilated or static), placed between the doors.
- Climate class 5 compressor unit (40°C Temperature – 40% humidity), incorporated in the cabinet (right), ventilated condenser.
- Frontal accessibility of the compressor group, easy inspection.
- Refrigerant R290.
- Intern lighting, with switch.
- Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will).
- Condenser’s automatic evaporation.
- Polyurethane insulation without CFC (60 mm).
- The equipment is manufactured following the (CE) standards in force.

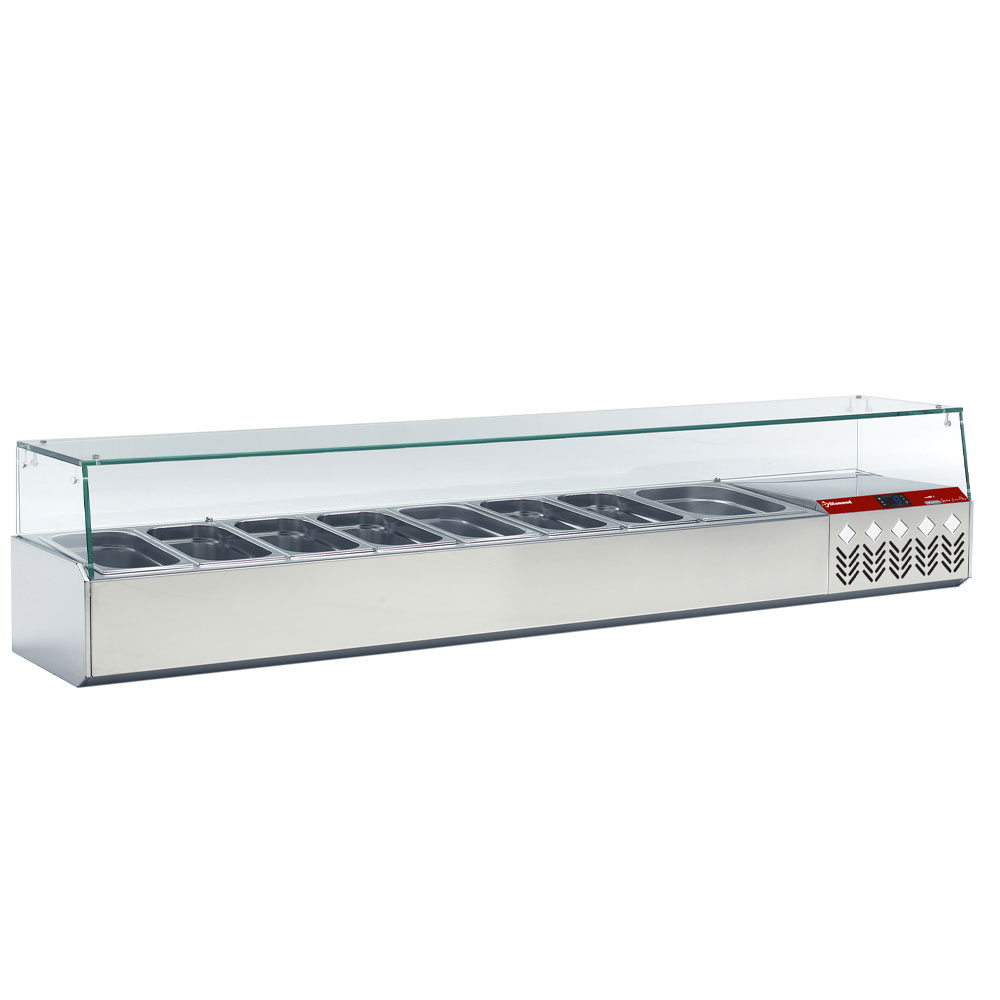

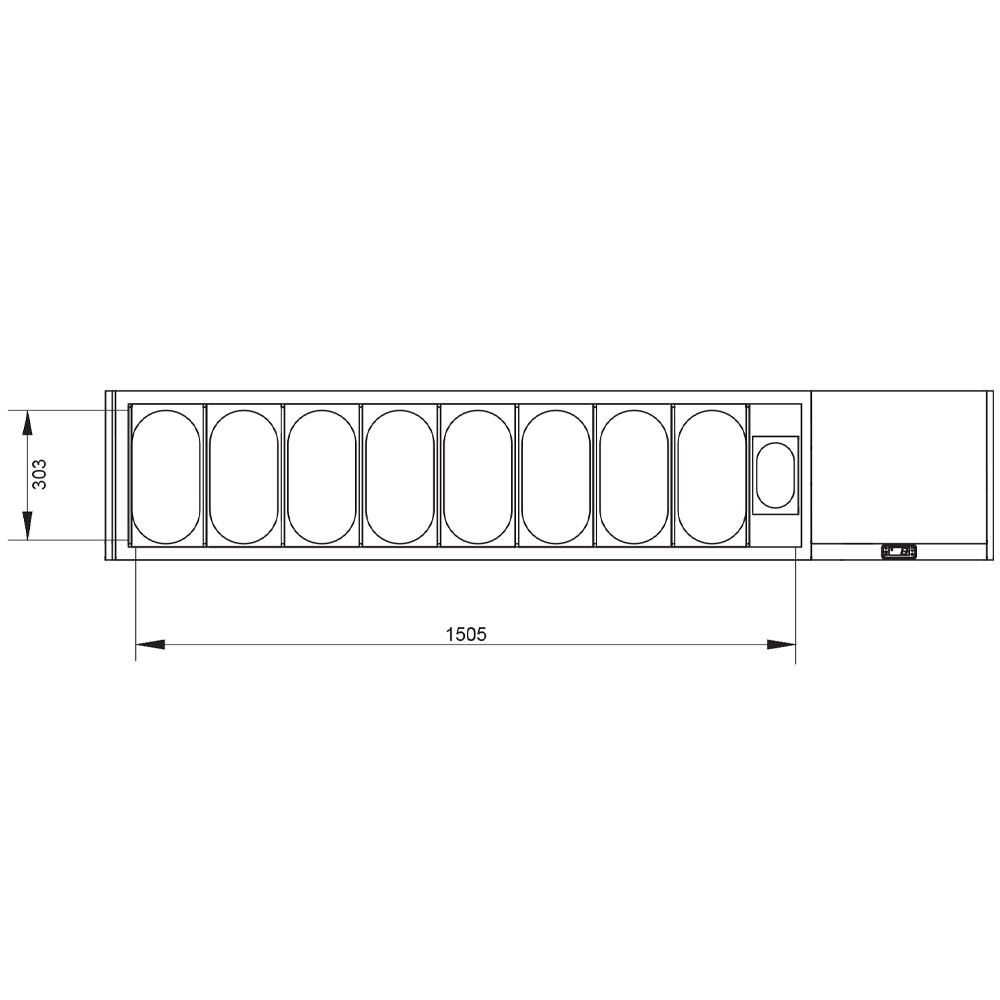

REFRIGERATED STRUCTURE WITH RIGHT GLASS SY198G/PP9
- Capacity: GN 8x 1/3, 1x 1/9 h150 mm
- NB: delivered without GN trays.
- Inside and outside manufactured in stainless steel AISI 441.
- Frontal, upper and lateral “toughened” glass protection , thickness 10 mm.
- Compressor unit in climate class 4 , built-in the (right) board, ventilated condessor.
- Evaporator at copper coil, embedded in the walls.
- Expanded polyurethane insulation (without CFC).
- Refrigerant R290.
- Automatic defrosting, number of defrosting programmed by the factory (modifiable at will).
- Electronic regulator (under closed box, waterproof), front screen control with blue LED.
- Support strip trays GN 1/6 and 1/9 standard delivered .
