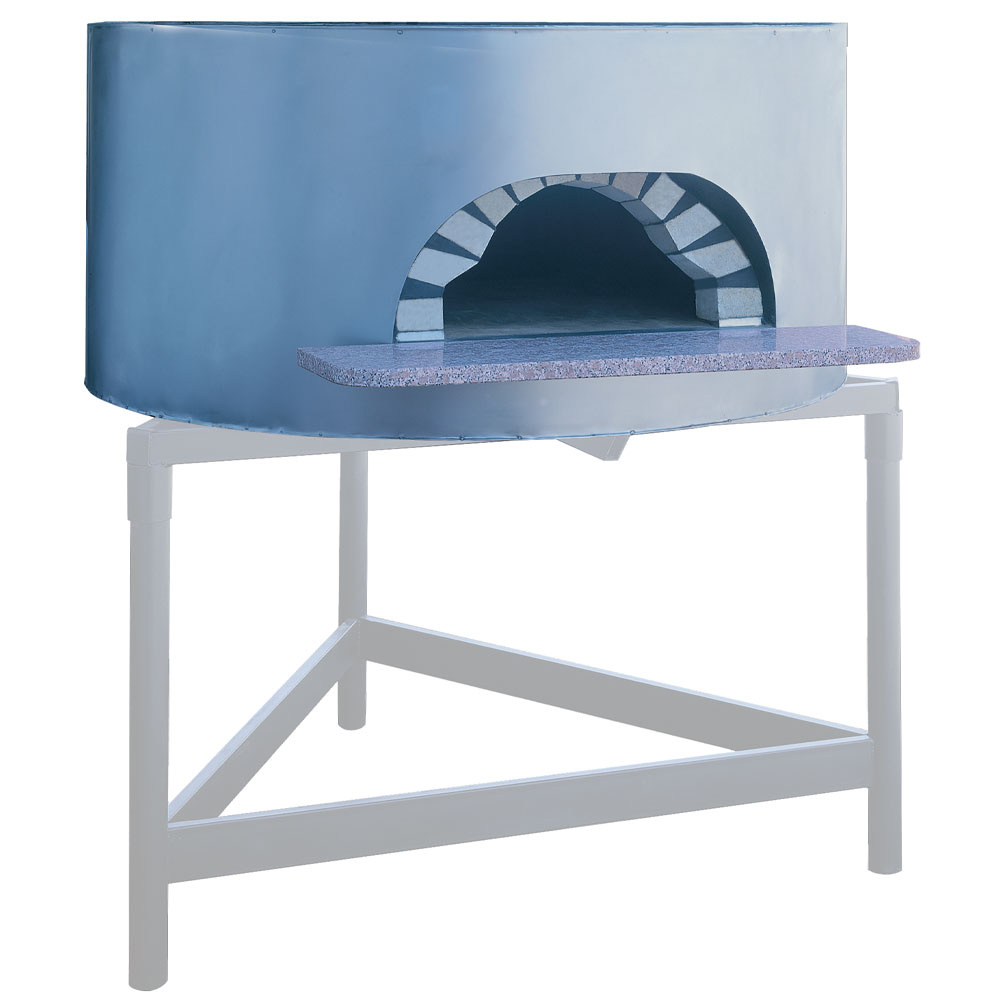

WOOD FIRED PIZZA OVEN Ø 1300 MM FBK-1300/MONT
- Wood fired pizza oven Ø 1300 mm, pre-assembled design for installation.

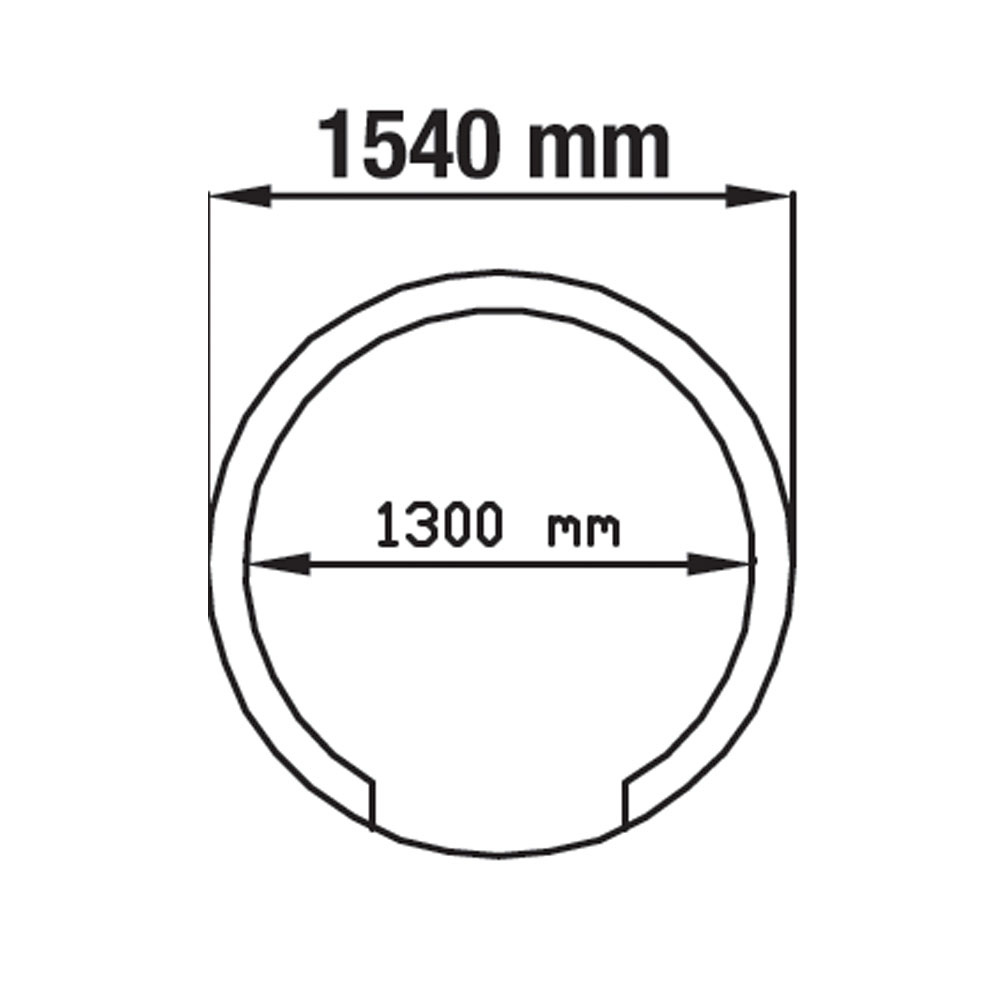

- Capacity: 6–7 pizzas Ø 300 mm, internal diameter 1300 mm.
- Entrance arch width: 540 mm.
- Circular painted steel frame with base for installation.
- Insulation layer.
- Refractory base plate.
- Refractory dome.
- Surrounding work surface in “porino” granite.
- Entrance arch in refractory bricks.
- Chimney connection.
- Assembly components in refractory cement (1400 °C).
INFO:
- Base unit intended for insulation, installation and final finishing according to project requirements.
- Insulation layer (e.g. rock wool) required between oven structure and external finishing.
- Chimney outlet must be round or square.
- Natural draft operation without mechanical extraction.
- After installation, preheating required for 48 hours at low temperature.
- Optional gas burner BVR-29 available.
TRANSPORT AND INSTALLATION:
- Delivered pre-assembled and ready for installation.
- Supplied on pallet.
- Handling by crane, forklift or pallet truck.
- Access doorway must match oven dimensions.
- Structure designed for transport without additional packaging.
- If installation of pre-assembled unit is not possible, COMPONENTS KIT FBK-1300 recommended for on-site assembly.
- Minimum doorway width required: 1600 mm.
