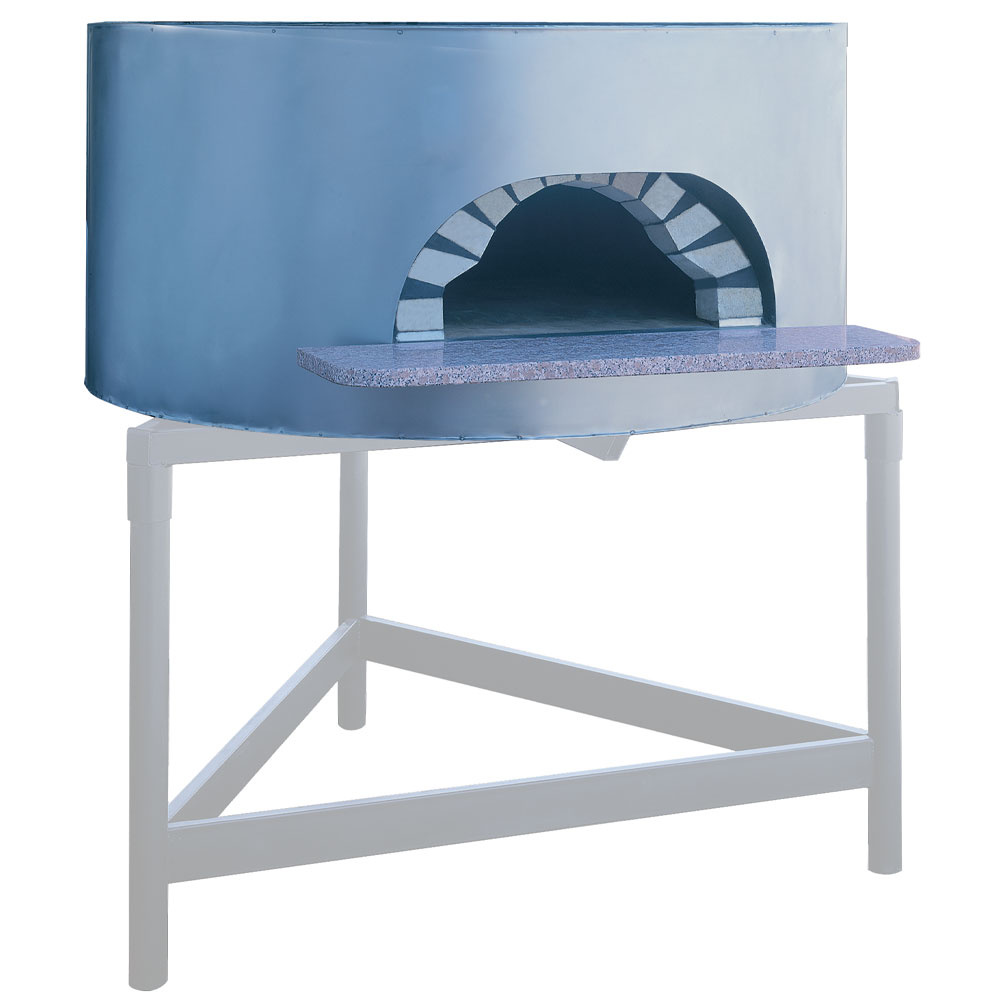

WOOD-FIRED PIZZA OVEN FBK-1540/MONT
- Traditional wood-fired pizza oven Ø 1540 mm, pre-assembled.
- Capacity: 10–12 pizzas Ø 300 mm, internal diameter 1540 mm.
- Entrance arch width: 540 mm.
- Circular painted steel frame with base for installation.
- Insulation layer.
- Refractory base plate.
- Refractory dome.
- Surrounding work surface in “porino” granite.
- Entrance arch in refractory bricks.
- Chimney connection.
- Assembly components in refractory cement (1400 °C).
INFO:
- Base unit designed for insulation, installation and final finishing according to the specific project.
- Insulation material (e.g. rock wool) must be applied between the oven structure and the external finishing.
- Chimney outlet must be round or square.
- Natural draft operation without mechanical extraction.
- After installation, the oven must be preheated for 48 hours at low temperature.
- All ovens can be equipped with gas burner BVR-29.
TRANSPORT AND INSTALLATION:
- Oven is assembled by the manufacturer and delivered ready for installation.
- Supplied on pallet.
- Handling possible by crane, forklift or pallet truck.
- Entrance doorway must match the dimensions of the selected model.
- Structure designed for safe transport without additional packaging.
- If installation of the pre-assembled mono-block is not possible (access limitations or handling restrictions), COMPONENTS KIT FBK-1540 is recommended for on-site assembly.
- Minimum doorway width required for component access: 2000 mm.
