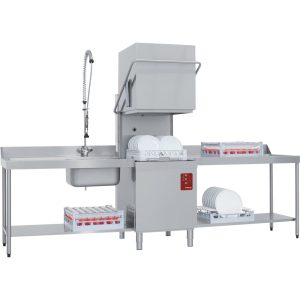

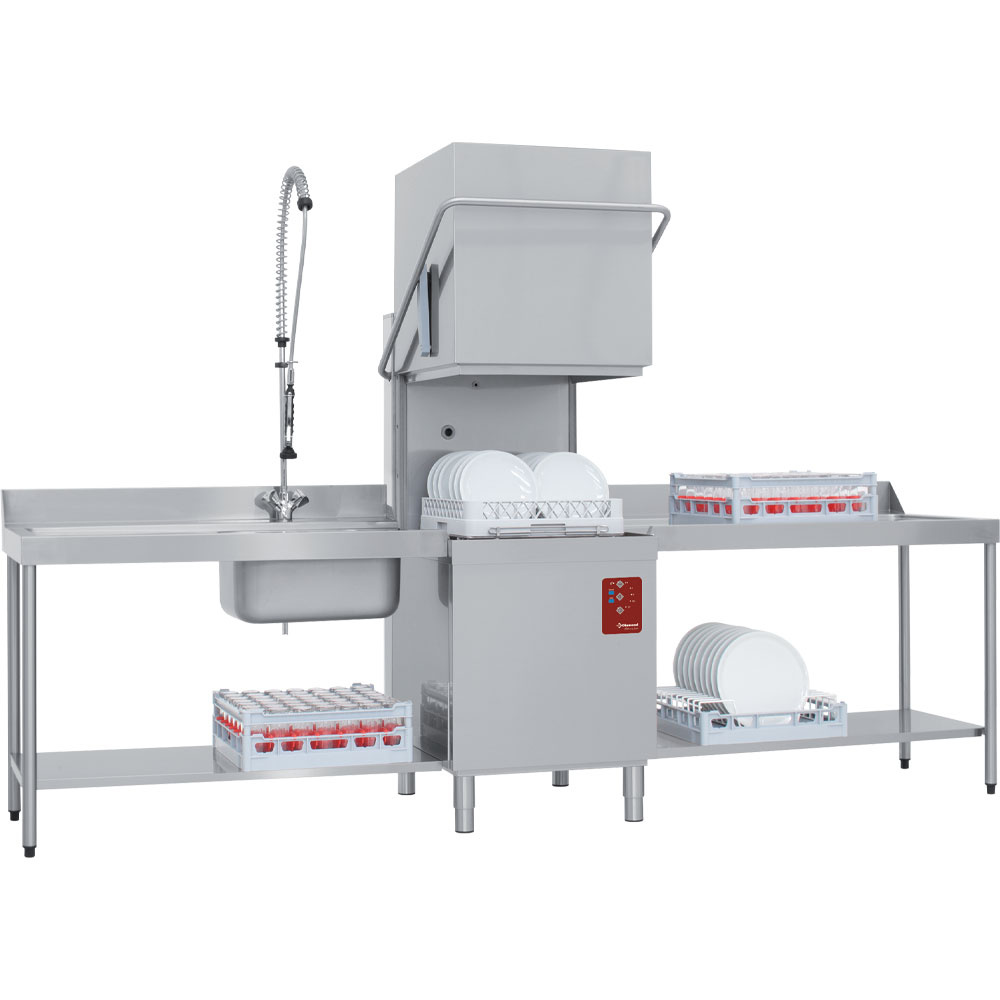

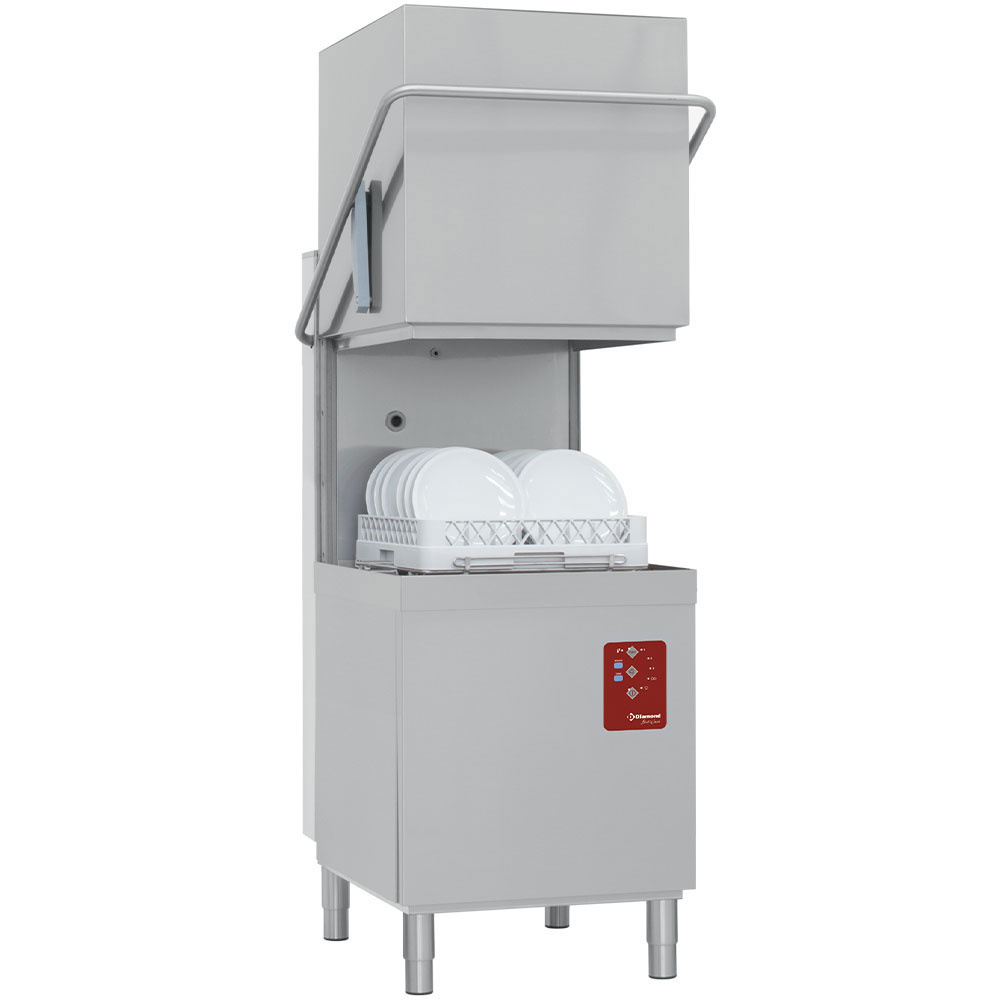

HOOD DISHWASHER + BREAK TANK D26/6B
- Hood dishwasher with integrated Break Tank system.
- Basket size: 500 × 500 mm.
- Double-wall insulated construction.
- Loading height 450 mm.
- Capacity from 24 to 60 baskets/hour.
- 3 wash cycles: 60, 110 and 150 seconds or continuous operation.
- Hood opening and closing mechanism with support arms.
- Vertical dual-flow wash pump with self-draining and self-cleaning function.

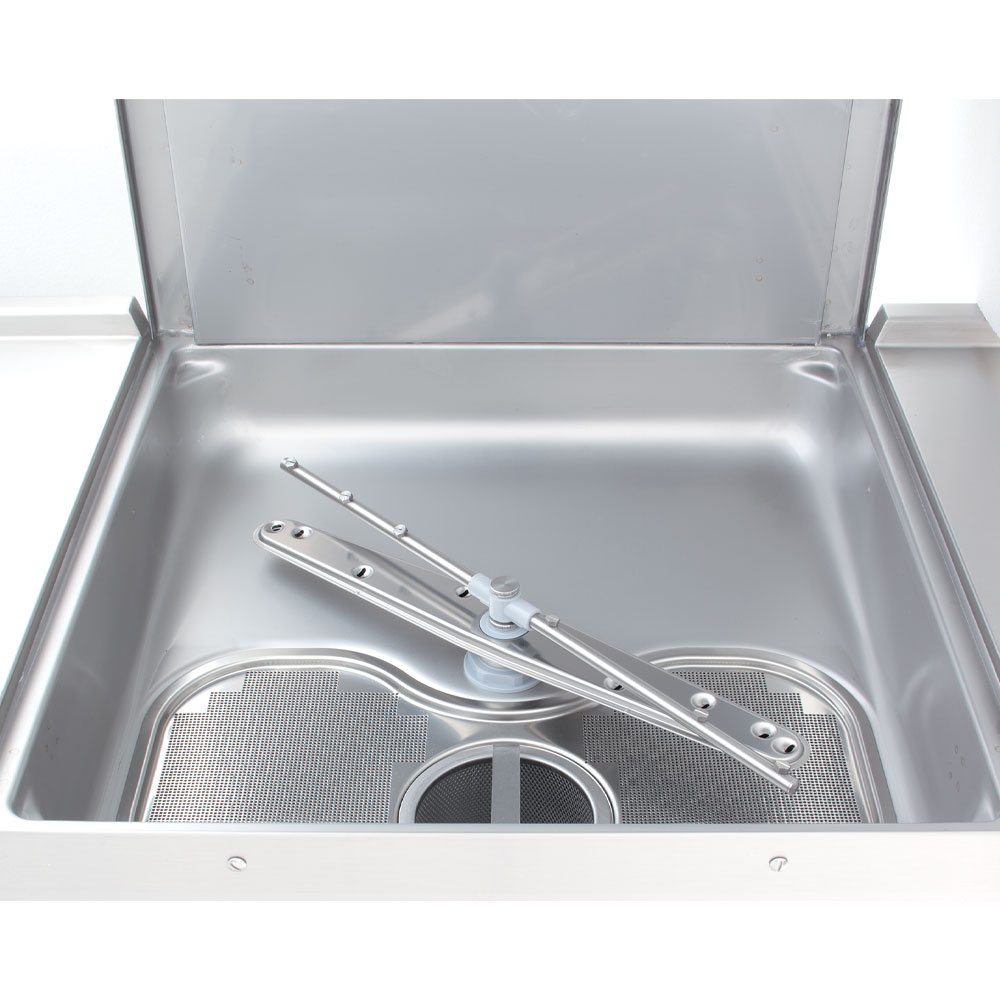

- Upper and lower rotating wash and rinse arms.
- Self-cleaning nozzles.
- Adjustable stainless steel feet (160–220 mm).
- Front control panel.
- Automatic tank filling.
- Non-return valve.
- Hot water rinse.
- Stainless steel pressure boiler, 12 L, 8 kW.
- Microswitch stopping operation when the hood is opened.
- Safety thermostat.
- Manufactured in AISI 304 stainless steel.
- Supplied with 2 baskets and 1 cutlery basket.
PLUS
- Fully pressed double-wall tank, 2.5 kW.
- Integrated stainless steel tank filter.
- Peristaltic rinse aid dispenser supplied as standard.
- Optional peristaltic detergent dispenser and drain pump.
- Patented pump filter keeps washing water cleaner and at the correct temperature for longer.
- CSD Soft Touch digital control panel.
- EED energy-saving system.
- DRD accelerated preheating phase.
- DID automatic fault diagnosis.
- ADD display of tank and boiler temperatures according to HACCP.
- RGD rinse system ensuring constant 85 °C rinse temperature and stable pressure.
- BTD Break Tank anti-pollution device, AB type.
- Suitable for operation with reverse osmosis systems.
ADVANTAGES – BREAK TANK
- Break Tank system prevents backflow of water from the tank into the mains water supply.
- Ensures stable water pressure throughout the entire rinse cycle.
- Hygiene and rinse quality are guaranteed by a constant rinse temperature of 85 °C until the last drop of water.
ADVANTAGES
- Double-wall insulated construction reduces heat loss.
- Patented filtration system keeps washing water cleaner and at the correct temperature for longer.
- Vertical dual-flow wash pump reduces energy consumption and operating costs.
- Stable washing performance with low water and detergent consumption.
- Reliable operation even under intensive daily use.
