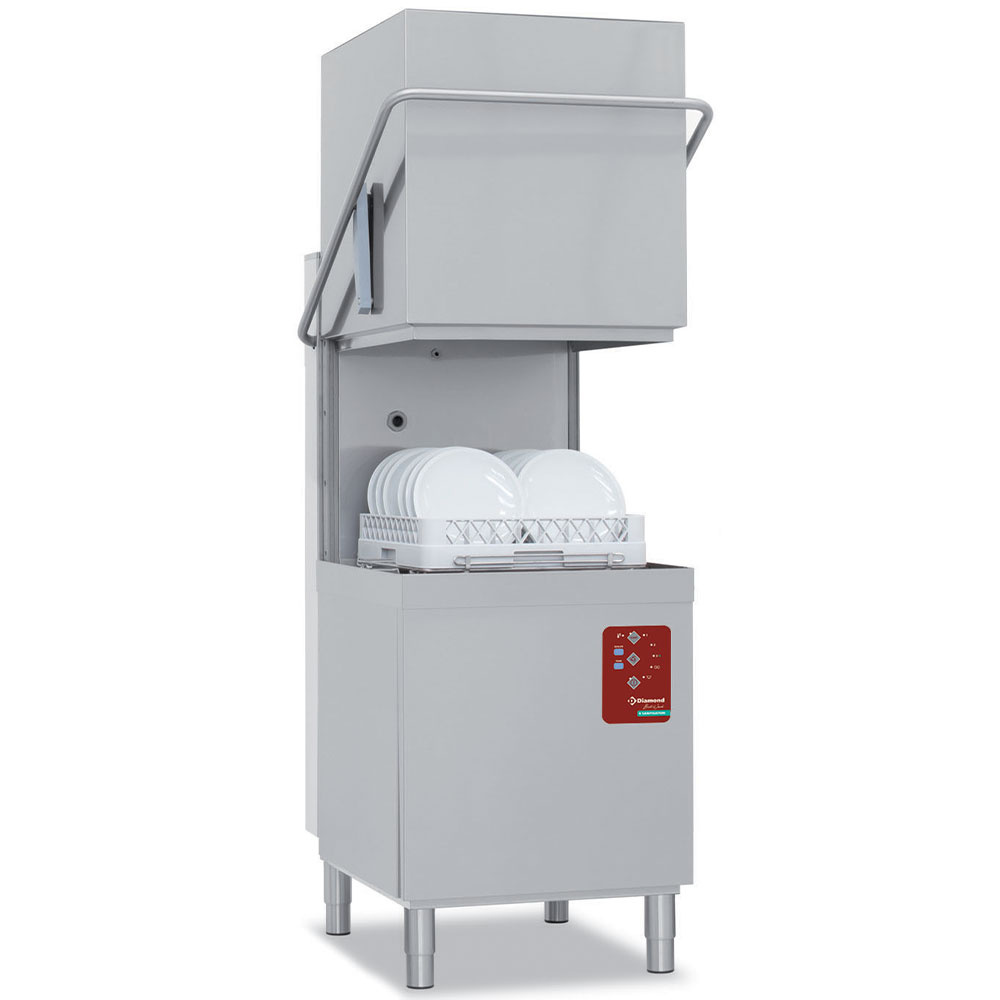

HOOD DISHWASHER DCS9/6
- “Full Hygiene”.
- Height of plates load 450 mm.
- From 30 till 20 baskets/hour, PLD cycle 110″, 150″, continuous and ” Sanitisation”.
- 3 phases: wash, unload, rinse.
- Standard discharge pump.
- Standard rinse pump (atmospheric boiler).
- Build: double skinned entirely in stainless steel AISI 304.
- Wash and rinse arms, upper and lower, rotating, lower in “molded” stainless steel, upper in “molded” polypropylene.
- Self cleaning sprinklers in stainless steel.

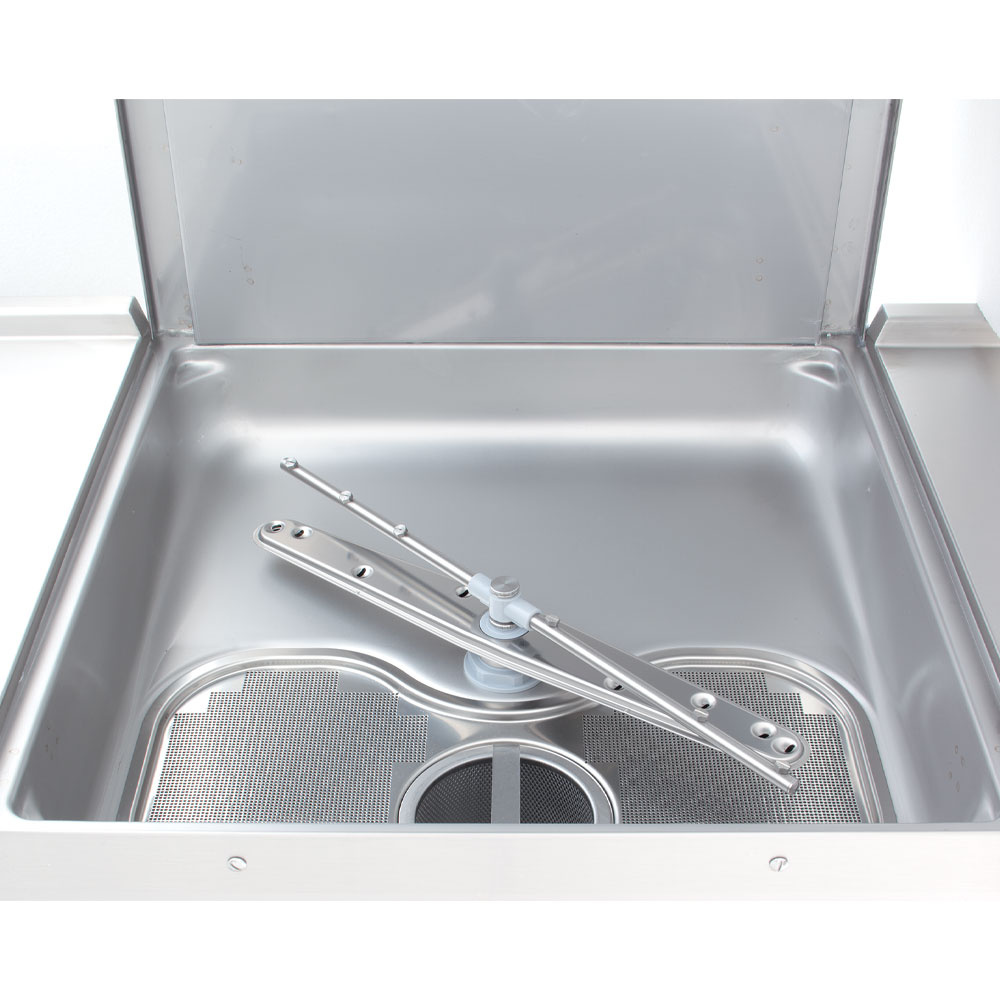

- Entirely stamped tank (20 lt – 2,5 kW). “Integral” filter tank, in “molded” stainless steel.
- Pipes located outside the wash chamber. Stamped walls.
- Double filter of the pump in polypropylene.
- Vertical wash pump (double flow), self-draning and self-cleaning 0,95 Hp (230V/1).
- Stamped double skin hood, device opening and closing cover on connecting rods.
- Removable control panel for easy maintenance.
- Adjustable feet (160-220 mm).
- Function automatic water discharge tank, integrated in the control panel (no need to remove the plug manually).
- Automatic tank fill.
- Anti-return valve.
- Hot water rinse (water consumption per cycle 3 liters), stainless steel boiler (12lt – 8 kW).
- Tank and boiler temperature regulator.
- Micro switch for ending cycle at opening of hood.
- Security thermostat.
- Standard : 1 basket for plates, 1 general basket, 1 goblet, connection tube to main water supply and discharge tube.
ADVANTAGE – BREAK TANK :
- The “break tank” is an AB type “anti-pollution” device (UK standards)
- It prevents the tank water (with detergents) to flow back into the distribution system .
- Its pump guarantees a constant pressure during the whole rinsing, the drying and hygiene are guaranteed by a T° of 85°C… until the last drop of water!
ADVANTAGE – SAVE THE PLANET :
Latest generation machines, avant-garde technologies respectful of the planet, low energy, water and detergent consumption, thanks to a more contained tank and to its “patented” filter allowing to keep the washing water at the right temperature, as well as a high efficiency washing pump (double flow).
PLUS:
- “Peristaltic” dispenser of rinse product and “peristaltic” liquid detergent dispenser supplied as standard.
- CSD digital control panel (soft touch).
- EED energy saving.
- TCD thermostat control for a final rinse at 85 ° C.
- DRD accelerated preheating phase.
- DID automatic diagnostic in case of problems.
- ADD display of boiler and tank temperature (HACCP conform).
- DDD partial draining of the tank, evacuation by the bottom of the tank.
- RGD Constant rinsing T° of 85°C, stable pressure.
- BTD “Break Tank” anti-pollution device, AB type.
- CAD cycle auto-cleaning
- NB : all the machines from this range are guaranteed for use with water that has been treated with osmosis.
ADVANTAGE – SANITISATION :
- This new sanitation program offers an additional guarantee thanks to a thermal disinfection phase during which the dishes are brought to a temperature of over 70 °C and remain there for a sufficient time to reach an A0 lethality index of over 30 (sanitary standard EN 15883).
- This standard guarantees the elimination of certain classes of germs and bacteria.
- This “A0” value can be set as required and the cycle time is automatically adjusted accordingly.
- The level of hygiene achieved with this cycle is therefore much higher than that which a traditional washing cycle can offer.
