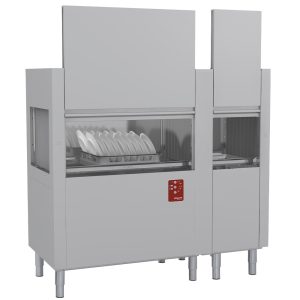

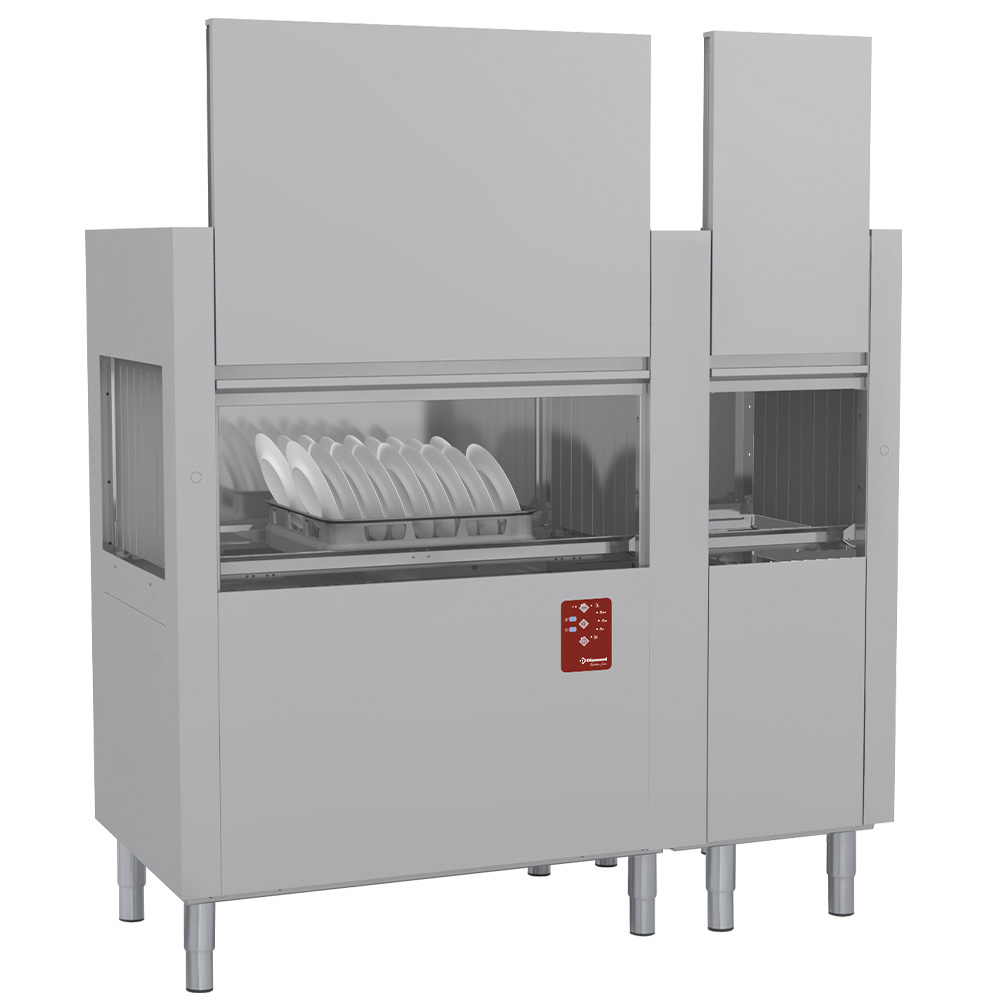

RACK CONVEYOR DISHWASHER DATIC20E/7-DX-
- Rack conveyor basket dishwasher DATIC20E/7-DX- is a professional appliance designed for continuous dishwashing in operations with a high processing volume.
- Model belongs to the technologically advanced TRACTION LINE PLUS range and is designed for stable operation, high performance, and reliable hygienic results.

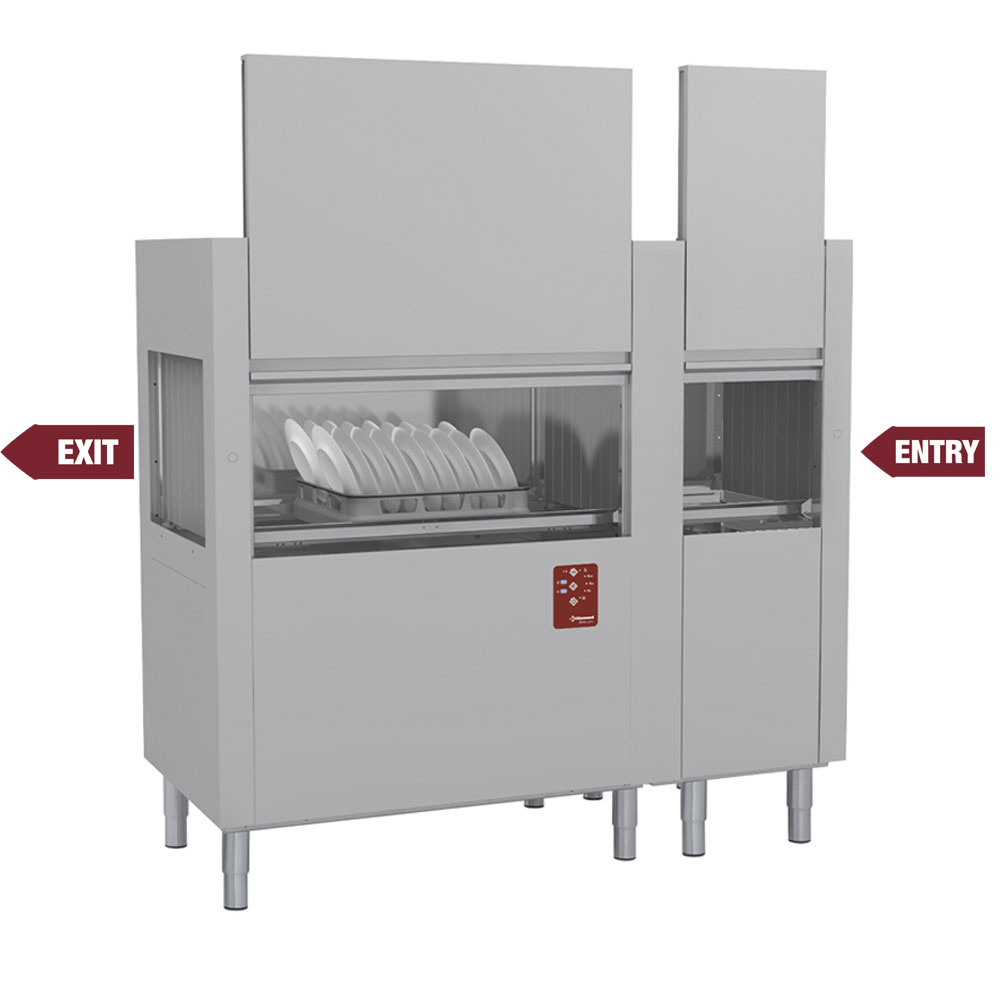

- Dishwasher is configured with a right-hand entry, allowing integration into existing washing lines according to the layout of the operation.
- Construction is adapted for smooth basket flow and compatibility with inlet and outlet tables in linear or angular configurations.
- Equipped with an automatic conveyor belt system with three operating speeds.
- Machine achieves a productivity of 200 baskets per hour at maximum speed, 150 baskets per hour at medium speed, and 95 baskets per hour at minimum speed.
- Appliance is designed for standard baskets measuring 500 × 500 mm.

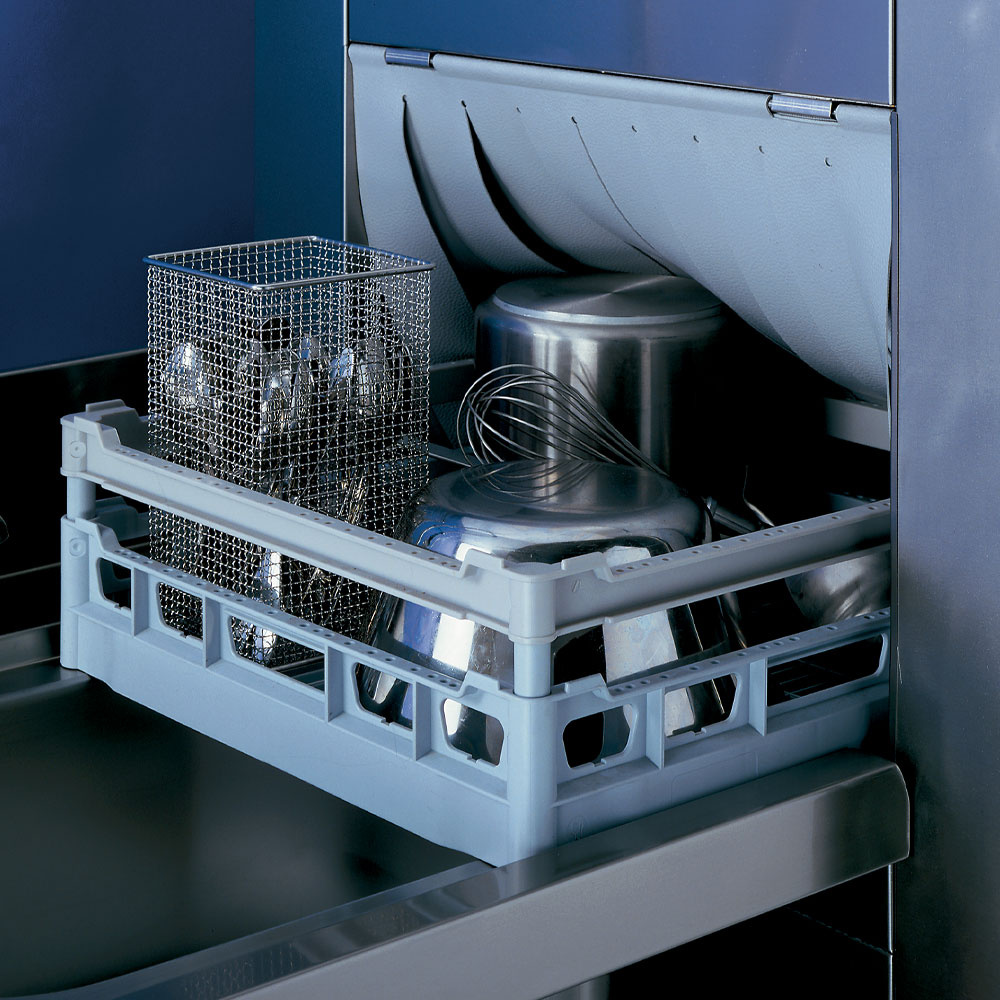

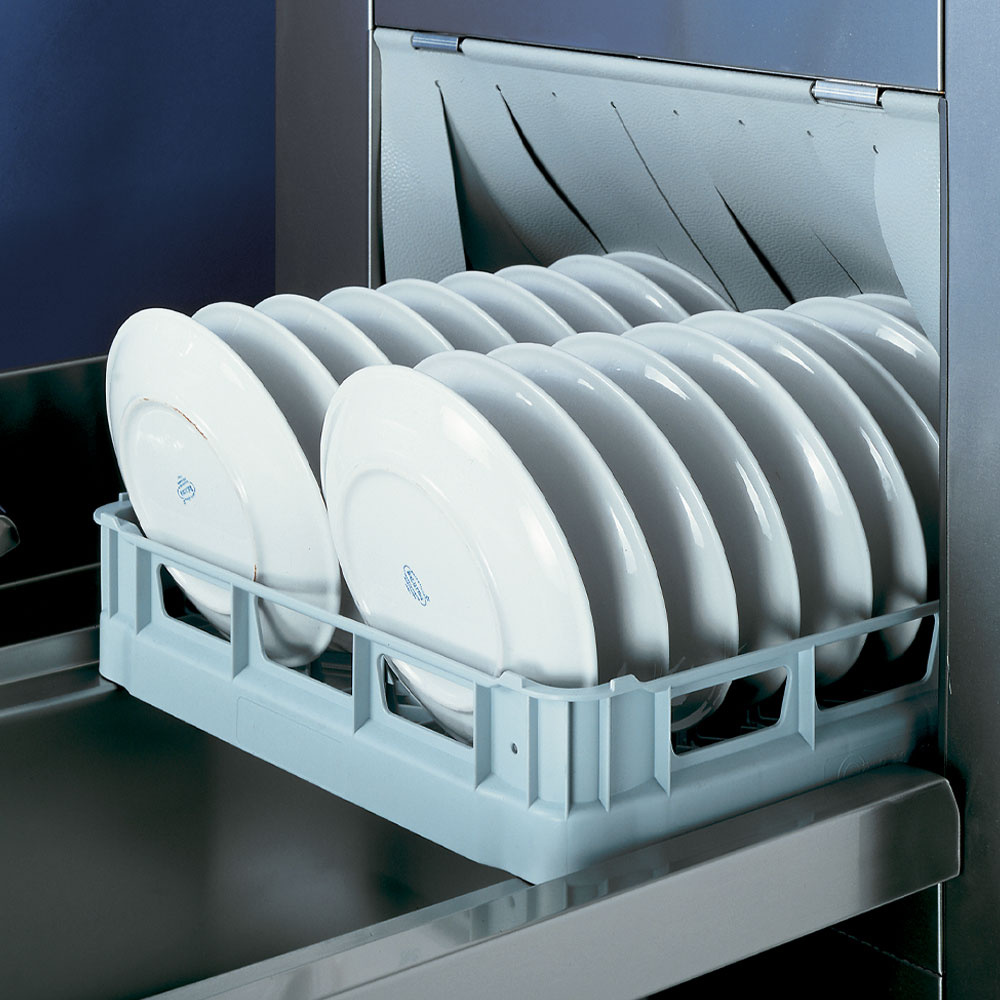

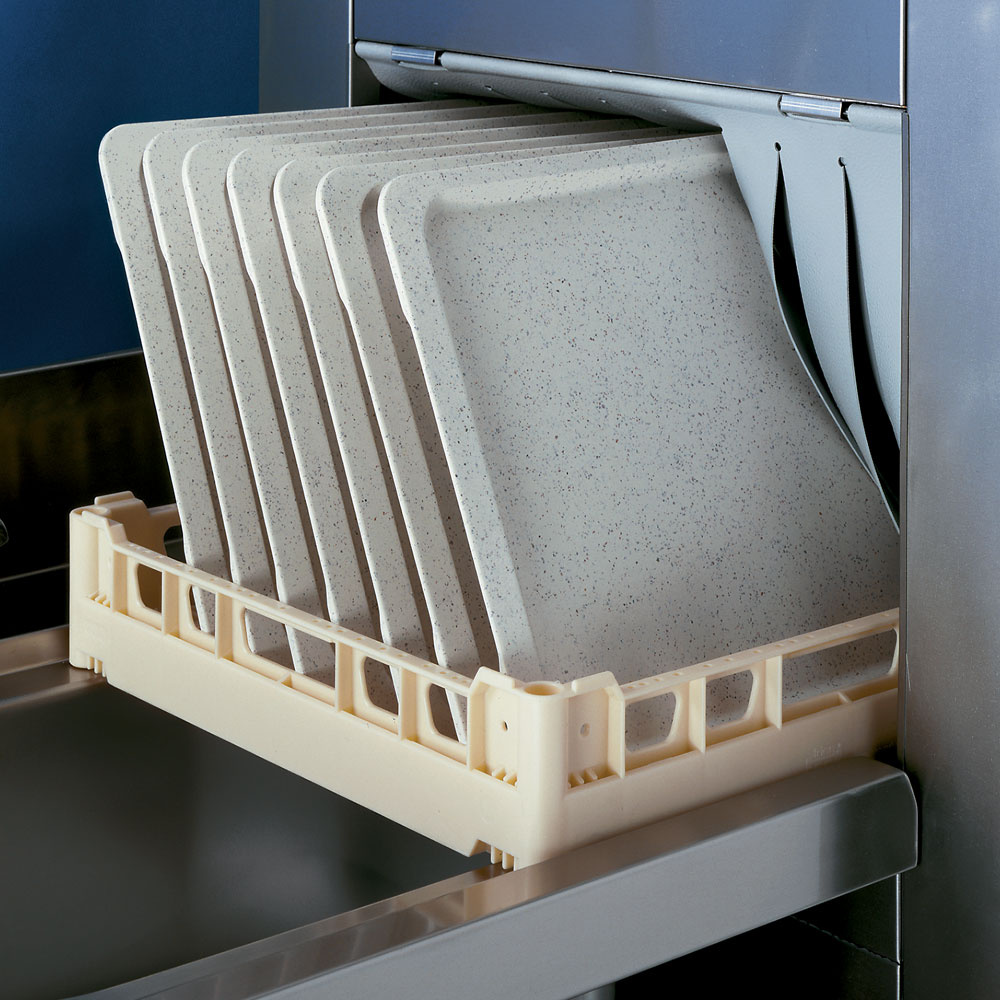

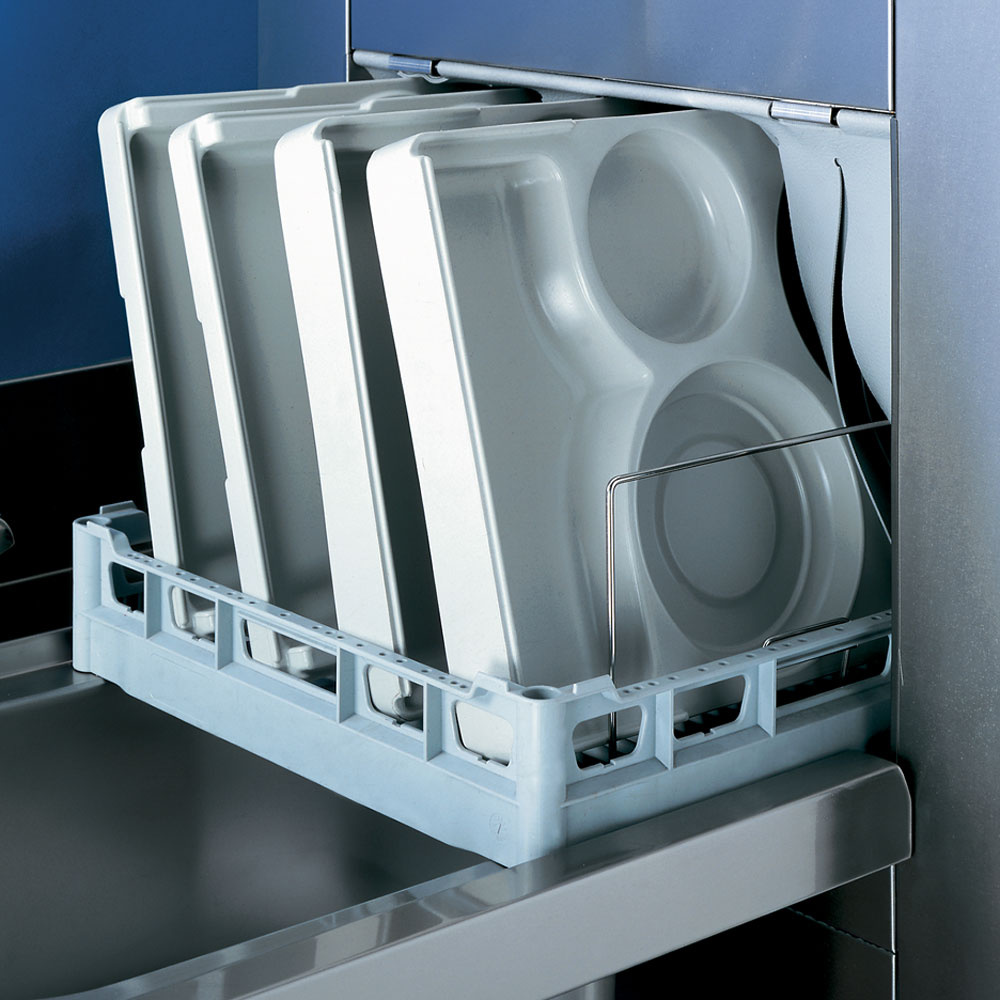

- Entry height of the washing chamber is 450 mm, allowing washing of plates, GN containers, trays, and bulkier kitchen utensils.
WASHING ZONE
- Washing zone is equipped with a deep-drawn stainless steel tank with a capacity of 70 L, made of AISI 304 stainless steel.
- Operating water temperature during washing is 60 °C.
- Heating of the washing tank with an output of 10.5 kW ensures a stable washing process.
RINSING ZONE
- Rinsing carried out in a separate machine section to ensure final hygienic treatment of dishes.
- Water for rinsing heated to 85 °C to comply with HACCP hygiene requirements.
- System configured as a multiple fresh-water rinse to maintain constant rinsing quality.
- Water consumption during rinsing reaches 160 L per hour in continuous operation.
ATMOSPHERIC BOILER AND BREAK TANK
- Dishwasher is equipped with a stainless steel atmospheric boiler with a capacity of 17 L and thermal insulation.
- Standard boiler heating output is 9.5 kW with a water inlet temperature of 50 °C.
- With a cold water inlet temperature of 10 °C, the heating output can be increased up to 16 kW, or up to 12 kW when using the DCM-R/7 heat recovery unit.
- Appliance includes an integrated break tank system that prevents water from flowing back into the distribution system.
CONSTRUCTION AND HYGIENE
- Entire construction is made in a double-skin design from AISI 304 stainless steel with thermal and acoustic insulation.
- Deep-drawn tanks with rounded corners, smooth internal surfaces without sharp edges, and removable stainless steel filters significantly facilitate cleaning and maintenance.
- Stainless steel washing and rinsing arms are removable without the use of tools.
- Operating noise level is below 70 dB.
CONTROL AND SAFETY
- Operation is controlled via a waterproof digital Soft Touch control panel displaying the washing tank temperature (60 °C) and rinse water temperature (85 °C).
- Control system features automatic fault diagnostics that continuously monitors operating status and indicates detected faults directly on the control panel.
- Appliance operates with a low control voltage of 24 V and is equipped with a safety thermostat.
- Equipment includes pump protection, a limit safety switch, and an automatic shut-off system when doors are opened or foreign objects are detected in the washing system.
SUPPLIED ACCESSORIES
- Delivery includes two plate baskets, one universal basket, and one cutlery basket.
- Package includes a filling hose and a drain hose.
- Electrical power supply cable is not included.
TRACTION LINE PLUS
- TRACTION LINE PLUS range is designed for operations with higher requirements for performance, hygiene, and process stability.
- Compared to the standard TRACTION LINE range, it offers a more powerful hydraulic system, more precisely controlled rinsing, a higher hygiene reserve, and improved readiness for long-term operation.
Optional accessories
- Detergent and rinse aid dispenser.
- Increased boiler output for cold water supply at 10 °C.
- Straight tunnel dryer.
- Corner tunnel dryer 90°.
- Heat recovery and condensation unit.
- Extraction system (recommended if the DCM-R/7 heat recovery and condensation unit is not installed).
- Emergency stop switch.
- Inlet and outlet stainless steel tables in various dimensions.
