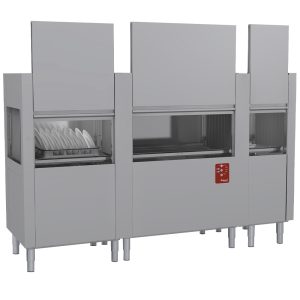

RACK CONVEYOR DISHWASHER DATIC37E/7
- Conveyor basket dishwasher DATIC37E/7 designed for continuous dishwashing in high-volume operations.
- Equipped with independent pre-wash zone and three-speed conveyor system ensuring stable performance under heavy workload.
- Capacity reaches 270 baskets per hour at maximum speed, 200 baskets per hour at medium speed and 140 baskets per hour at minimum speed.

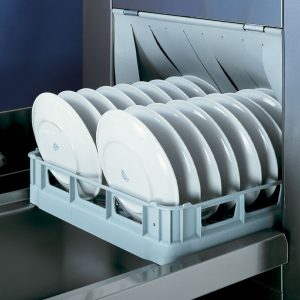

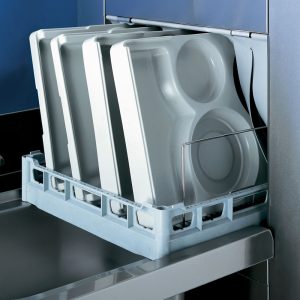

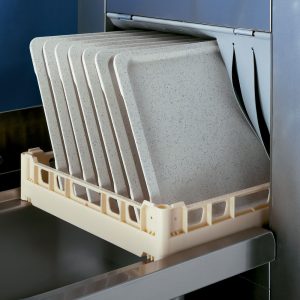

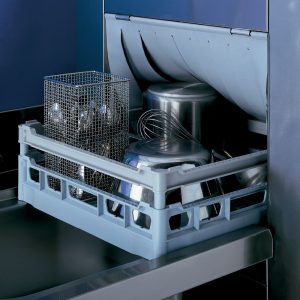

- Designed for standard 500 × 500 mm baskets with 450 mm entry height allowing washing of plates, GN containers, trays and bulky kitchen utensils.
- Configuration with left entry and right exit in basket flow direction.
PRE-WASH ZONE
- Independent 70 L pre-wash tank removes heavy soil before main washing phase.
- Operating temperature 45 °C.
- Pre-wash pump 1500 W ensures uniform water distribution and reduces load on main wash section.
WASH ZONE
- Deep-drawn 70 L wash tank manufactured from AISI 304 stainless steel.
- Operating temperature 60 °C. Tank heating output 10.5 kW maintains stable washing conditions.
- Wash pump 2700 W provides high washing intensity.
RINSE ZONE
- Final rinse at 85 °C in compliance with HACCP standards.
- Water consumption 220 L per hour during continuous operation.
ATMOSPHERIC BOILER AND BREAK TANK
- Stainless steel atmospheric boiler 17 L with thermal insulation.
- Standard heating output 12.5 kW at 50 °C water supply.
- Heating power can increase up to 22 kW with 10 °C cold water supply or 15 kW when DCM-R/7 heat recovery unit is installed.
- Integrated break tank system prevents backflow into water distribution network.
CONSTRUCTION AND HYGIENE
- Double-skin construction made of AISI 304 stainless steel with thermal and acoustic insulation.
- Deep-drawn tanks with rounded corners, smooth internal surfaces and removable stainless steel filters facilitate cleaning and maintenance.
- Washing and rinsing arms removable without tools.
- Noise level below 70 dB.
CONTROL AND SAFETY
- Waterproof digital Soft Touch control panel displays wash and rinse temperatures.
- Control system includes automatic fault diagnostics.
- Low voltage control 24 V, safety thermostat, door safety switch and automatic shutdown system integrated.
SUPPLIED ACCESSORIES
- Two plate baskets, one universal basket and one cutlery basket included.
- Filling hose and drain hose included.
- Power supply cable not included.
TRACTION LINE PLUS
- TRACTION LINE PLUS range designed for operations with high demands on performance, hygiene and process stability.
- Compared to standard range, provides more powerful hydraulic system, more precisely controlled rinsing and higher hygienic reserve during long-term operation.
OPTIONAL ACCESSORIES
- Detergent and rinse aid dispenser DDL-Y.
- Increased boiler output for cold water supply 10 °C DRC-W/7.
- Straight tunnel dryer DSM-A/7.
- Corner tunnel dryer 90° DSM90-7.
- Heat recovery unit DCM-R/7.
- Extraction system DMA-E/7.
- Emergency switch SCP-7.
- Corner pre-wash unit DRL-P/7.
