Menu Categories
  • ELEK.KIPPBRATPFANNE  60L    E7/BRI8-N

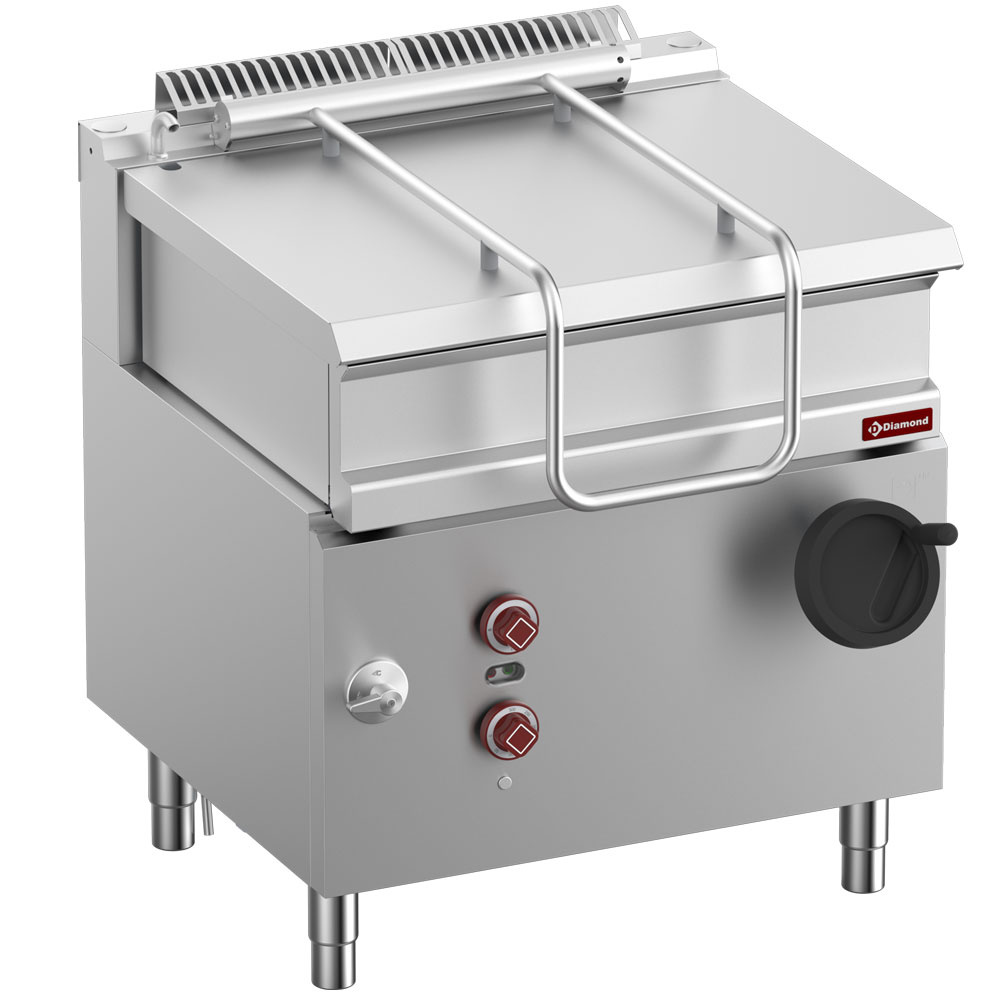

ELECTRIC BRATT PAN  60 L   E7/BRI8-N

Tank dimensions 710 x 480 x 150 mm, surface 34 dm2. Manual tilt by hand wheel. Made in stainless steel AISI 304, adjustable feet in stainless steel. Top (15/10 mm) in stainless steel AISI 304.

Manufacturer:

Available in

2-3 days

Dimensions (mm)

800 x 700(730) x 850/920

Power (kW)

9

Power supply

400-230/3N 50-60Hz

Weight (kg)

115

Volume (m3)

0,83

Series

Diamond Silver

Quality class

Top class

Packaging of goods

On a pallet with protective foil covering

Warranty

12 months

Country of origin

Italy

HS code:
84198998

3 355

excluding VAT

ELECTRIC BRATT PAN  60 L   E7/BRI8-N

  • Tank dimensions 710x480xh150 mm, surface 34 dm2.
  • Tank tilting by manual handwheel.
  • Made of stainless steel AISI 304, stainless steel adjustable feet.
  • Top (15/10 mm) in stainless steel AISI 304, IPX5 water resistance.
  • Rear chimney in stainless steel AISI 304.
  • Hinged top cover with stainless steel ‘torsion spring’ for gradual opening and closing, with ergonomic stainless steel front handle.

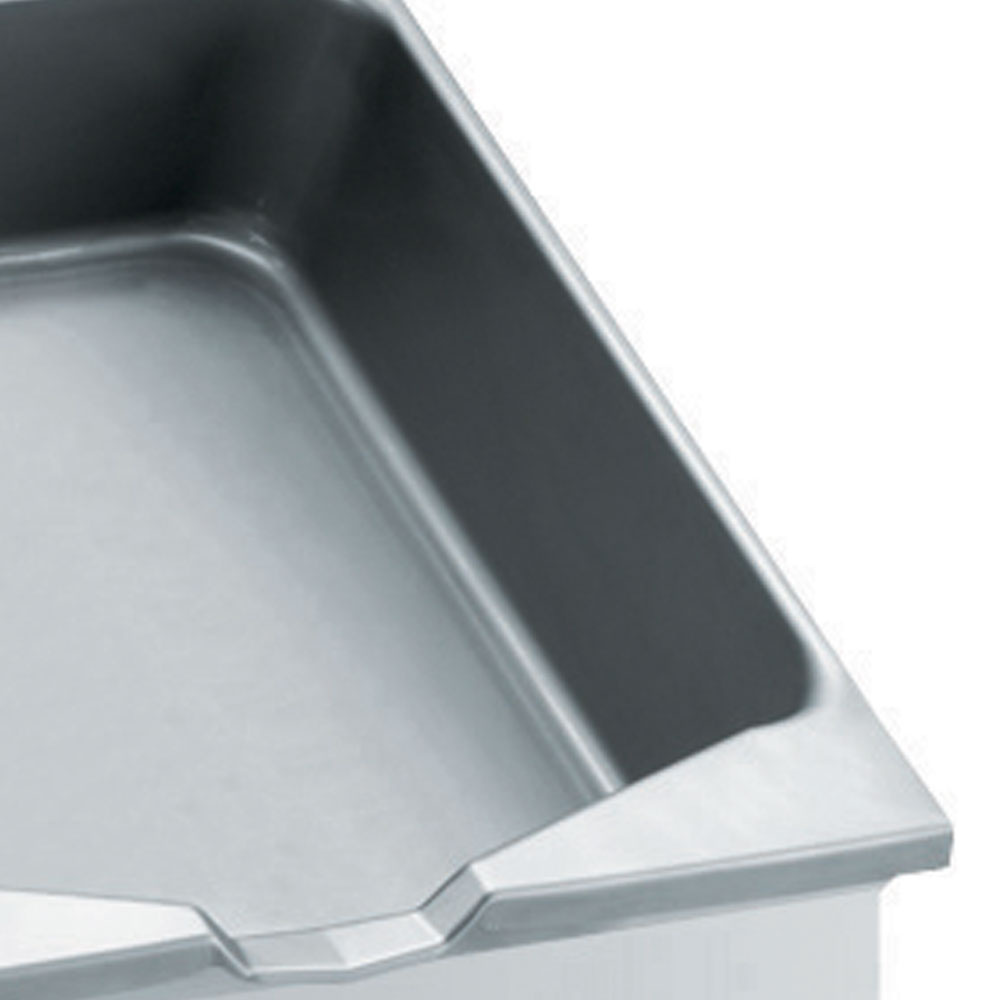

  • Tilting tank made of AISI 304 stainless steel (13 mm) with high thermal conductivity and rounded corners for easy, hygienic maintenance.

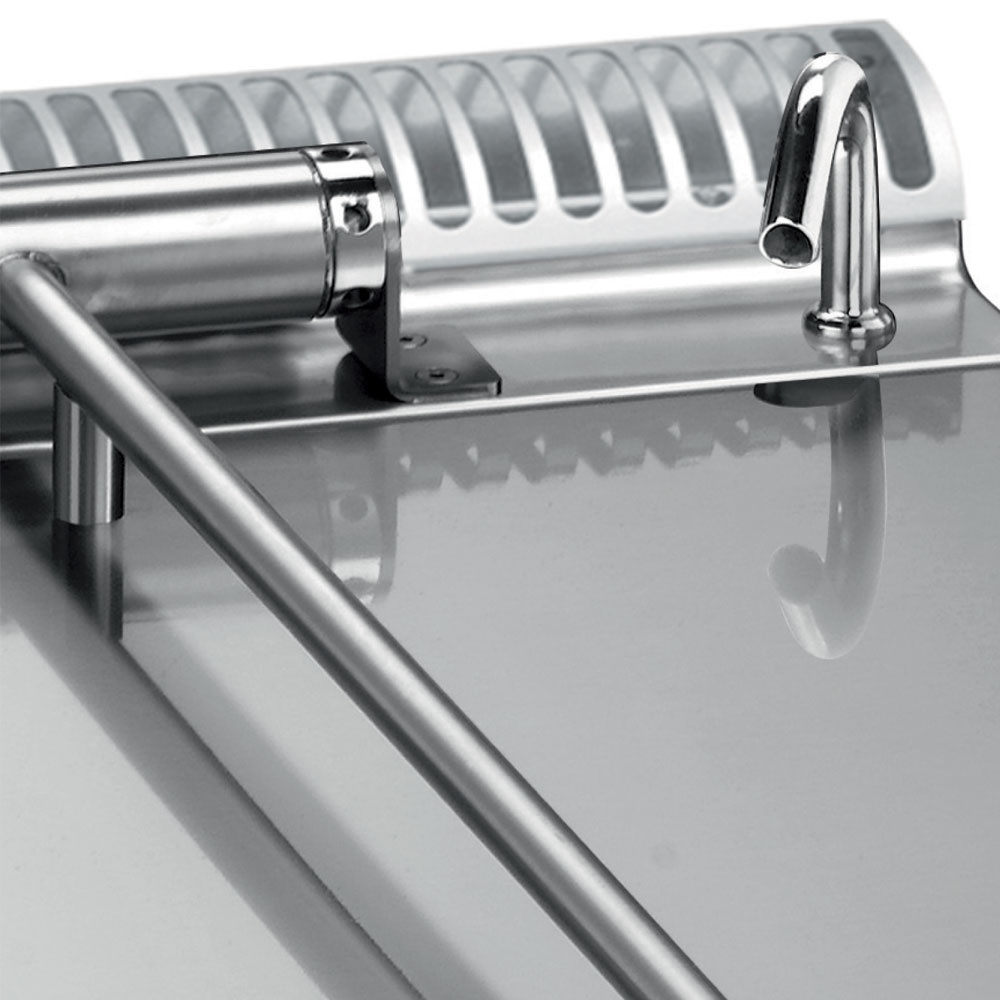

  • A water tap for filling is fitted to the top, with the control positioned on the front panel.
  • Electric heating by means of armoured stainless steel heating elements positioned underneath the tank (even cooking over the entire surface of the tank).
  • Temperature control from 50°C to 300°C, by thermostat, with front access for easy maintenance.
  • The tank is made of stainless steel AISI 304 (18/10 mm) with high thermal conductivity, allowing frying, baking, roasting, etc and even allowing to boil with water with complete peace of mind!
  • When tilting the tank, the special design allows transfering the food in complete safety, and it’s also 100% hygienic to clean.

THE+

  • Possibility of 700+700 “BACK to BACK” or in combination with the new OPTIMA 900 EVO 700+900 range.
  • Upper tablet in 15/10 mm thick AISI 304 stainless steel, front edge with drip stop, deep-drawn, watertight tops, rounded corners on the inside of the tanks, ‘high technology’ quality components.
  • A perfect finish, with attention to detail and superb design. A perfect alignment and easy “HEAD to HEAD” module connection.



Available in

2-3 days

Dimensions (mm)

800 x 700(730) x 850/920

Power (kW)

9

Power supply

400-230/3N 50-60Hz

Weight (kg)

115

Volume (m3)

0,83

Series

Diamond Silver

Quality class

Top class

Packaging of goods

On a pallet with protective foil covering

Warranty

12 months

Country of origin

Italy

HS code
84198998
