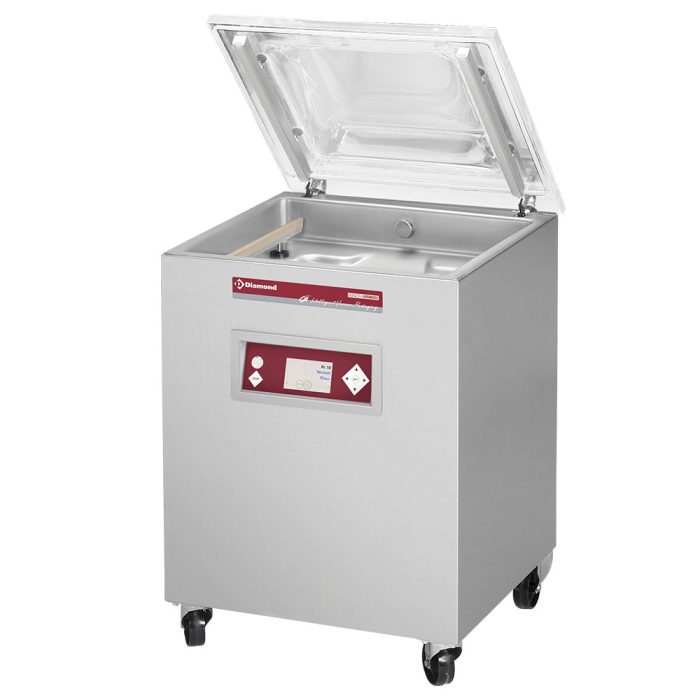

CHAMBER VACUUM PACKING MACHINE SC-120/IVP
- Chamber vacuum packing machine on wheels equipped with an IVP control system and a Busch oil-lubricated vacuum pump with a capacity of 63 m³/h.
- Approximate cycle time of 15–40 seconds.
- Construction designed for operation up to 8 hours per day.
- Large color LCD clearly displays each stage of the vacuum packaging process.
- Memory for 20 programs adapted to specific foods and packaging requirements.
- Programs can be configured directly through the control panel or on a computer and transferred via USB.
- Integrated sensor controls the vacuum level as a percentage or in mbar and automatically starts the next stage once the preset value is reached.
- IVP functions include multi-step vacuum, marinating, tenderizing and vacuum packing of preserving jars.
- Red Meat function uses short air pulses to limit degassing during sealing and helps prevent air bubbles inside the package.
- Individual access codes can be assigned to machine operators.
- Cycle records can be exported to a computer for process monitoring and HACCP documentation.
- Soft Air gradually returns air to the chamber, protecting delicate foods and vacuum bags from damage.
- Pump cleaning program removes accumulated moisture and helps prevent corrosion.
- Automatic service notification indicates when scheduled maintenance is required.
- Deep-drawn AISI 304 stainless steel chamber measuring 600 × 475 × 200 mm with rounded corners and smooth surfaces.
- Two opposing removable seal bars, each 520 mm long, allow several vacuum bags to be closed during one cycle.
- Each seal bar creates a strong 3.5 mm double seal.
- Cut-off or wide seal configurations are available at no additional cost.
- Removable insert plates reduce the effective chamber volume and shorten vacuuming time when packing lower-profile food items.
- Transparent curved lid provides a clear view of the packaging process and opens with the assistance of gas struts.
- Working height of 900 mm simplifies loading and removing vacuum bags.
- Chassis with four swivel casters, two fitted with brakes, allows the machine to be repositioned as required.
- Optional features include Liquid Control, an inclined insert plate for liquids, MAP gas flush and a label printer.
- Manufactured in compliance with applicable EU standards.
