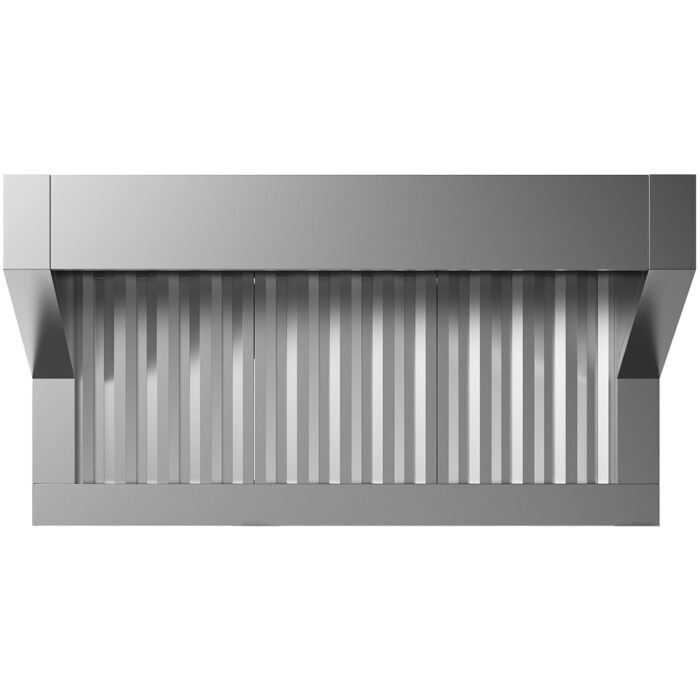

CONDENSATION HOOD FOR COMBI OVENS 6 & 10× GN 1/1 AC/HV6-10CV-X
- The condensation hood is designed for efficient extraction of steam and odours during combi oven operation, providing high user comfort and energy-efficient performance.
- All components and panels are made of high-quality AISI 304 stainless steel, ensuring long service life, easy maintenance, and maximum hygiene.
- The unit is equipped with a built-in fan that automatically regulates airflow according to the amount of steam generated.
- The fan features three automatic speeds: low with the doors closed and the damper closed, medium with the doors closed and the damper open, and high with the doors open.
- Front ventilation is activated when the combi oven door is opened and, thanks to direct connection to the combi oven software, fan output and odour absorption are automatically adjusted to actual operating conditions.
- The hood uses a multi-stage filtration system that ensures effective separation of steam and liquids.
- Pre-filtration is carried out through stainless steel labyrinth filters positioned at the front, followed by a condensation filter and a droplet separator that function as a steam-liquid separator.
- This system guarantees reliable extraction while delivering significant energy savings.
- The unit does not require any external exhaust ducting, thereby significantly reducing the investment costs for ventilation systems.
- The condensation hood is intended for installation on electric combi ovens 6 and 10 × GN 1/1 with longitudinal loading of GN containers.
- An automatic activation system triggered by door opening ensures optimal performance in all operating modes.
- Airflow capacity: 1200–1500 m³/h.
