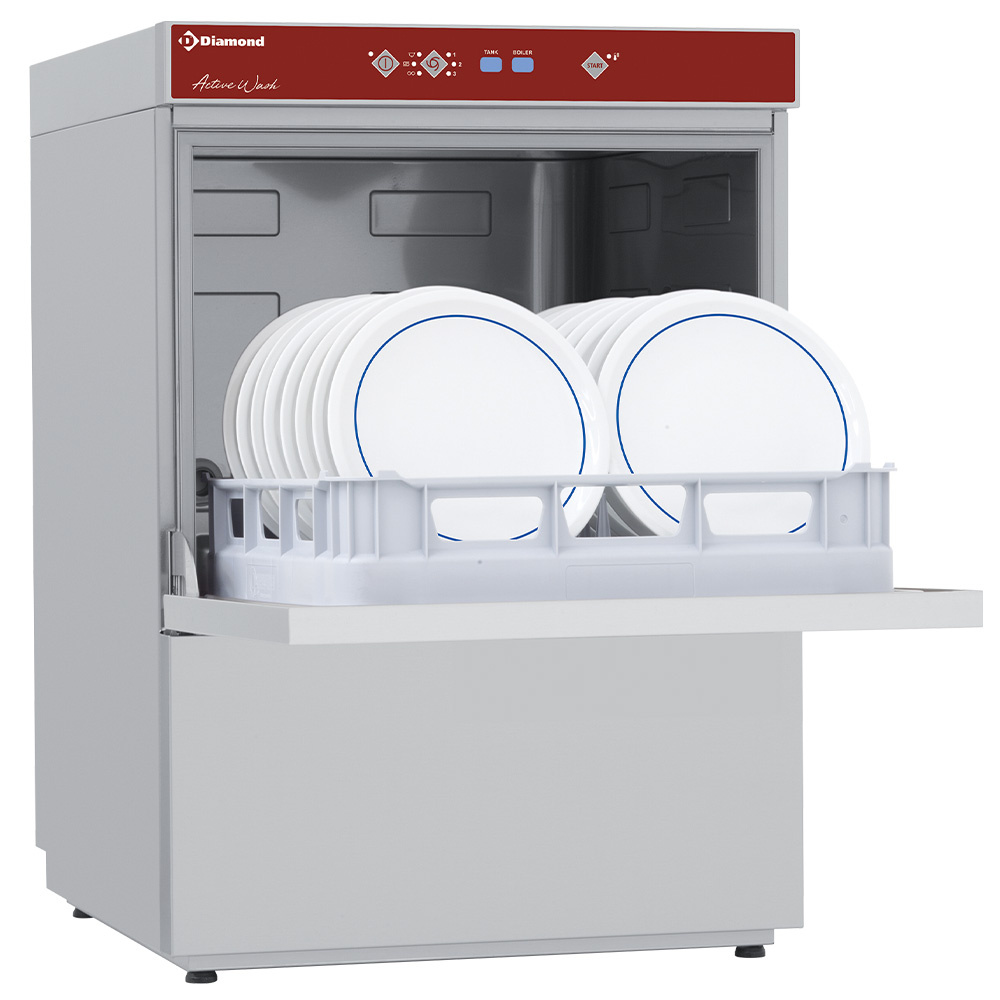

DISHWASHER D86/6B-AC
- Active Wash dishwasher in double-wall construction.
- Version with integrated continuous water softener (cold water connection).
- Break Tank system with AB-type backflow protection.
- Standard rinse booster pump (atmospheric boiler).
- Standard drain pump.
- 500 × 500 mm basket.
- Maximum plate height 390 mm.
- Capacity from 24 to 60 baskets/hour.
- Wash cycles: 60, 120 and 150 seconds.
- Upper and lower rotating wash and rinse arms, lower arms manufactured in stainless steel.
- Self-cleaning nozzles.
- Double-wall stamped door with removable gasket.
- Removable control panel.
- Automatic tank filling.
- Stamped basket guides without rough surfaces and limescale accumulation.
- Non-return valve.
- Hot water rinse.
- Stainless steel atmospheric boiler, 6 L capacity, 6 kW.
- Wash pump 230 V / 1N / 50 Hz.
- Microswitch stopping the cycle when the door is opened.
- Safety thermostat.
- Supplied with 2 baskets and 1 cutlery basket.
- Manufactured entirely in AISI 304 stainless steel.
PLUS

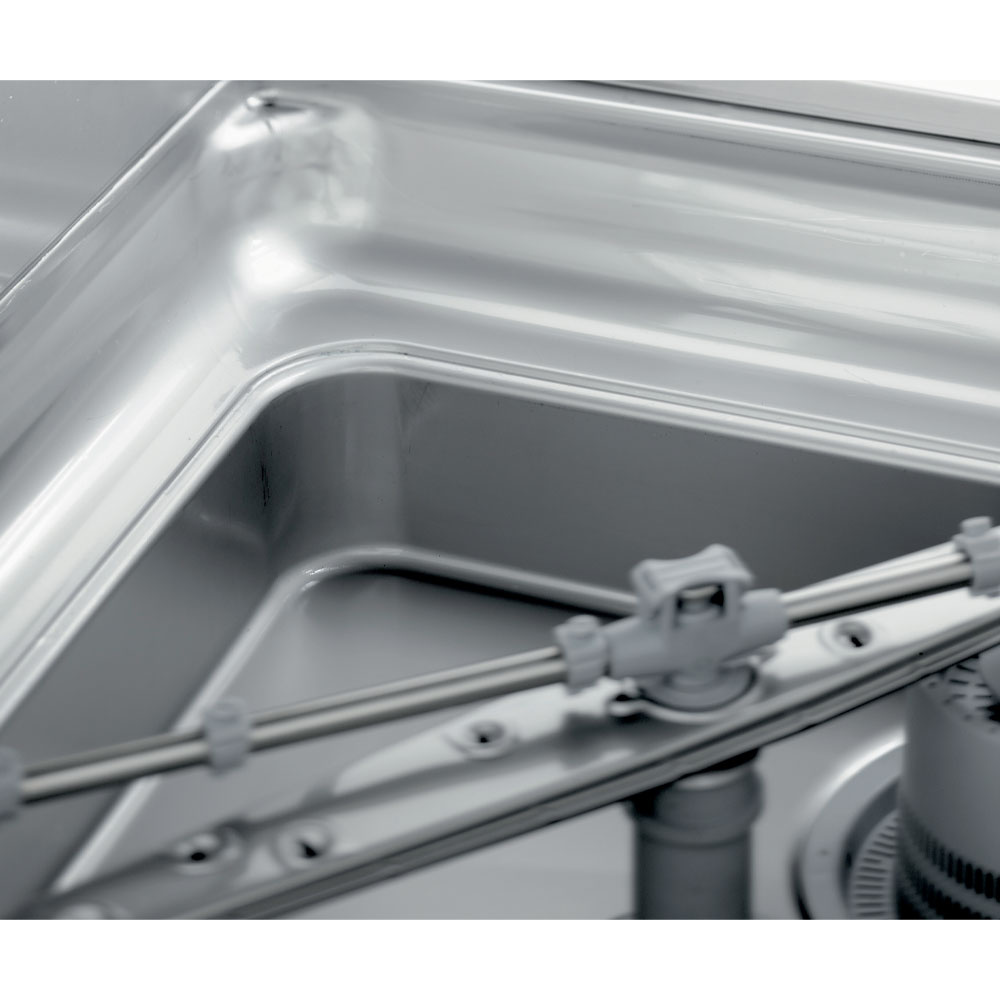

- Fully pressed tank, 15 L capacity, 2.1 kW.
- Integrated cast stainless steel tank filter.
- Peristaltic rinse aid dispenser supplied as standard.
- Optional peristaltic detergent dosing system.
- Patented pump filter keeps washing water cleaner for longer and at the correct temperature.
- High-efficiency wash pump with reduced energy consumption.
- CSD Soft Touch digital control panel.
- EED energy-saving function.
- TCD system ensuring rinsing temperature of 85 °C.
- DRD accelerated preheating phase.
- DID automatic diagnostic system.
- ADD display of tank and boiler temperatures in accordance with HACCP.
- CID Soft Contact automatic door closing system.
- Suitable for operation with reverse osmosis systems.
ADVANTAGE – CONTINUOUS WATER SOFTENER
- Integrated continuous water softener provides softened water at all times regardless of the number of wash cycles.
- No interruption of operation is required for resin regeneration.
- Regeneration takes place automatically during short micro-interruptions between wash cycles.
ADVANTAGE – BREAK TANK
- Break Tank system prevents backflow of detergent-contaminated water into the mains water supply.
- Ensures constant water pressure throughout the entire rinse cycle.
- Hygiene and rinse quality are guaranteed by a constant 85 °C rinse temperature until the last drop of water.
ADVANTAGES
- Patented filtration system and high-efficiency wash pump reduce water, energy and detergent consumption.
- Reduced tank volume allows faster heating and lower operating costs.
- Advanced technologies ensure consistent washing performance and long-term reliability.
