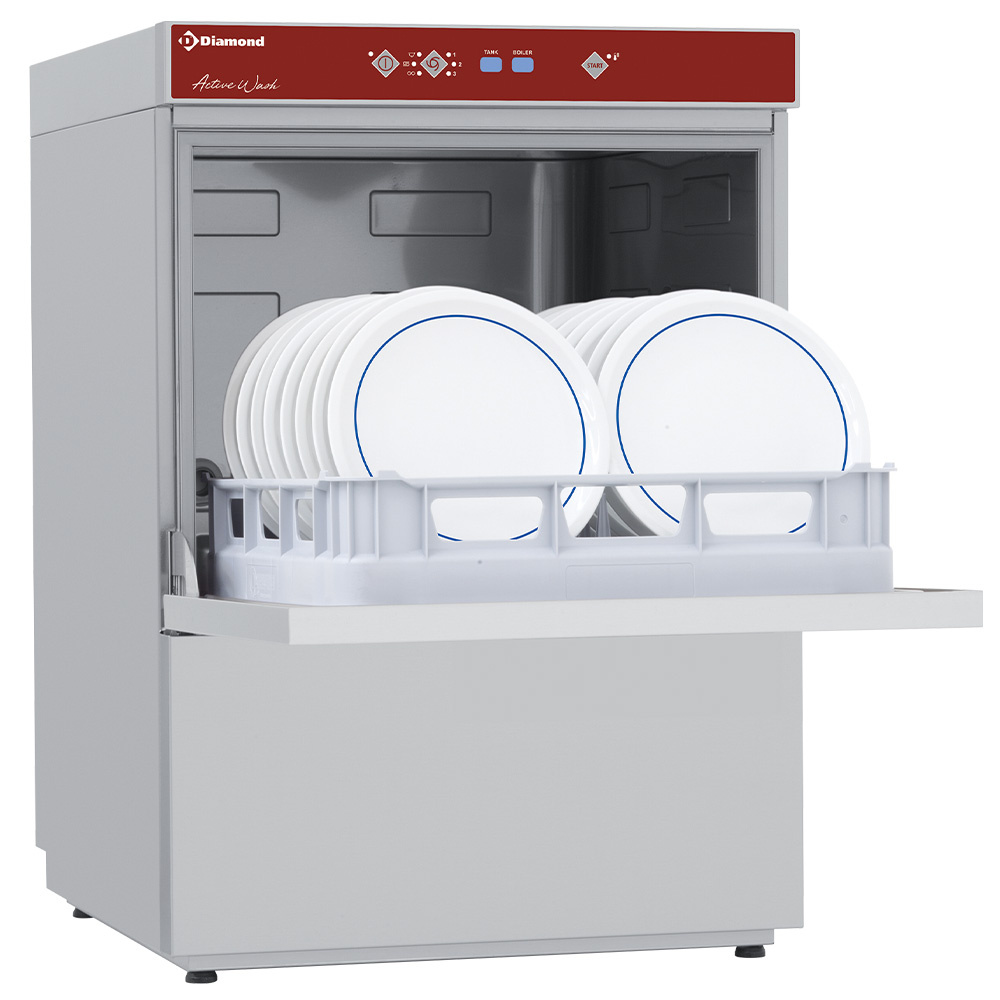

DISHWASHER D86/6B
- Realisation “double walled”.
- With anti-pollution device type AB (Break Tank), Including the rinsing pump (atmospheric boiler)
- Standard with disharge pump.
- Charging height dishes diam. 390mm (glass height 355mm)
- From 60 till 24 baskets/hour, cycles 60” – 120” – 150 ”.
- Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).
- Self cleaning sprinklers.
- Double wall door, “stamped”, “removable” waterproof seal.
- Removable control panel.
- Automatic filling of the tank.
- Stamped basket runners, no roughness and no limestone scale.
- Check valve. Hot water rinse, stainless steel boiler (6 Lit., 6 kW).
- Washing pump in 230V/1N 50Hz.
- Micro switch, when the door opens.
- Safety thermostat.
- Standard: 2 baskets, 1 goblet.
- Manufactured in stainless steel AISI 304.
PLUS:

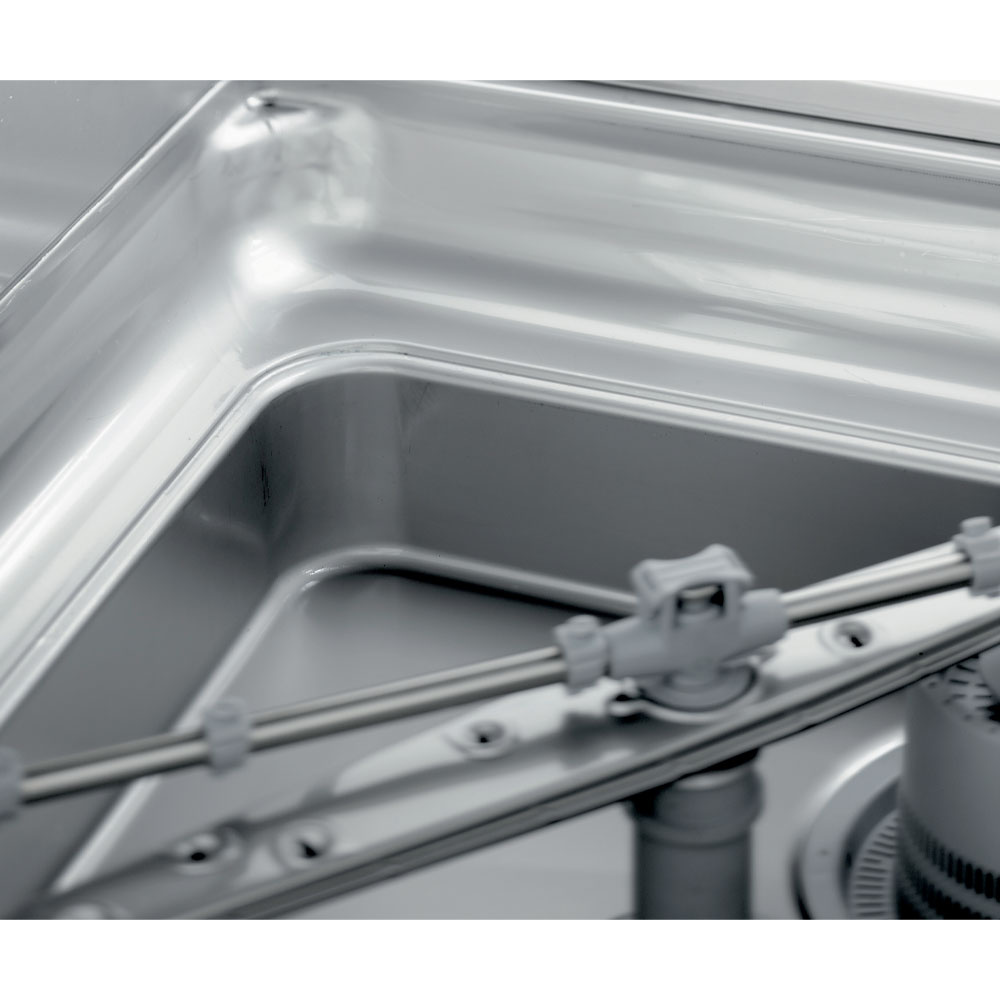

- Fully “pressed” tank (15 Lit., 2,1 kW).
- Stamped basket runners, no roughness and no limestone scale.

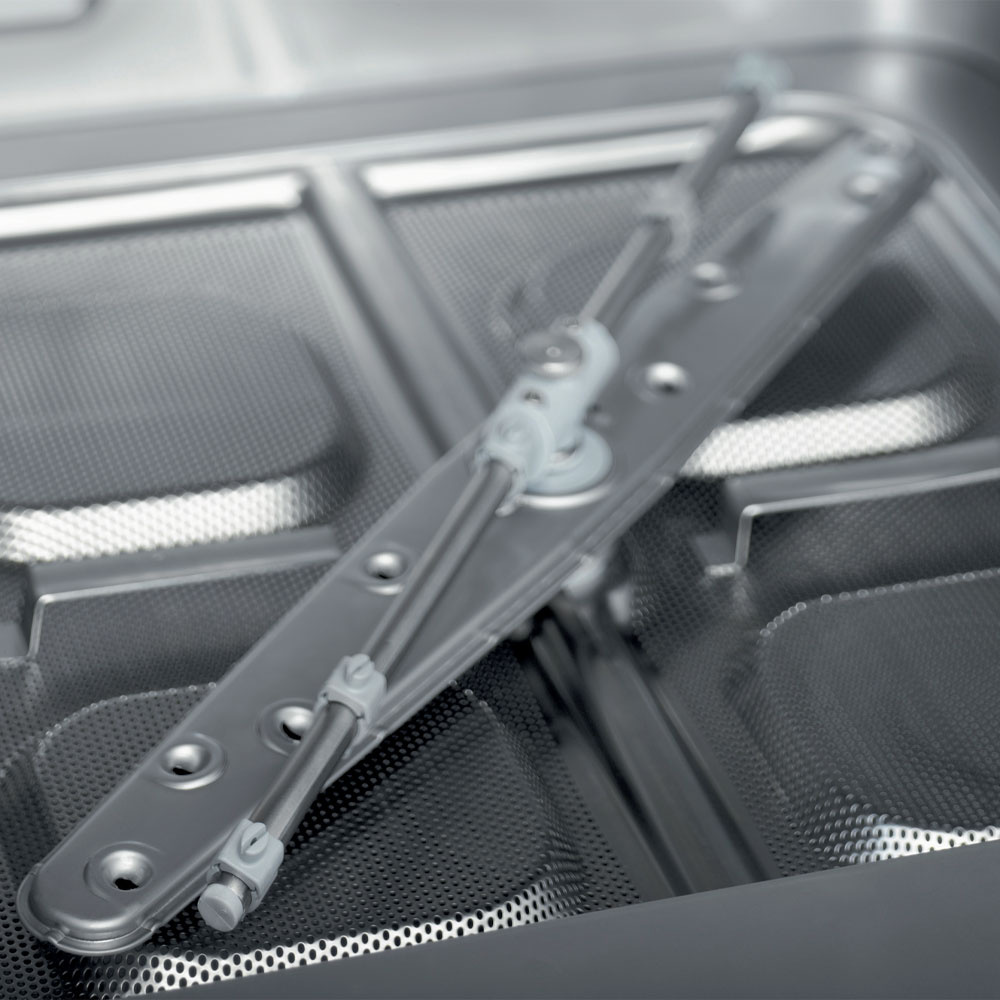

- “Integrated” tank’s filter in “cast” stainless steel.
- “Peristaltic” dispenser of rinse product supplied as standard.
- On request: “peristaltic” dosing kit of liquid detergent.
- “Patented” pump filter allowing to conserve the washing water longer and at good temperature.
- High output washing pump which guarantees high energy savings.
- CSD digital control panel (soft touch).
- EED energy saving.
- TCD Device which permits to always rinse at 85°C.
- DRD accelerated preheating phase.
- DID automatic diagnostic in case of problems.
- ADD display of boiler and tank temperature (HACCP conform)
- CID door with automatic closure (Soft Contact).
- NB: machines guaranteed for “osmosis” water supply.
ADVANTAGE – SAVE THE PLANET :
State-of-the-art technologies, energy-saving, energy-saving technologies, water and detergent, thanks to a more contained tank and its “patented” filter to keep the washing water at a good temperature , as well as a high efficiency wash pump (double flux).
BREAK TANK :
The “break tank” is an AB type “anti-pollution” device (UK standards) 1) It prevents the tank water (with detergents) to flow back into the distribution system 2) Its pump guarantees a constant pressure during the whole rinsing, the drying and hygiene are guaranteed by a T° of 85°C… until the last drop of water!
